8-bit USB Cost-Effective JM MCUs
The S08JM family extends NXP’s entry-level USB portfolio. Featuring on-chip USB 2.0 full-speed device support, it provides a fast, economical and easy way to standardize serial communications in industrial and consumer applications. All MCUs in the S08JM family use the enhanced S08 core. Additionally, NXP® provides two complimentary USB software stacks to help designers simplify applications with USB functionality: USB-LITE Stack by CMX and the USB-MINI Stack by NXP.
Product Details

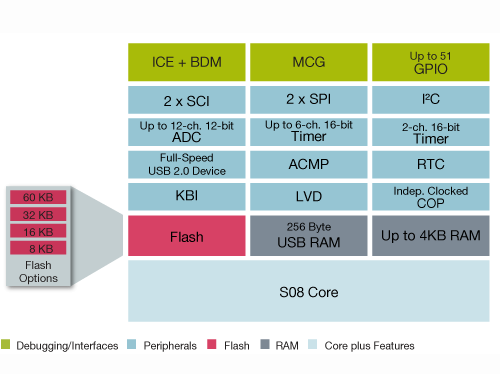

Block Diagram
Features
8-bit HCS08 Central Processing Unit (CPU)
- Up to 24 MHz internal bus (48 MHz HCS08 core) frequency offering 2.7 to 5.5V across temperature range of -40°C to +85°C
- Support for up to 32 peripheral interrupt/reset sources
On-Chip Memory
- Up to 60K flash read/program/erase over full operating voltage and temperature
- Up to 4K RAM
- 256 Byte USB RAM
Power-Saving Modes
- Wait plus two stop modes
- Multi-purpose clock generator (MCG)
Peripherals
- USB Device Module
- Analog comparators (ACMP)—Analog comparator with option to compare to internal reference
- Analog to digital converter (ADC)—12-channel, 12-bit resolution
- Two serial communications interface (SCI) modules offering asynchronous communications
-
I²C with up to 100 kbps maximum bus
loading
- multi-controller operation
- programmable target address
- interrupt driven byte-by-byte data transfer
- supports broadcast mode and 10-bit addressing
-
SPI—Two serial peripheral interfaces with full-duplex or
single-wire bidirectional
- double-buffered transmit and receive
- leader or follower mode;
- MSB-first or LSB-first shifting
- Timer pulse width modulation (TPM)—Up to eight channels
Input/Output
- Up to eight keyboard interrupt (KBI) pins with selectable polarity
- 51 general-purpose input/outputs (GPIO) and one input-only and one output-only pin
System Protection
-
Watchdog computer operating properly (COP) reset
- option to run from dedicated 1 kHz internal clock source or bus clock
-
Low-voltage detection with reset or interrupt
- selectable trip points
- Illegal op code detection with reset
- Flash block protection
Hardware Development Support
- Single-wire background debug interface
- Breakpoint capability
- On-chip in-circuit emulator (ICE) debug module
Related products
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-10 of 49 documents
Compact List
Application Note (19)
Application Note Software (5)
-
Software files for AN4511[AN4511SW]
-
AN4378 Software files[AN4378SW]
-
Software for AN4368[AN4368SW]
-
Accompanying SW for AN3564[AN3564SW1]
-
JM60 Bootloader[AN3561SW]
Brochure (2)
-
Controller Continuum Brochure[BRCONTINUUMCONTR]
-
NXP’s Controller Continuum USB solutions[BRCTRLCTNUSBSOL]
Data Sheet (2)
-
MC9S08JM60, MC9S08JM32 - Data Sheet[MC9S08JM60]Featured
-
MC9S08JM16, MC9S08JM8 - Data Sheet[MC9S08JM16]Featured
Errata (2)
-
Mask Set Errata: 0M36H - Errata[MSE9S08JM60_0M36H]
-
Mask Set Errata: 6M61J - Errata[MSE9S08JM16_6M61J]
Fact Sheet (2)
-
MC9S08JM60, 8-bit USB microcontroller - Fact Sheet[MC9S08JM60FS]Featured
-
MC9S08JM16 8-bit USB microcontroller - Fact Sheet[MC9S08JM16FS]Featured
Product Brief (1)
-
MC9S08JM60PB[MC9S08JM60PB]
Product Change Notice (2)
Quick Reference Guide (1)
-
DEMOJM Lab Supplement for the 8-bit Flexis®™ JM60[DEMO9S08JM60LAB]
Reference Manual (6)
-
USB Stack Host API Reference Manual[USBHOSTAPIRM]
-
NXP® Medical Connectivity Library API - Reference Manual[MEDCONLIBAPIRM]
-
HCS08 Family Reference Manual[HCS08RMV1]
Reliability and Quality Information (3)
-
VDE IEC 60730 Class B test report for the MC9S08 MCU[VDE_S08_CLASSB_TEST_REPORT]
-
Tuev IEC 60730 SRAM test certificate for MC9S08 controller[TUEVCERTIFICATIONWALKPATRAM]
-
Tuev IEC 60730 CPU test certificate for MC9S08 controller[TUEVCPUCLASSCCERT]
Supporting Information (1)
-
DEMO9S08JM16 LAB Supplement[DEMO9S08JM16LAB]
User Guide (3)
-
USB Stack Users Guide[USBUG]
-
NXP® USB Stack Host Users Guide[USBHOSTUG]
-
Medical Connectivity Library - User’s Guide[MEDCONLIBUG]
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 11 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
Active -

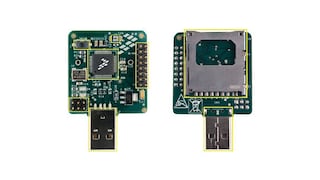

Evaluation and Development BoardsFlexis JM Demonstration BoardFeatured
