S08LL|Segment LCD LL MCUs

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The S08LL 8-bit segment LCD microcontroller family is ideal for battery-powered applications such as medical diagnostics or handheld appliances. The S08LL family extends battery life with comprehensive low-power technology, speeds development time and eliminates excess cost with its complete tower ecosystem.

Data Sheet

Reference Manual

Product Details

Block Diagram

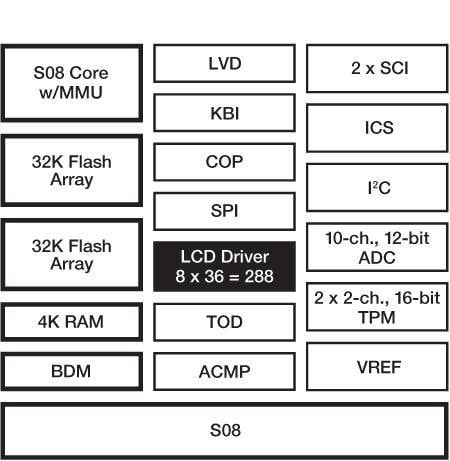

S08LL Microcontroller Block Diagram

Get diagram PDF

Features

S08 Central Processor Unit (CPU)

Up to 40 Mhz CPI at 3.6V to 2.1V
Up to 20 MHz CPU at 2.1V to 1.8V across temperature range of -40°C to +85°C
HCS08 instruction set with added BGND instruction

Enablement and Development Support

Low-cost, reconfigurable Tower® evaluation and demonstration platform
Breakpoint capability
ICE debug module
- three comparators and nine trigger modes
- Eight deep FIFO for storing change-of-flow addresses and event-only data
- supports both tag and force breakpoints.
Migration path from smaller flash size devices (LL16)

Power-Saving Features

Two ultra-low-power stop modes, one of which allows limited use of peripherals
New low-power run and wait modes
6 µs typical wake-up time from stop mode
Internal clock source (ICS) module containing a frequencylocked loop (FLL) controlled by internal or external reference
Ultra-low-power oscillator (OSC)
Clock gating disables clocks to unused peripherals

LCD Driver and Internal Charge Pump

Integrated LCD driver supports both standard 3V and 5V LCD glass
Configurable display for 8 x 36 or 4 x 40 segment display
Low-power blinking mode
Internal charge pump
Front plane (FP) and back plane (BP) re-assignments
Capable of running in STOP3 and STOP2 mode
LCD driver pins are muxed with GPIO and other functions

On-Chip Memory

Up to 64 KB flash compromised of two separate arrays to facilitate read/program/erase over full operating voltage and temperature
1.8V to 3.6V RAM

Peripherals

Analog-to-digital converter (ADC)
- Up to 10-channel
- 12-bit resolution
- 2.5 µs conversion time
- Automatic compare function
- Internal temperature sensor
- Internal bandgap reference channel
- Operation in stop mode
Timer
- Two 2-channel (TPM1 and TPM2)
- Selectable input capture
- Output compare
- Buffered-edge or center-aligned PWM on each channel
Two serial communications interfaces (SCI) modules
- Asynchronous communications
- 13-bit break option
- Flexible baud rate generator
- Double buffered transmit and receive and optional HW parity checking and generation
Time of day (TOD) 8-bit
- Quarter second counter with match register
- External clock source for precise time base
- Calendar
- Task scheduling functions
Serial peripheral interface (SPI) module
- Full-duplex or single-wire bidirectional
- Double-buffered transmit and receive leader or follower mode
- MSB-first or LSB first shifting
I²C with up to 100 kbps with maximum bus loading
- Multicontroller operation
- Programmable target address
- Interruptdriven byte-by-byte data transfer
- Support for broadcast mode and 10-bit addressing

Input/Output

Up to 39 general purpose input/output (GPIO)
Two output-only pins
Eight keyboard interrupt (KBI) pins with selectable polarity

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low-voltage detection with reset or interrupt, selectable trip points
Illegal op code and illegal address detection with reset
Flash block protection

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Printed Circuit Boards and Schematics
DEMO9S08LL16 AXM-0428

PDFRev AJan 28, 2009 00:00:00231.4 KBDEMO9S08LL16_SCH_B
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
DEMO9S08LL16 AXM-0428

PDFRev BFeb 19, 2009 00:00:00231.8 KBDEMO9S08LL16_SCH_B_1
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 6 hardware offerings

Emulators, Probes, and Programmers
Universal Multilink Development InterfaceFeatured
Active

UMultilink
Evaluation and Development Boards

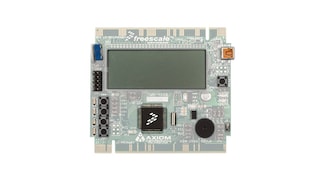

MC9S08LL 8-bit Segment LCD Tower System ModuleFeatured
Active

TWR-S08LL64
Evaluation and Development Boards

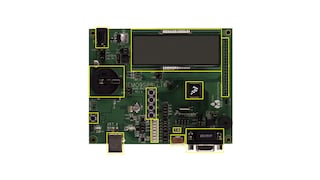

S08LL Demonstration BoardFeatured
