S08PT|8-bit 5V Full-featured MCU with EEPROM and TSI

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The S08PT MCUs integrate key features like touch sensing interface (TSI), EEPROM, and a motor control flex timer to simplify design and to help reduce system cost. The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

Data Sheet

Reference Manual

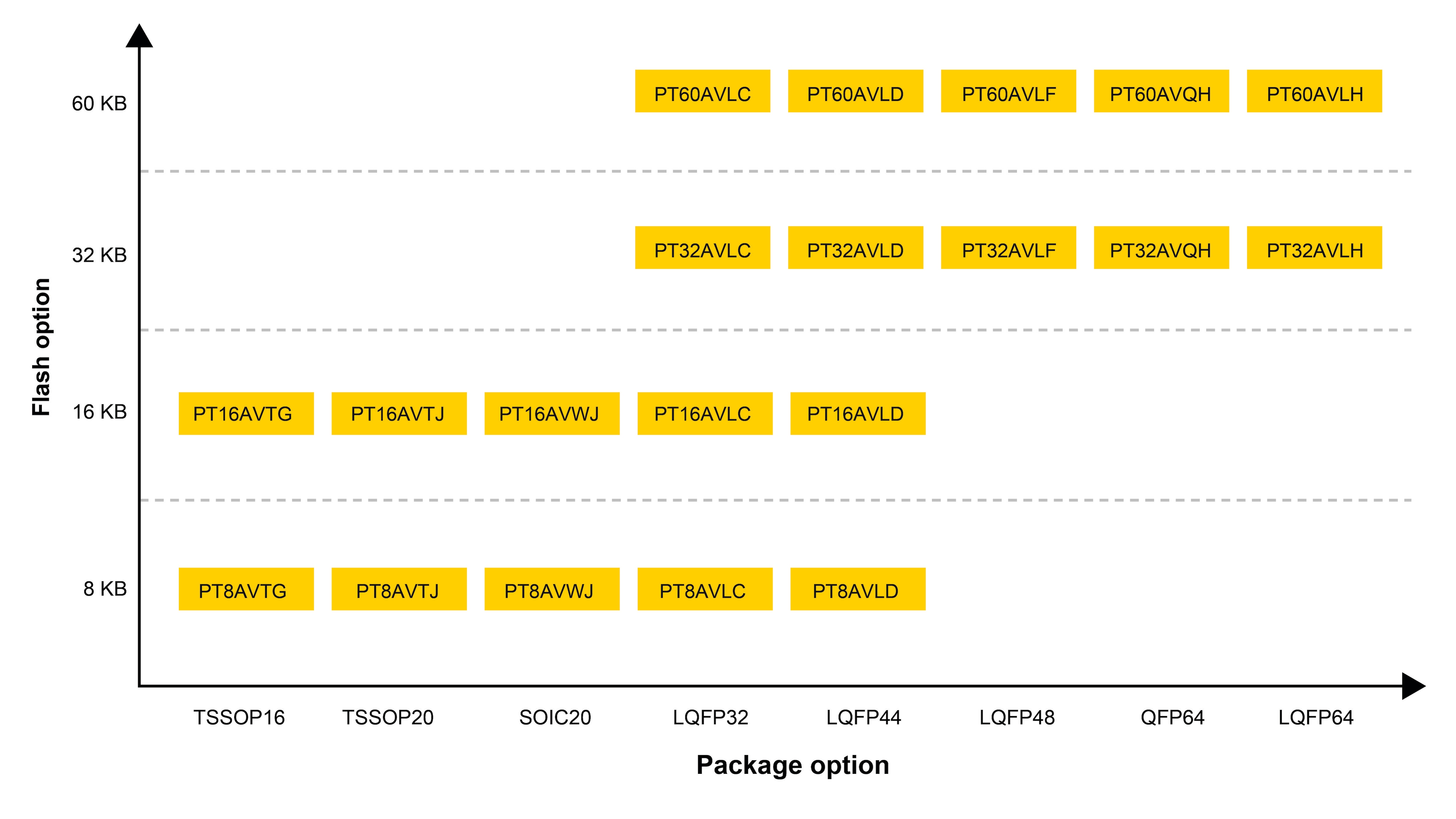

Product Details

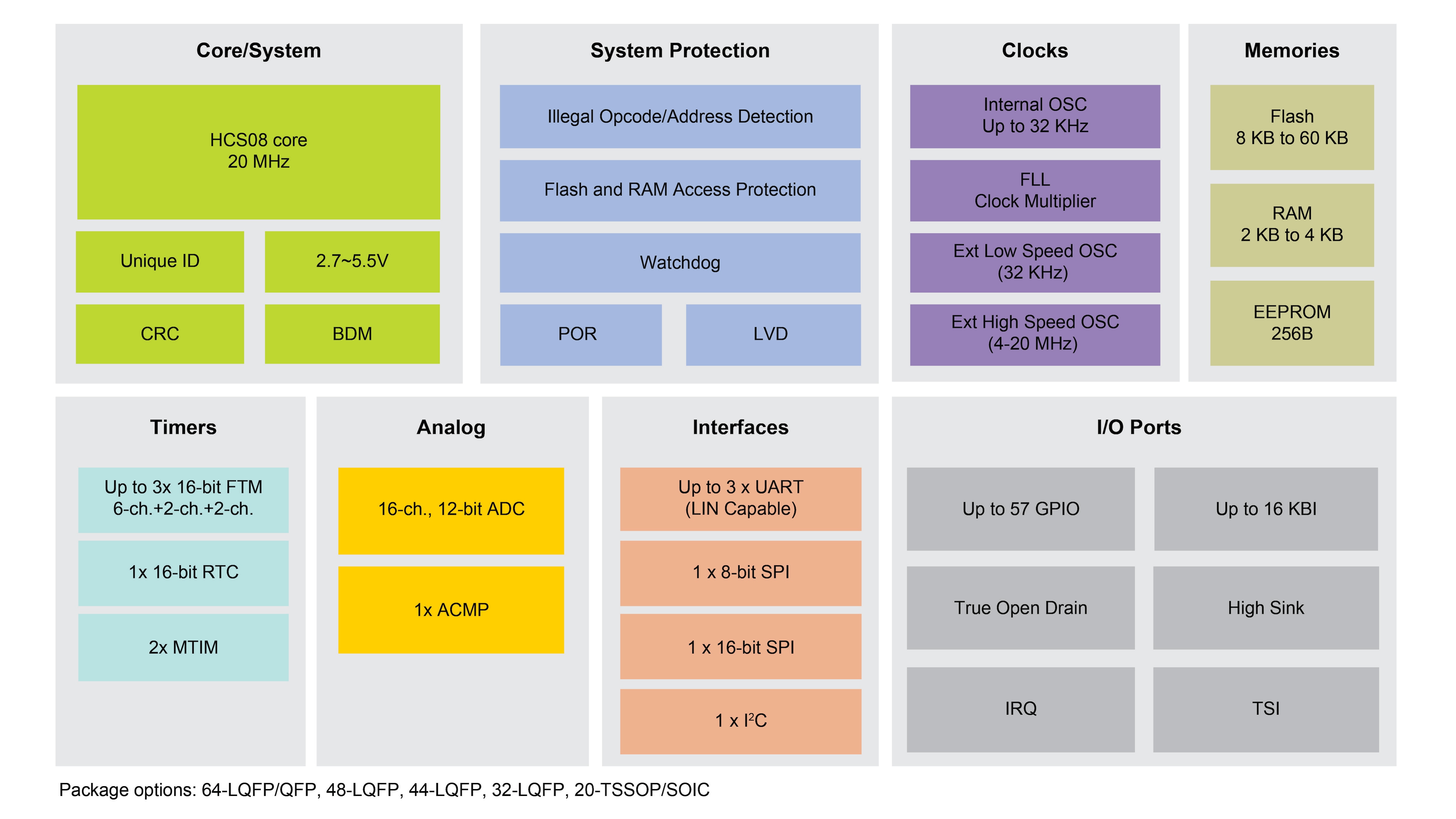

Block Diagram

MC9S08PT Series Block Diagram

Get diagram PDF

Features

Memory Combination

Increased flash/RAM ratio (4 KB RAM in PT60)
On-chip EEPROM with 500K~1M write/erase cycle

Robust GPIO and High Drive Capability

Up to 57 GPIO with filtering in 64-pin
Up to eight pins with 20 mA sink drive capability
Two pins with true open drain

16-ch. Touch-Sensing Interface

Dedicated hardware module to sense touch input, minimum software intervention
Functional in all power modes (run, wait and low-powerstop), wake up capable from the stop
Designed for operation in harsh environments with high sensitivity
Enhanced watchdog and programmable CRC
Highly configurable through hardware and software

Feature-Rich Integration

6-ch. + 2-ch. + 2-ch. FlexTimer: 2 x MTIM
Real-time counter
3 x SCI, 2 x SPI, I2C
Enhanced watchdog and programmable CRC
High accuracy internal clock

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Receive the full breakdown. See the product footprint and more in the eCad file.

Hardware

Quick reference to our board types.

1-5 of 6 hardware offerings

Emulators, Probes, and Programmers
Universal Multilink Development Interface
Active

UMultilink
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface
Active

U-MULTILINK-FX
Emulators, Probes, and Programmers
PEmicro Cyclone programmer
Active

CYCLONE
Evaluation and Development Boards
S08P-Lite Evaluation Board

S08P-LITE
Evaluation and Development Boards
S08P MCUs Evaluation Kit

S08PT60-EVK

Show All

Software

Quick reference to our software types.

3 software files

Configuration Tools
Processor Expert^® Software – Component Development Environment v1.0.4

Download Options
HMI Design Software
Touch-Sensing Software

Download Options
Development IDEs and Build Tools
CodeWarrior^® for MCUs (Eclipse IDE) - ColdFire^®, 56800/E DSC, Qorivva^® 56xx, RS08/S08, S12Z - 11.1

Download Options

Note: For better experience, software downloads are recommended on desktop.

Engineering Services

To get further assistance directly from NXP, please see our Engineering Services.

1 engineering service

Independent Design House (IDH)
EMI/EMC Assessment and compliance

By Bluewind GoldHQ: Castelfranco Veneto, ItalySupporting Regions: EMEA

To find additional partner offerings that support this product, visit our Partner Marketplace.

8-bit 5V Full-featured MCU with EEPROM and TSI

Product Details

Block Diagram

MC9S08PT Series Block Diagram

Features

Memory Combination

Robust GPIO and High Drive Capability

16-ch. Touch-Sensing Interface

Feature-Rich Integration

Applications

Automotive

Consumer

Industrial

Buy/Parametrics

Documentation

Filter by

Application Note (14)

SCI Bootloader for S08PB16[AN12871]

GPIO Simulated I2C for S08[AN12841]

Using Touch Interface in Harsh Environments[AN5060]

Designing an Induction Cooker Using the S08PT Family - Application Note[AN5030]

AN2295: Developer's Serial Bootloader – Application Note[AN2295]

AN4587, ADC FIFO Application on the S08P Family - Application Notes[AN4587]

TSI module application on the S08PT family[AN4431]

Design Microwave Oven Using S08PT Family[AN4596]

Integrating Touch-Sensing Software (TSS) on TWR-S08DC-PT60[AN4578]

Understanding S08P Flash and EEPROM[AN4570]

How To Develop a Robust Software in Noise Environment[AN4463]

System Design Guideline for 5V 8-bit families in Home Appliance Applications[AN4476]

EMC Design Considerations for MC9S08PT60[AN4438]

AN4347, Transitioning Applications from S08AC and S08FL Family to S08PT Family[AN4347]

Application Note Software (1)

Software Files for AN4690[AN4690SW]

Data Sheet (2)

MC9S08PT16 Series Data Sheet[MC9S08PT16]

MC9S08PT60 Series Data Sheet[MC9S08PT60]

Errata (7)

Mask Set Errata for Mask 4N40C - Errata[S08PT60_4N40C]

Mask Set Errata for Mask 0N10J - Errata[S08PT16_0N10J]

Mask Set Errata for Mask 0N35F - Errata[S08PT16_0N35F]

Mask Set Errata for Mask 0N53H - Chip Errata[S08PT60_0N53H]

S08PT60_1N53H, Mask Set Errata for Mask 1N53H - Chip Errata[S08PT60_1N53H]

Mask Set Errata for Mask 2N10J[S08PT16_2N10J]

Errata report for PC9S08PT60 with mask set 2N40C[PC9S08PT60_2N40C]

Fact Sheet (1)

S08P, 5V 8-bit MCU Family - Fact Sheet[5VS08PFFS]

Product Brief (1)

MC9S08PT60 Series Family - Product Brief[MC9S08PT60PB]

Reference Manual (2)

MC9S08PT16 Reference Manual[MC9S08PT16RM]

MC9S08PT60 Reference Manual[MC9S08PT60RM]

Selector Guide (1)

S08 MCU Linecard[HSC08-LINECARD]
