The S08SH family is a series of S08 8-bit microcontrollers that offer a new low-end option for applications in the 5-volt range. The S08SH family is pin, tool and software compatible with S08SG, offering greater design flexibility. It also has wide peripheral offering with serial communications interface (SCI), serial peripheral interface (SPI), I²C, analog-to-digital converter (ADC), analog comparator and temperature sensor.

Data Sheet

Reference Manual

Product Details

Block Diagram

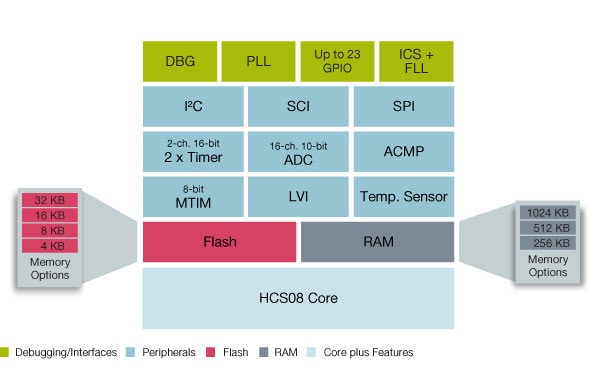

Freescale S08SH Microcontroller Block Diagram

Features

8-bit HCS08 Central Processor Unit (CPU)

Up to 40 MHz HCS08 CPU (20 MHz bus frequency) for 50 ns minimum instruction time
HC08 instruction set with added BGND instruction
Support for up to 32 interrupt/reset sources

Integrated Third-Generation Flash Memory and RAM

Embedded flash that is in-application reprogrammable
Fast, byte-writable programming, as fast as 20 µs/byte
Up to 100,000 write/erase cycles at typical voltage and temperature (10k minimum write/erase)
100 years typical data retention (15 years minimum)

Flexible Clock Options

Internal clock source (ICS) module containing a frequencylocked loop (FLL) controlled by internal or external reference
Precision trimming of internal reference allows typical 0.1 percent resolution and +0.5 percent to -1 percent deviation over operating temperature and voltage
Internal reference can be trimmed from 31.25 kHz to 39.065 kHz, allowing for 16 MHz to 20 MHz FLL output
Low-power oscillator module (XOSC)
- software selectable crystal or ceramic resonator range, 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz,
- supports external clock source input up to 40 MHz

Input/Output

Up to 23 bidirectional lines
One Output-Only Line
Outputs 10 mA each; 60 mA max for package
Software selectable pull-ups on ports when used as input
internal pull-up on reset and interrupt request (IRQ) pin
Software selectable slew rate control and drive strength on ports when used as output
8-pin keyboard interrupt module with software selectable polarity on edge or edge/level modes

Ganged Output Option for PTB (5:2) and PTC (3:0)

Allows single write to change state of multiple pins
Drives up to 80 mA without risk of runaway code shorting
Provides option to tie multiple pins from different ports to same control registers
Safely drives multiple outputs

Multiple Serial Communication Options

Serial communications interface module with option for 13-bit break capabilities and double-buffered transmit and receive
Serial peripheral interface module and I²C bus module

Integrated Analog Peripherals

16-ch., 10-bit analog-to-digital converter (ADC)
- Automatic compare function, software programmable for greater than/equal to or less than conditions
- Asynchronous clock source
- Temperature sensor
- Internal bandgap reference channel
- Hardware triggerable using the RTI counter
- Low-power and high-speed options
Analog comparator module (ACMP)
- Option to compare to internal reference
- Option to route comparator output directly to pin
- Output can be optionally routed to TPM module as input capture trigger
Real-time-counter (RTC)
- 8-bit modulus counter with binary or decimal based prescaler
- External clock source for prescise time base, time-of-day, calendar or task scheduling functions

Three Timer Modules

Programmable 16-bit timer/PWM modules (TPM1 and TPM2)
8-bit modulo timer module (MTIM) with 8-bit prescaler

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low-voltage detection with reset or interrupt
Illegal opcode detection with reset
Flexible block protection
Security feature for flash and RAM
Always-on power-on reset (POR) circuitry

Development Support

Background Debugging System
On-Chip In-Circuit Emulation (ICE)
Real-Time Bus Capture

S08SH Family Comparison

Features	S08SH	S08SG	S08QG	S08QD	RS08KA
Core	HCS08	HCS08	HCS08	HCS08	RS08
Operating Voltage (V)	2.7 - 5.5	2.7 - 5.5	1.8 - 3.6	2.7 - 5.5	1.8 - 5.5
Bus Frequency (MHz)	20	20	10	8	10
Flash (Kbyte)	4 / 8	4 / 8 / 16 / 32	4 / 8	2 / 4	1 / 2
RAM (byte)	256 / 512	256 / 512 / 1024	256 / 512	128 / 256	63
Serial Comunications	SCI/w LIN Support SPI I²C	SCI SPI I²C	SCI SPI I²C	None	None
ADC	Up to 12 channels (10 bits)	Up to 16 channels (10 bits)	Up to 8 channels (10 bits)	Up to 4 channels (10 bits)	None
Analog Comparator	Yes	Yes	Yes	No	Yes
Timers	Up to Two Timers 16-bits (2 Channels each)	Up to Two Timers 16-bits (2 channels each)	One Timer 16-bit (2 channels) One 8-bit	Two Timers 16-bit (2 and 1 channels)	One Timer 8-bits
Tempeature Ranges (°C)	-40 to 85 -40 to 125	-40 to 85 -40 to 105 -40 to 125	-40 to 85	-40 to 85 -40 to 105 -40 to 125	-40 to 85
Package	8-pin SOIC 16-pin TSSOP 20-pin PDIP/TSSOP 24-pin QFN	8-pin SOIC 16-pin TSSOP 20-pin TSSOP 24-pin TSSOP 28-pin TSSOP	8-pin DIP/SOIC/QFN 16-pin DIP/TSSOP/QFN	8-pin DIP/SOIC	6-pin QFN 8-pin DIP/SOIC

S08SH Family is pin, tool and software compatible with S08SG, offering greater design flexibility.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Receive the full breakdown. See the product footprint and more in the eCad file.

Hardware

Quick reference to our board types.

5 hardware offerings

Emulators, Probes, and Programmers
Universal Multilink Development InterfaceFeatured
Active

UMultilink
Evaluation and Development Boards

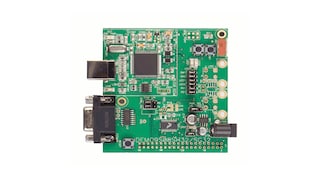

S08SH Family Demonstration BoardFeatured
Active

DEMO9S08SH
Emulators, Probes, and Programmers
PEmicro Cyclone programmer
Active

CYCLONE
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface
Active

U-MULTILINK-FX
