32-bit MCU for Auto Powertrain Applications

MPC5567 Active

Designed for engine management, the NXP MPC5567 embedded controller offers an ideal solution for any application that requires both high performance and FlexRay™ in a high-temperature automotive.

  • Targets mid-range engine management and industrial use cases that require complex, real-time control
  • Supports increased fuel efficiency and improved emissions
  • Offers system performance up to five times that of MPC500 predecessors
  • Facilitates reuse of legacy software architectures
  • Enables easy migration to next-generation 3 MB flash-embedded controllers
  • Pin-and code-compatible with other MPC5500 family MCUs

Block Diagram

MPC5567 Microcontroller

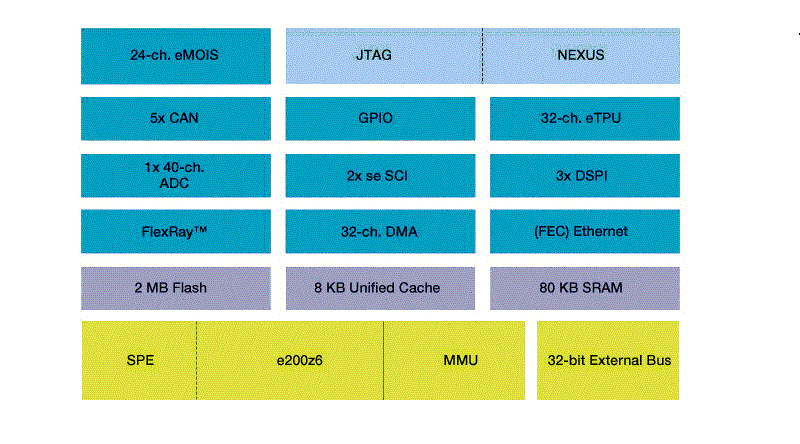

MPC5567 Microcontroller Block Diagram
Get diagram PDF

Features

Our e200z6 Core

  • High-performance 132 MHz 32-bit core built on Power Architecture technology with VLE
  • Memory management unit (MMU) with 32-entry fully associative translation lookaside buffer (TLB)
  • SPE (signal processing extension): DSP, SIMD and floating point capabilities

Memory

  • 2 MB of embedded flash memory with error correction coding (ECC) and read while write capability (RWW)
  • 64 KB on-chip static RAM with ECC
  • 8 KB of cache (with line-locking) that can be configured as additional RAM

System

  • An enhanced time processor unit (eTPUs) with 32 I/O channels and 14.5K of designated SRAM
  • 32-channel eDMA (enhanced direct memory access) controller
  • Interrupt controller (INTC) capable of handling 210 selectable-priority interrupt sources
  • Frequency modulated phase-locked loop (FMPLL) to assist in electromagnetic interference (EMI) management
  • MPC500 compatible external bus interface
  • Nexus IEEE®-ISTO 5001 class 3+ multicore debug capabilities > 5/3.3V IO, 5V ADC, 3.3V/1.8V bus, 1.5V core
  • 416-pin PBGA and 324-pin PBGA package options
  • Temperature range: -40 to 125ºC

I/O

  • 40 channel dual enhanced queued analog-to-digital converter (eQADC)—up to 12-bit resolution and up to 1.25 us conversions, six queues with triggering and DMA support
  • Three deserial serial peripheral interface (DSPI) modules—16 bits wide up to six chip selects each
  • Five controller area network (CAN) modules with 64 buffers each
  • Two enhanced serial communication interface (eSCI) modules
  • 24-channel enhanced multiple I/O system (EMIOS) with unified channels
  • Dual-channel FlexRay interface
  • Fast Ethernet controller (FEC)

Development Tools

  • A comprehensive suite of hardware and software development tools is available to help simplify and speed system design
  • Development support is available from leading tools vendors providing compilers, debuggers and simulation development environments
