MPC5510|32-bit MCU for Body Electronics Appli

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Designed for body electronics, the NXP MPC5510 MCU belongs to an expanding family of automotive-focused products that address the next wave of central body and gateway applications within the vehicle.

Offers high-performance while continuing to meet low-power requirements
Enables centralized architectures, which reduce the number of distributed ECUs and complexity of vehicle architectures
Provides extensive communication capabilities (e.g., FlexRay, multiple CAN and LIN support)
Offers room to grow with scalable family ranging from 512 KB up to 1.5 MB of embedded flash
Backed by a third-party ecosystem of development tools and software

Data Sheet

Reference Manual

Product Details

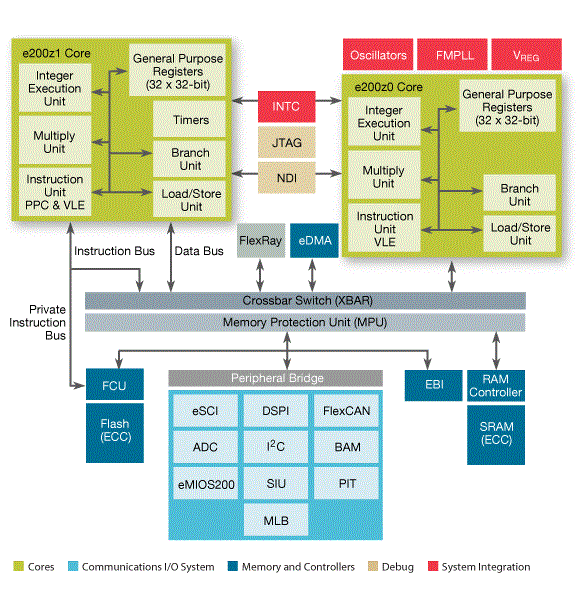

Block Diagram

MPC5510

Get diagram PDF

Features

Power Architecture e200z1 core with variable length encoding (VLE)
Optional VLE-only 32/16-bit e200z0 secondary core
16-channel eDMA (enhanced direct memory access)
Memory management unit (MMU) with 4-entry translation look-aside buffer (TLB)
Multiple low-power modes
JTAG and Nexus class 2+ debug support
Up to 1.5 MB of flash with error correction coding (ECC)
The flash module features read while write (RWW) and small partitions for optimal bootloader and EEPROM emulation support
Up to 80 KB of SRAM with ECC
Memory protection unit (MPU) with up to 16 regions and 32B granularity

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Printed Circuit Boards and Schematics
MPC5500_OrCAD_SYMBOL

ZIPRev 1.3May 19, 2008 00:00:00159.5 KBMPC5500_ORCAD_SYMBOL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Calculators
MPC55xx EEPROM Emulation Endurance Calculator

ZIPRev vBeta052Nov 27, 2013 00:00:008.1 MBMPC55XX_EEE_CALC
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 7 hardware offerings

Emulators, Probes, and Programmers
Universal Multilink Development InterfaceFeatured
Active

UMultilink
Evaluation and Development Boards

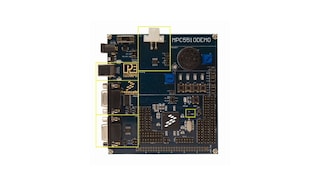

Demo Kit for NXP’s MPC5510 FamilyFeatured
Active

MPC5510DEMO
Evaluation and Development Boards

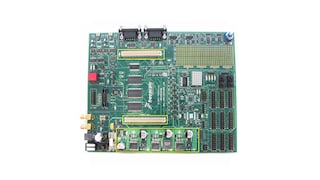

Evaluation Kit for NXP’s MPC5510 FamilyFeatured
