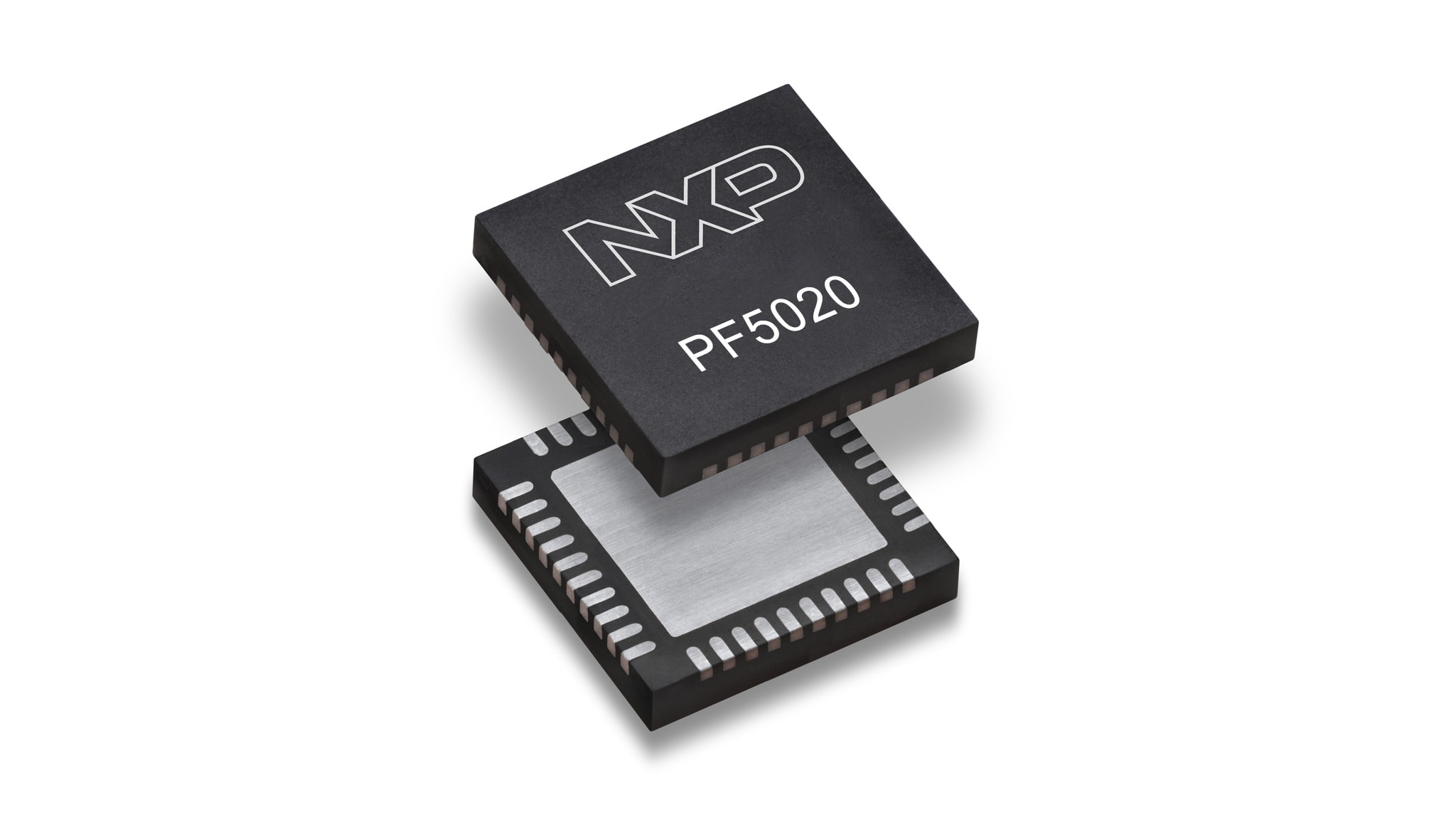

The PF5020 is NXP’s multi-channel PMIC device designed to be used for high performance automotive and industrial applications. The PF5020 is also highly configurable making it a perfect companion and fit for various system level power requirements.
Integrated and independent voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety up to ASIL B level. The PF5020 is also available as a standard non-safety device for applications that don’t require the ISO compliance.
The PF5020 is suitable for a variety of applications including infotainment, ADAS, vision and RADAR either as a standalone power solution or also as a companion to another NXP PMIC like the PF8200 or an SBC like the FS8500.
This device is suitable for i.MX and S32 processors based applications.
| Function | PF5020 QM | PF5020 ASILB | PF5024 QM | PF5024 ASILB | PF5023 QM | PF5023 ASILB | PF8100 | PF8200 |
|---|---|---|---|---|---|---|---|---|
| Buck regulator w/ DVS | 2ch | 4ch | 3ch | 6ch | ||||
| Buck regulator w/o DVS | 1ch | - | - | 1ch | ||||
| LDO | 1ch | - | - | 4ch | ||||
| AMUX output | - | - | - | 1ch | ||||
| Communication I/F | I²C with CRC | I²C with CRC | I²C with CRC | I²C with CRC | ||||
| Watchdog | yes | yes | yes | yes | ||||
| MCU I/F | PWRON, STANDBY, INTB, RESETBMCU, PGOOD, PGOODx, ENx, WDI | PWRON, STANDBY, INTB, RESETBMCU, PGOOD, PGOODx, ENx, WDI | PWRON, STANDBY, INTB, RESETBMCU, PGOOD, PGOODx, ENx, WDI | PWRON, STANDBY, INTB, RESETBMCU, EWARNB, PGOOD, WDI | ||||
| OV/UV monitoring | yes | yes | yes | yes | ||||
| OTP program | yes | yes | yes | yes | ||||
| ABIST | No | Yes | No | Yes | No | Yes | No | Yes |
| 20 MHz CLK check | No | Yes | No | Yes | No | Yes | No | Yes |
| OTP CRC check | No | Yes | No | Yes | No | Yes | No | Yes |
| Fail-Safe state | No | Yes | No | Yes | No | Yes | No | Yes |
| OTP CRC check | No | Yes | No | Yes | No | Yes | No | Yes |
| Sequire I²C write | No | Yes | No | Yes | No | Yes | No | Yes |
| Target ASIL class | QM | ASILB | QM | ASILB | QM | ASILB | QM | ASILB |
| Package | 40-QFN w/ WF | 40-QFN w/ WF | 40-QFN w/ WF | 56-QFN w/ WF | ||||
| Part Number | Description | OTP ID | Safety Grade | Package |
|---|---|---|---|---|
| MPF5020CMMAC | i.MX RT1170 | MAC report, programming and configuration files | QM | HVQFN40 |
| SPF5020CMBACES | S32G | BAC Report, programming and configuration files | ASIL B | HVQFN40 |
| SPF5020CMBADES | S32G | BAD Report, programming and configuration files | ASIL B | HVQFN40 |
| SPF5020CMBAKES | S32K | BAK Report, programming and configuration files | ASIL B | HVQFN40 |
| SPF5020CMBAZES | S32G233 | BAZ Report, programming and configuration files | ASIL B | HVQFN40 |
| SPF5020CVNAQES | I.MX257 | NAQ Report, programming and configuration files | QM | HVQFN40 |
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
