Multi-Channel (3) PMIC for Automotive Applications: 3 LVBUCK, Fit for ASIL B Safety Level

PF5123 Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

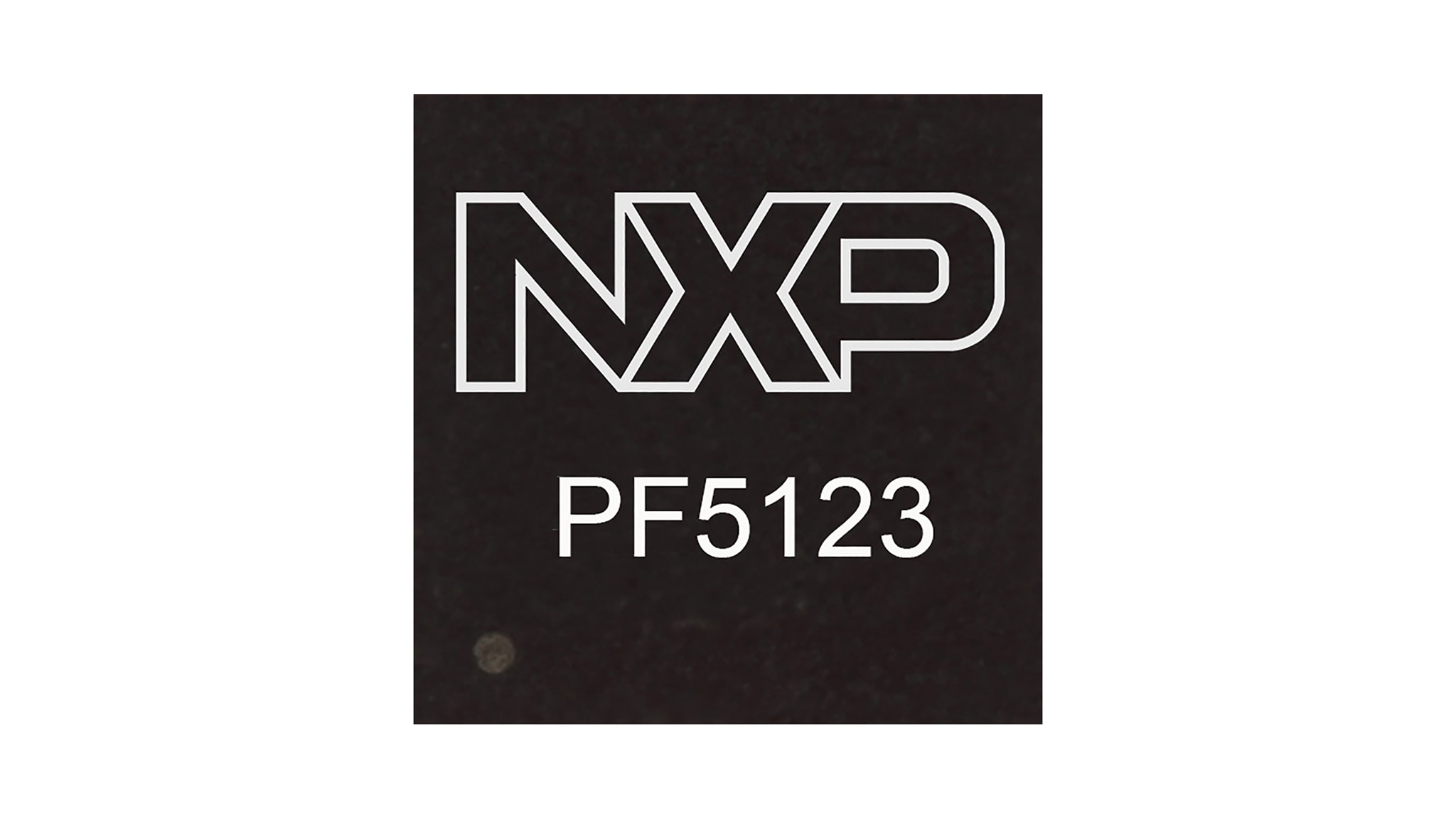

Roll over image to zoom in

The PF5123 is NXP’s multi-channel PMIC device designed to be used for automotive safety application and industrial application. The PF5123 is also highly configurable making it a great companion and fit for various system level power requirements.

Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety ASIL B level. The PF5123 is also available as a standard nonsafety device for applications that don’t require the ISO26262 compliance.

The PF5123 is suitable for applications requiring multipower supply, including infotainment, ADAS, vision and RADAR as a companion to another NXP PMIC and SBC like the FS8x family.

Block Diagram

Multi-Channel (3) PMIC for Automotive Applications: 3 LVBUCK, Fit for ASIL B Safety Level

PF5123 Functional Block Diagram
Get diagram PDF

Features

Key Features

  • Three LVBUCK converters up to 3.5 A

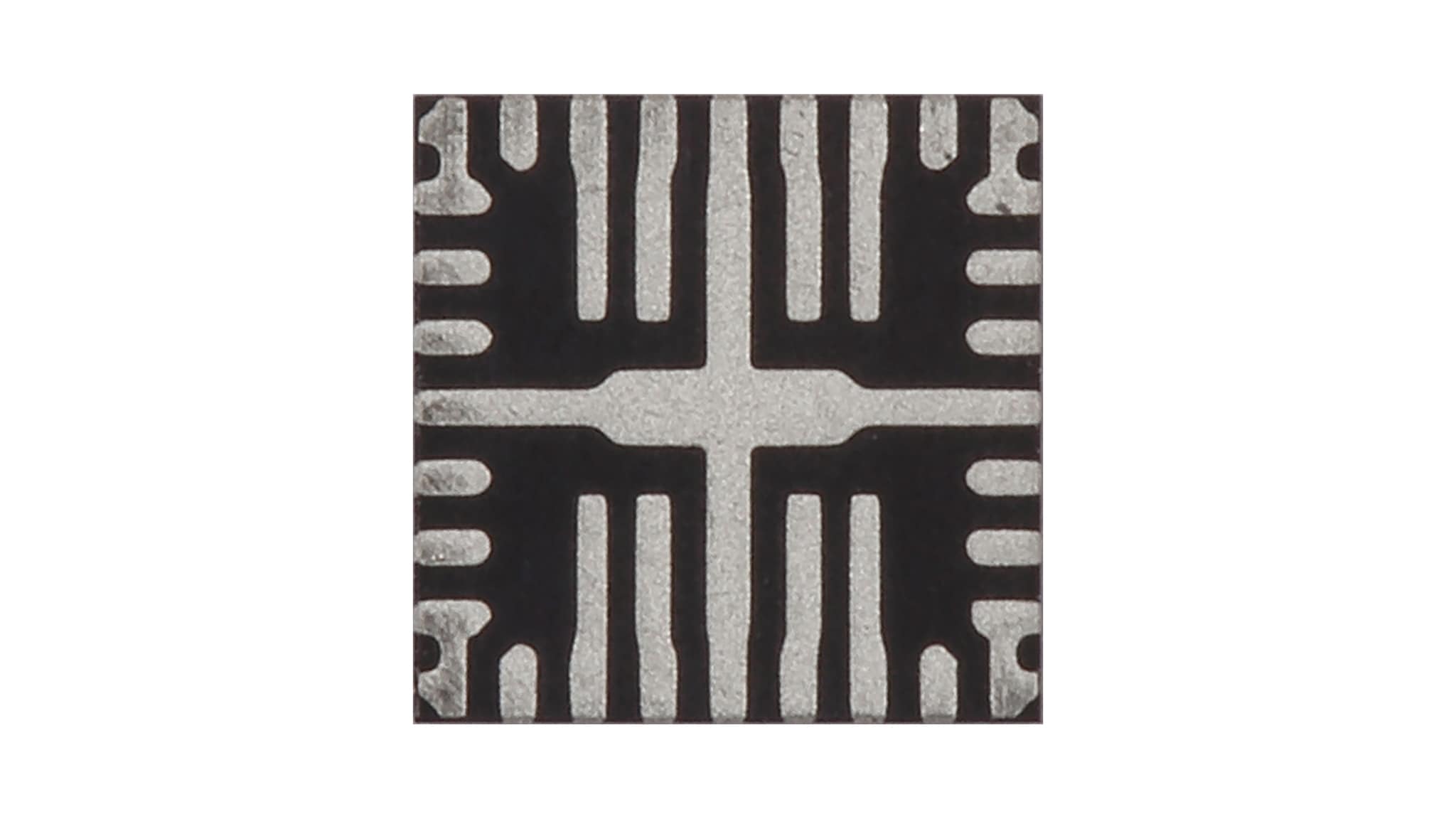

  • 28-pin 4.5 x 4.5 FC-QFN package
  • MCU supported for general PMIC, PoL
  • I²C interface and input control

System Features

  • One-time programmable (OTP) memory for flexible device configuration
  • High speed I²C interface (3.4 MHz)
  • PGOOD monitoring circuits
  • External clock synchronization
  • Frequency spread spectrum
  • Multi PMIC synchronization bus
  • Output Current (A) 3.5
  • 3 buck regulators
  • No LDO applicable

Monitoring Circuits to Fit ASIL B Safety Level

  • Independent circuits to fit ASIL B safety level
  • Voltage monitoring with programmable fault protection
  • Watchdog simple window
  • I²C CRC and write protection mechanism
  • Analog built-in self-test (ABIST)

Programmability

  • Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
  • During development phase, customized OTP part can be programmed using the evaluation board
  • Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
  • Custom OTP can be created using the GUI tool
