MC34709

Roll over image to zoom in

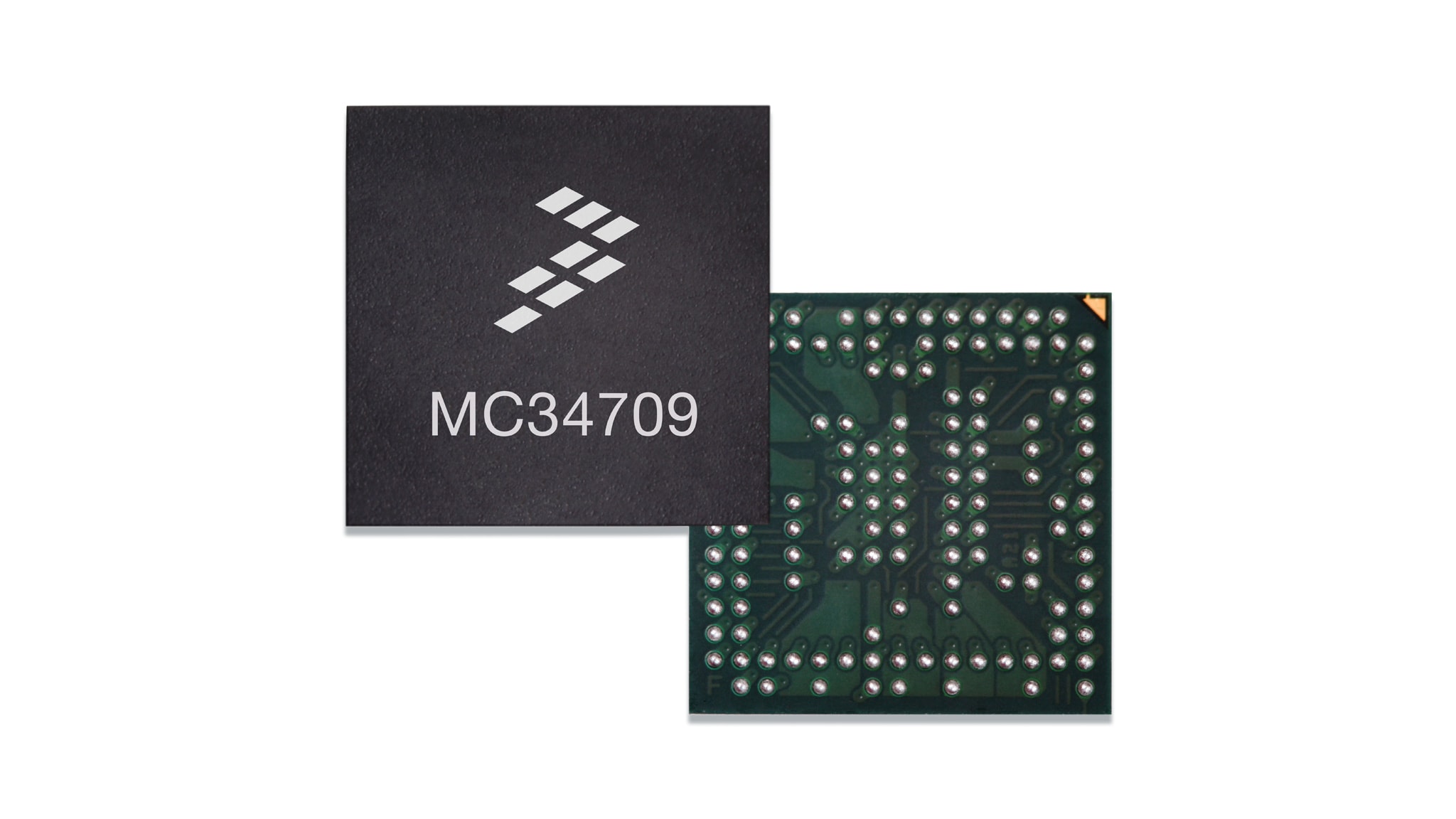

The MC34709 is a power management integrated circuit (PMIC) designed primarily for use with the i.MX 50 and i.MX53 families.

Offers a low cost solution targeting embedded applications that do not require a battery charger
Can be easily combined with an external charger, allowing flexibility for either single or multi-cell Li-Ion battery configurations
Supports both consumer and industrial applications with a single 130-pin 8x8 MAPBGA 0.5 mm pitch package that is easily routable in low cost board designs

Data Sheet

Application Notes

Product Details

Block Diagram

MC34709

Get diagram PDF

Features

Power Supplies

Six multi-mode buck regulators
- Two single/dual-phase buck regulators
- Three single-phase buck regulators
- Up to six independent outputs
- PFM/PWM operation mode
- Dynamic voltage scaling
5 V boost regulator
- Support for USB physical layer on i.MX processor (USB PHY)
Eight LDO regulators
- Two with selectable internal or external pass devices
- Four with embedded pass devices
- One with an external PNP device
- Voltage reference for DDR memory with internal PMOS device
Hardware programmable power-up sequence

10-Bit ADC Core

Seven general purpose ADC channels
Dedicated channels for monitoring die temperature and coin cell voltage
Resistive touchscreen interface

Auxiliary Circuits

General purpose I/Os
PWM outputs

Clocking and Oscillators

Real time clock
Time and day counters
Time of day alarm
32.768 kHz crystal oscillator
Coin cell battery backup and charger

Serial Interface

SPI / I²C communication protocol

Key Features

I²C interface and input control
i.MX35, i.MX37, i.MX50, i.MX51 and i.MX53 MCU supported

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

9 documents

Compact List

AN4982, Assembly guidelines for molded array process ball grid array package - Application Note[AN4982]

PDFDec 9, 2020Rev 4
AN4604, Interfacing the MC34709 with the i.MX53 Microprocessor - Application Note[AN4604]

PDFMay 9, 2013Rev 2.0
AN4603, Power Management Design Guidelines for the i.MX50x Family of Microprocessors - Application Note[AN4603]

PDFDec 24, 2012Rev 1.0
AN4619, Interfacing the MC34709 with an External Battery Charger, AN4619 - Application Note[AN4619]

PDFNov 19, 2012Rev 1.0

Power Management Integrated Circuits Brochure[PMICBRA4]

PDFSep 6, 2024Rev 6

MC34709, Power Management Integrated Circuit (PMIC) for i.MX50/53 Families - Data Sheet[MC34709]Featured

PDFNov 27, 2013Rev 4.0

Silicon Errata MC34709 (N88D) - Errata[MC34709ER]Featured

PDFNov 27, 2013Rev 3.0

Powering the Ambition of Software-Defined Vehicles White Paper[PMICWPA4]

PDFJun 10, 2024Rev 0
PMICWP, A Case Against Discretes - White paper[PMICWP]

PDFOct 3, 2016Rev 1

Design Resources

Design Files

Quick reference to our design files types.

1 design file

Receive the full breakdown. See the product footprint and more in the eCad file.

Printed Circuit Boards and Schematics
Design files for the KIT34709VKEVBE implementing all workarounds from MC34709 errata.

ZIPRev BOct 25, 2012 00:00:002.6 MBDF34709_REVB
