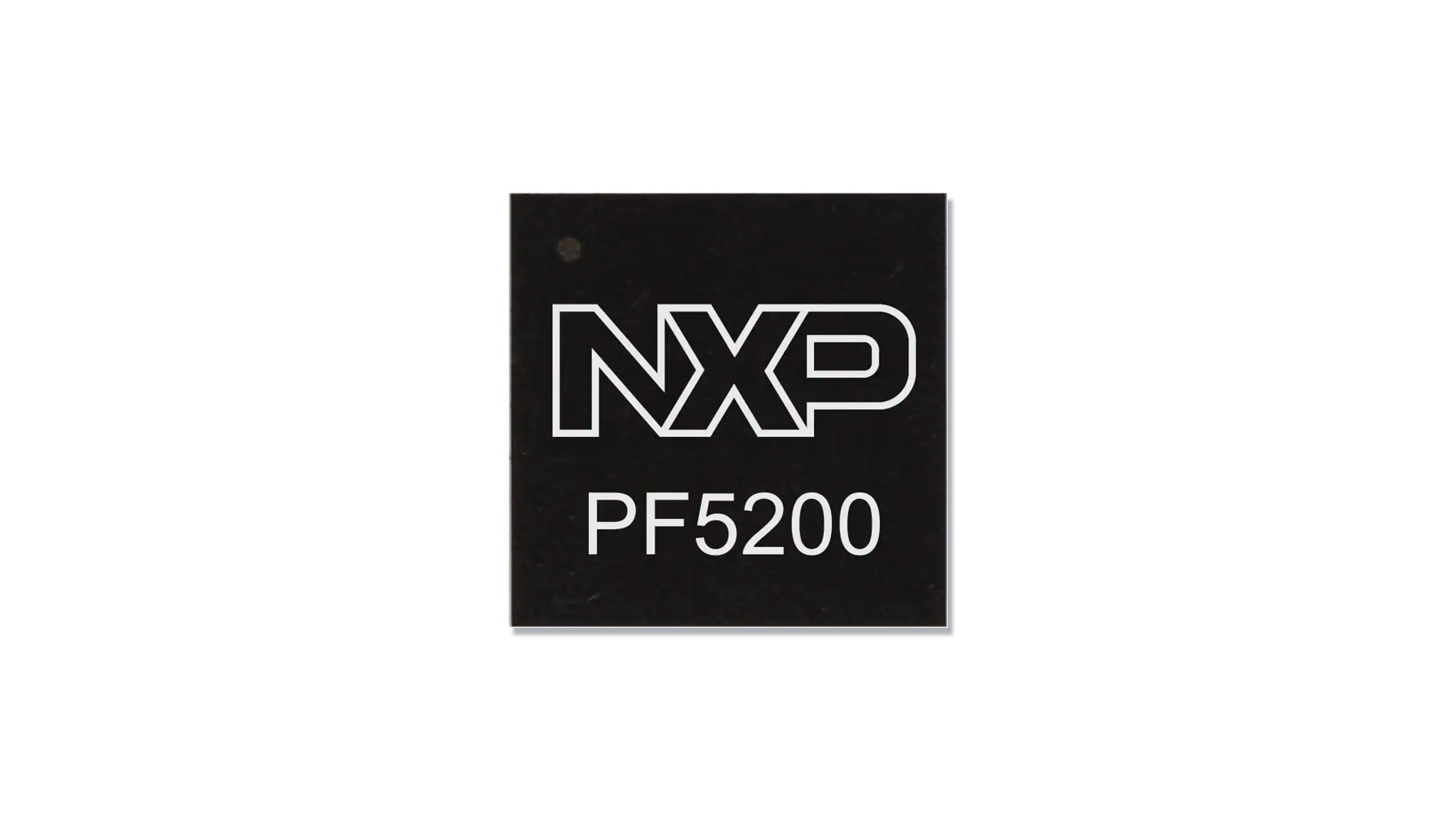

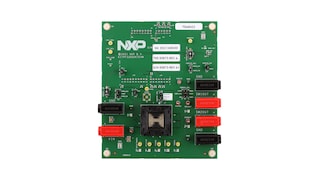

The PF5200 is a multi-channel PMIC device designed to be used for high performance automotive applications. The PF5200 is also highly configurable making it a perfect companion and fit for various system level power requirements.
Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety up to ASIL B level. The PF5200 is also available as a standard non-safety device for applications that don't require the ISO 26262 compliance.
The PF5200 is suitable for high current core supply of applications including infotainment, ADAS, vision and radar as a companion to another NXP PMIC like the PF502x family or an SBC like the FS85 family.
This device is suitable for S32 processors based applications and DDR memory supply.
| Part Number | Description | OTP ID | Safety Grade | Package |
|---|---|---|---|---|
| MPF5200AMBA1 | LX2160A | BA1 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA2 | LX2160A | BA2 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA3 | LX2160A | BA3 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA4 | S32R45 | BA4 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMMG2 | LA1224 | MG2 report, programming and configuration files | QM | HWQFN32 |
| MPF5200AMMG3 | LA1224 | MG3 report, programming and configuration files | QM | HWQFN32 |
| SPF5200AMMG4ES | Semidrive X9 | G4 Report, programming and configuration files | QM | HWQFN32 |
| SPF5200AMMG7ES | S32G3 | G7 Report, programming and configuration files | QM | HWQFN32 |
| SPF5200AMMGAES | SemidriveX9H | GA Report, programming and configuration files | QM | HWQFN32 |
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
