PF5113

Roll over image to zoom in

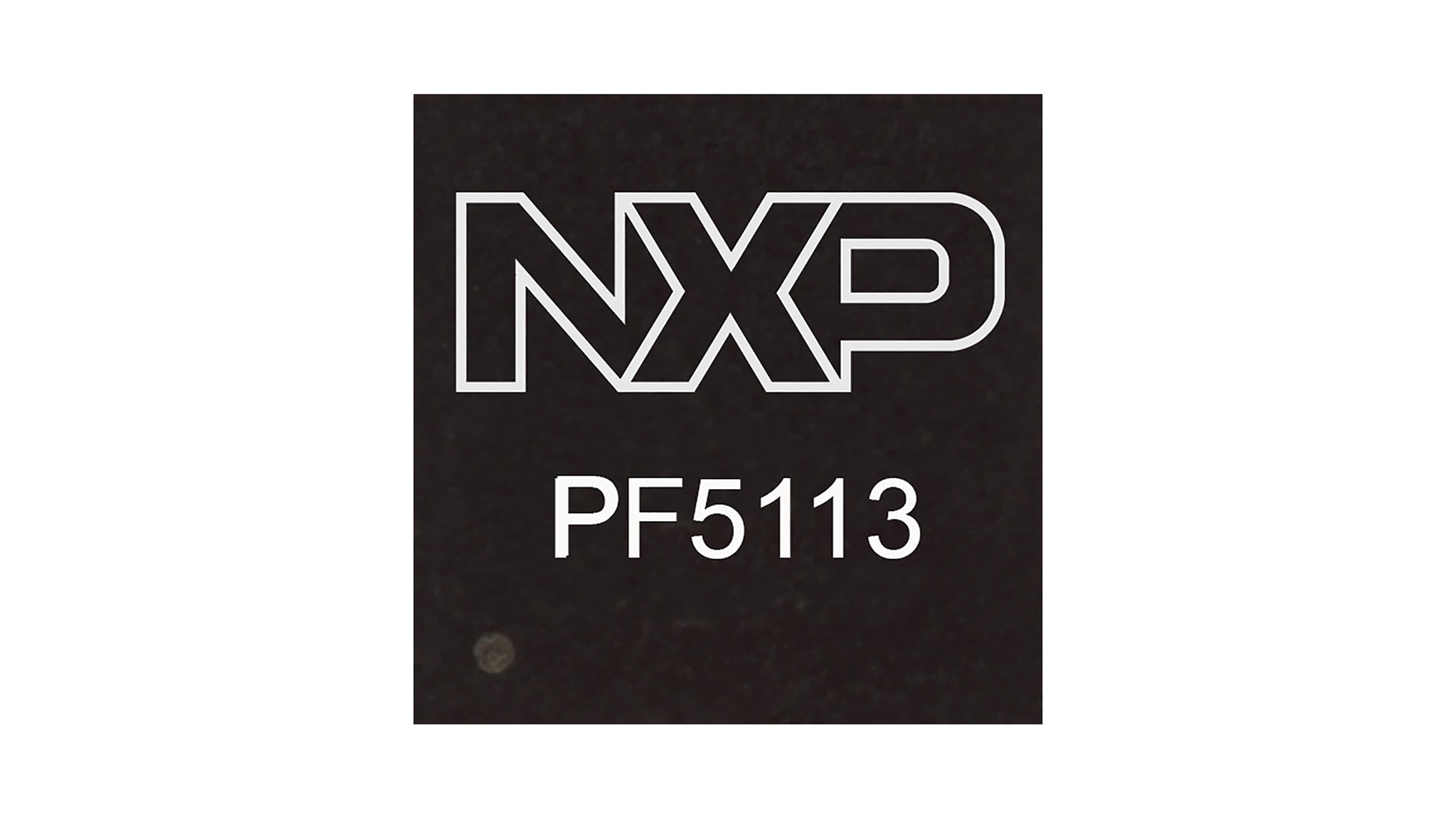

The PF5113 is NXP’s multi-channel PMIC device designed to be used for automotive ADAS radar application and industrial application.

Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety ASIL B level. The PF5113 is also available as a standard nonsafety device for applications that don’t require the ISO26262 compliance.

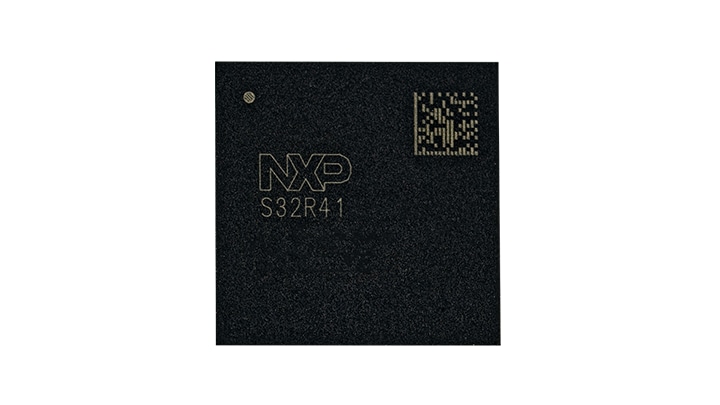

The PF5113 is suitable for NXP radar system solution including S32R41 and TEF82xx.

Product Details

Block Diagram

Multi-Channel (5) PMIC for Automotive Applications: 3 LVBUCK and 2 LDO, Fit for ASIL B Safety Level

Get diagram PDF

Features

Key Features

Three LVBUCK converters up to 3.5 A (SW2) and 2.6 A(SW1 and SW3)
Two LDO up to 200 mA and 500 mA

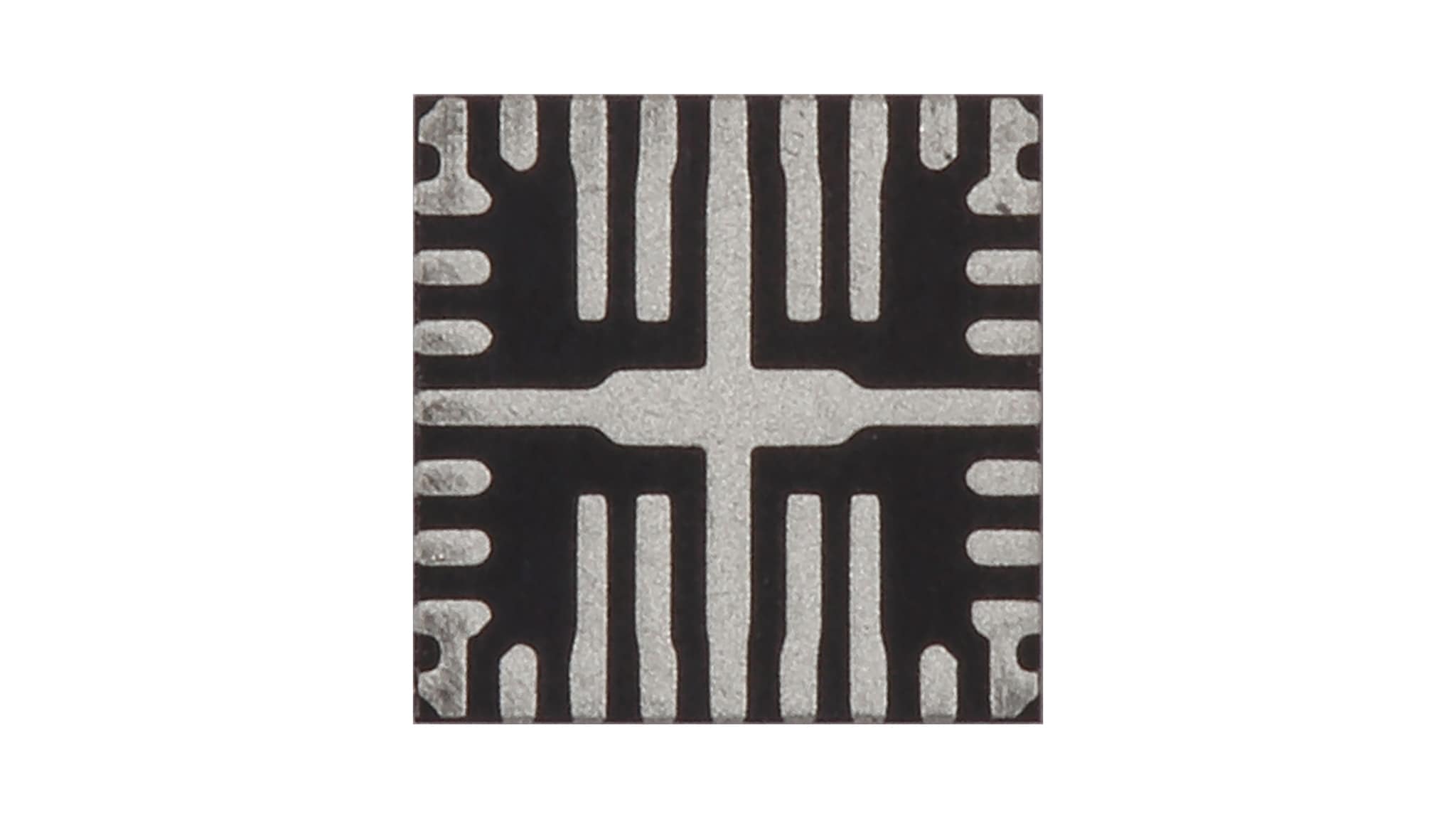

28-pin 4.5 x 4.5 FC-QFN package
S32R MCU supported

System Features

One-time programmable (OPT) memory for flexible device configuration
High speed I²C interface (3.4 MHz)
PGOOD monitoring circuits
External clock synchronization
Frequency spread spectrum
Multi PMIC synchronization bus
Output Current (A) 0.2, 0.5, 3.5, 2.6
3 buck regulators
2 LDO

Monitoring Circuits to Fit ASIL B Safety Level

Independent circuits to fit ASIL B safety level
Voltage monitoring with programmable fault protection
Watchdog simple window
I²C CRC and write protection mechanism
Analog built-in self-test (ABIST)

Programmability

Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
During development phase, customized OTP part can be programmed using the evaluation board
Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
Custom OTP can be created using the GUI tool
