ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN

Product Details

Block Diagram

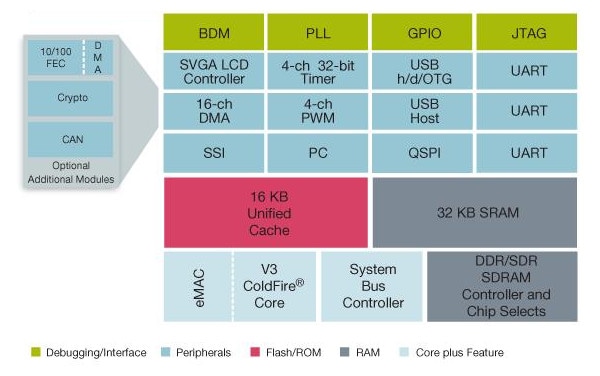

ColdFire MCF532X Microprocessor Block Diagram

Get diagram PDF

Features

ColdFire^® V3 core delivering up to 211 (Dhrystone 2.1) MIPS @ 240 MHz
32 KB RAM
16 KB I/D-cache
Enhanced multiply-accumulate (MAC) module handles DSP-like instructions
Integrated peripherals
- USB host/USB on-the-go (OTG)
- FlexCAN 2.0B
- 10/100 fast Ethernet controller (FEC)
- Three universal asymchronous receiver/transmitters (UARTs)
- I²C bus interface
- Queued serial peripheral interface (QSPI)
- Serial synchronous interface (SSI)
- Pulse width modulation (PWM): four channels
- Real-time clock
- Direct memory access (DMA): 16 channnels
- 16-bit DDR/32-bit SDR SDRAM controller
- Integrated SVGA LCD controller
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 15 years after launch
