32-Bit Microcontrollers with USB

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Built on the ColdFire^® V2 core, the MCF5222x family offers up to 76 MIPS (Dhrystone 2.1) at 80 MHz. It builds on the successful MCF5213 family by integrating a USB host and on-the-go (OTG) controller, making it ideal for applications requiring device or host connectivity functionality. The MCF5222x microcontrollers are aimed at designers who want the power and flexibility of a 32-bit microcontroller plus a rich set of on-chip peripherals at a low cost. These small, highly integrated microcontrollers open the door to expanding application capabilities while driving down total system costs.

The MCF5222x family targets embedded control applications such as industrial control, home/factory automation, point-of-sale, health care-related and testing equipment, as well as consumer applications.

The MCF52223 is pin-to-pin compatible with the MCF52221 (in like packages) and adds 16 KB of SRAM and an extra 128 KB of flash to the standard MCF5222x peripheral set.

Data Sheet

Reference Manual

Product Details

Block Diagram

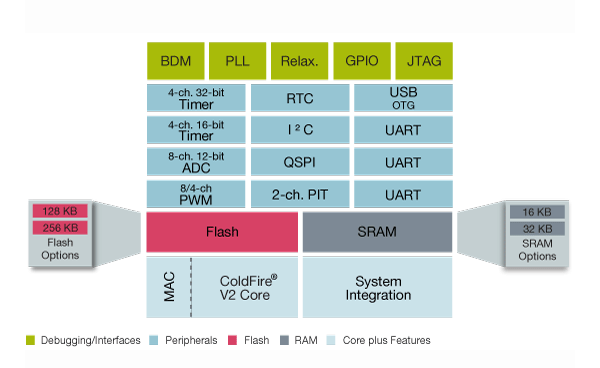

ColdFire MCF5222X Microcontroller Block Diagram

Get diagram PDF

Features

ColdFire^® V2 core delivering 76 (Dhrystone 2.1) MIPS at 80 MHz
Up to 32 KB SRAM
Up to 256 KB flash
Integrated peripherals
- USB 2.0 low/full-speed OTG controller
- Three universal asynchronous receiver/transmitters (UARTS)
- MAC module and hardware divide
- Queued serial peripheral interface (QSPI)
- I²C
- Four-channel 16-bit capture/compare/pulse width modulated (PWM) timers
- Real-time clock
- Up to 56 general-purpose input/outputs (GPIOs)
Complimentary MQX Software Solutions
