Coldfire V3 Microprocessor with Ethernet, USB and Encryption
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Compact List
Low-Power MPU with dual Ethernet, USB, and audio sub-system
- This page contains information on a product that is not recommended for new designs.
The MCF5301x 32-bit ColdFire® V3 core microprocessor combines low-power, high integration and connectivity peripherals with a voice codec to give designers an ideal solution for industrial control with embedded voice applications.
Product Details

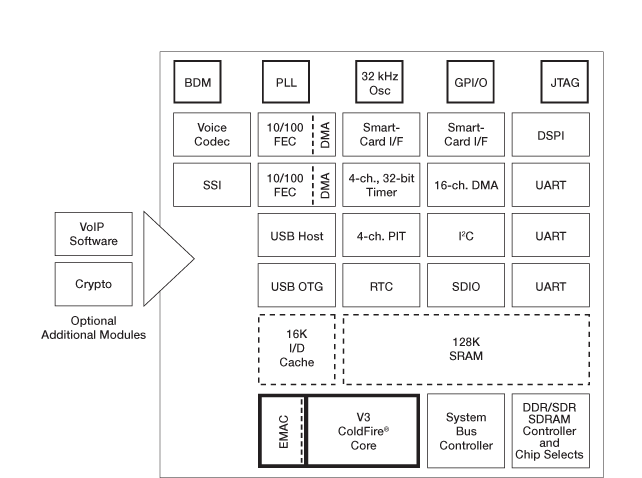

Block Diagram
Features
- Audio sub-system (codec and amplifiers)
- Up to 211 (Dhrystone 2.1) MIPS @ 240 MHz
- Low-power C90LP process
- Dual 10/100 Ethernet MAC
- SDIO host interface
- Dual smart card interface
- NRE-free VoIP software
- 16-channel direct memory access (DMA) controller
- Synchronous serial interface (SSI)
- Four periodic interrupt timers
- Four 32-bit timers with DMA support
- Real-time clock (RTC) module with standby support
- DMA-supported serial peripheral interface (DSPI)
- Three universal asynchronous receiver/transmitters (UARTS)
- I²C bus interface
Related products
ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN
Documentation
Quick reference to our documentation types.
1-10 of 14 documents
Application Note (7)
-
System Design Using the ColdFire® MCF5208 Split Bus Architecture[AN2982]Featured
-
Solder Joint Temperature and Package Peak Temperature[AN3298]Featured
Data Sheet (1)
-
MCF5301x - Data Sheet[MCF53017]Featured
Errata (1)
-
MCF53017 Device Errata[MCF53017DE]Featured
Fact Sheet (1)
-
MCF5301x Family Fact Sheet[MCF5301XFS]Featured
Product Brief (1)
-
MCF5301x Product Brief[MCF53017PB]Featured
Product Change Notice (1)
Reference Manual (2)
-
MCF5301x Reference Manual[MCF53017RM]Featured
Design Resources
Hardware
Quick reference to our
board types.
3 hardware offerings
-
Emulators, Probes, and ProgrammersUSB ColdFire MultlinkFeatured
Active -

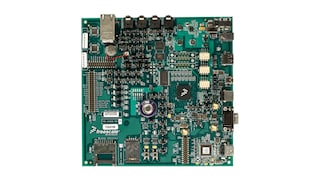

Evaluation and Development BoardsMCF5301x Evaluation BoardFeatured
-
