ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MCF548X ColdFire^® microprocessors are based on the ColdFire V4e core and feature multiple connectivity peripherals including Ethernet, CAN, PCI and other serial interfaces. Additionally, they offer an encryption accelerator for secure communications in network connected control applications. The MCF548x family is pin-compatible with the MCF547x family of microprocessors offering scalability and flexibility for designs that evolve over time.

Data Sheet

Reference Manual

Product Details

Block Diagram

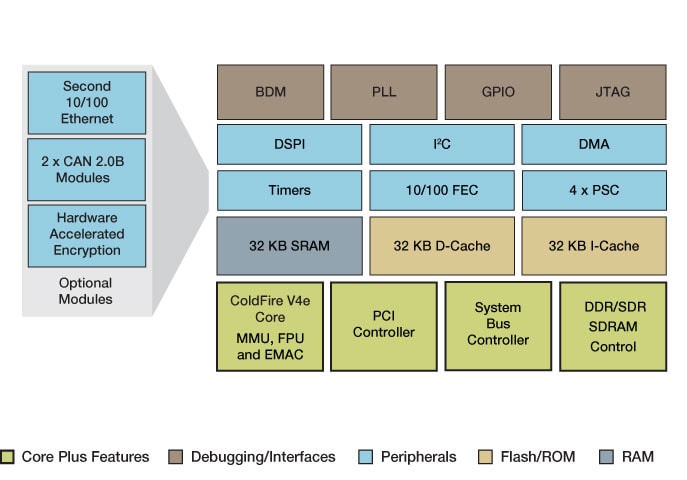

ColdFire MCF548X Microprocessor Block Diagram

Get diagram PDF

Features

ColdFire^® V4e core delivering up to 308 (Dhrystone 2.1) MIPS @ 200 MHz
Memory management unit (MMU)
Dual precision floating point (FPU)
Enhaced multiply-accumulate (eMAC) module handles DSP-like instructions
32 KB I-cache
32 KB D-cache
32 KB on-chip system SRAM
32-bit 133 MHz DDR/SDR-SDRAM controller
Connectivity:
- 10/100 fast ethernet controller (FEC)
- CAN 2.0B
- PCI Interface V2.2; 33/66 MHz; five external leaders
- Serial peripheral interface with direct memory access (DMA) capability
- I²C interface
- 16-channel DMA controller
Security:
- Hardware-acceleration encryption (DES, 3DES, RC4, AES, MD5, SHA-1, RNG)
388 PBGA package
