PF7100 Evaluation Board

KITPF7100FRDMEVM Active

Roll over image to zoom in

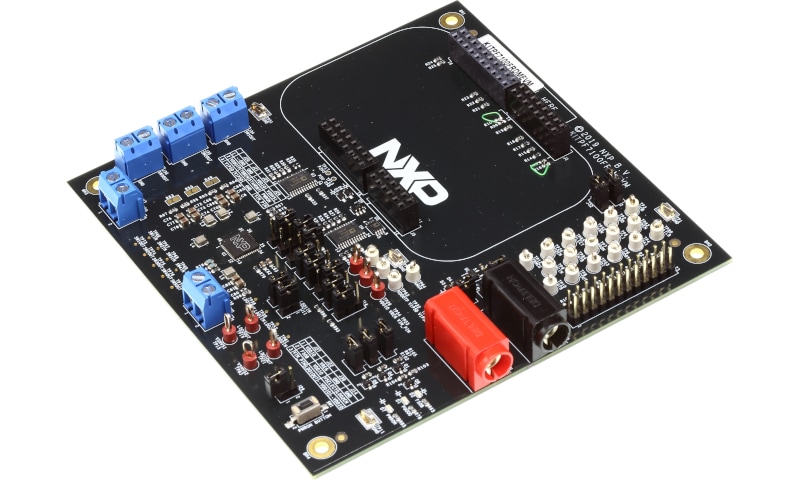

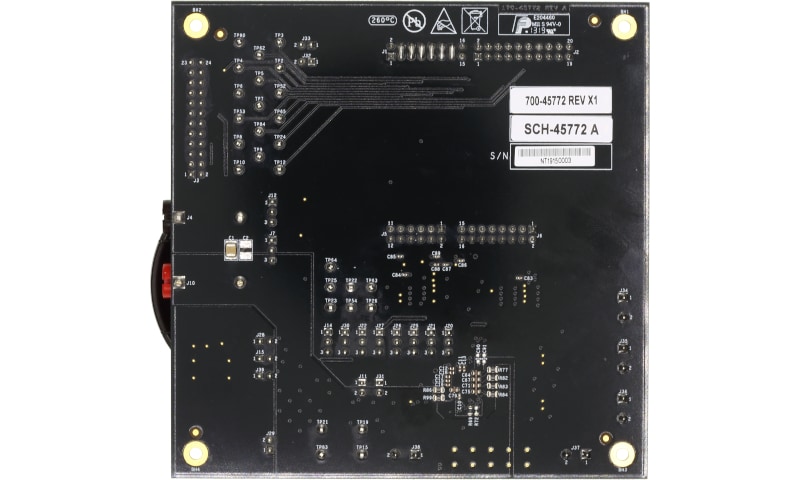

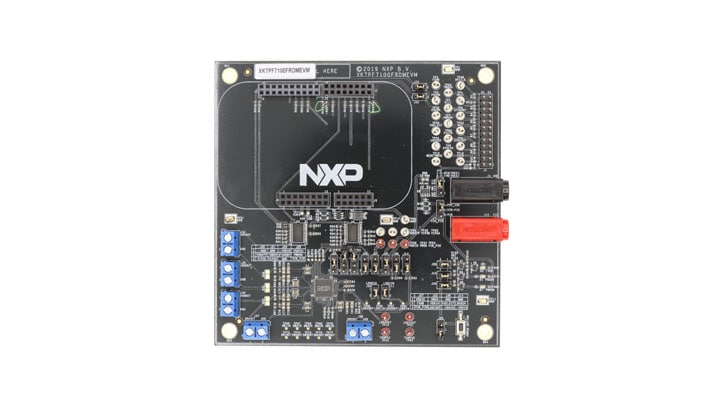

The KITPF7100FRDMEVM is a customer evaluation board featuring the PF7100 power management IC. The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit.

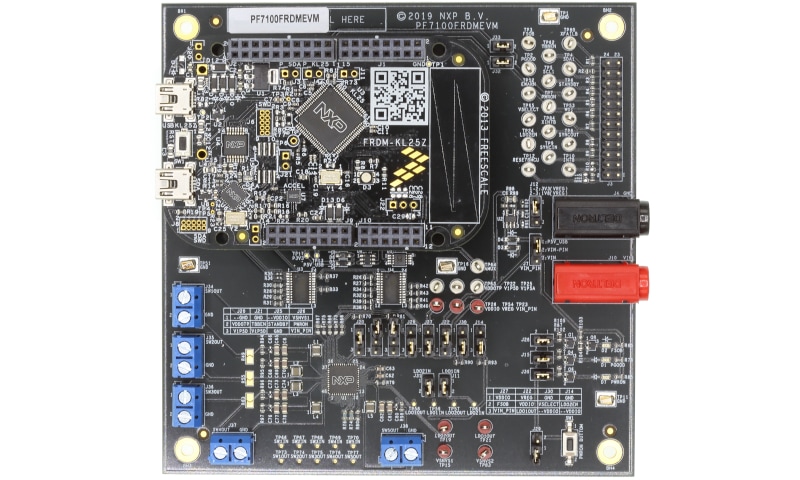

It integrates a communication bridge based on the FRDM-KL25Z development board to interface with the NXP GUI software interface to fully configure and control the PF7100 PMIC.

Supported Devices

Power Management

PMICs

  • PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level

Features

General

  • 2.5 V to 5.5 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • Up to 3.4 MHz I²C communication
  • Selectable hardwire default PMIC configuration or OTP/TBB operation
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Leader/follower interface connector for multi-PMIC support
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

Buy Options

KITPF7100FRDMEVM-Image

Click to expand

  • KITPF7100FRDMEVM
    Active

  • PF7100 Evaluation Board.

    • Assembled and tested KITPF7100FRDMEVM
    • Preprogrammed FRDM-KL25Z

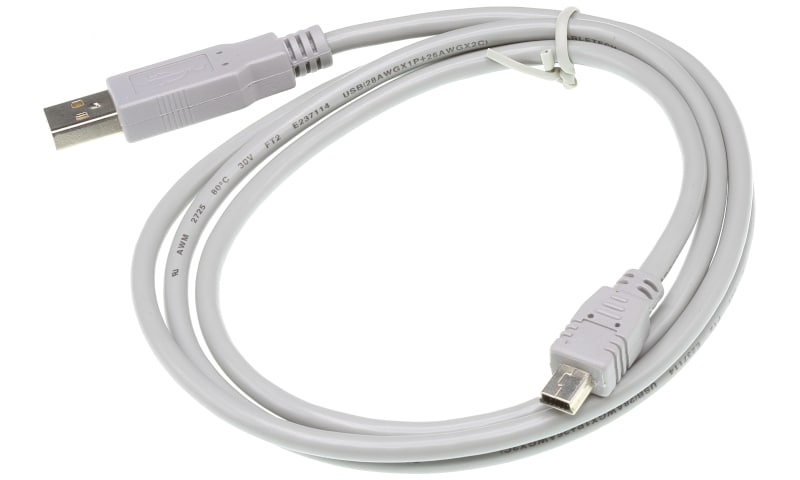

    • 3.0 ft. USB-STD A to USB-B-mini cable
  • $226.26 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
