Flexis 32-Bit ColdFire® V1 Microcontroller
The QE family, comprised of a pin-compatible 8-bit and 32-bit device duo, is the first family in the Flexis series. The Flexis series of controllers is the connection point on the NXP® Controller Continuum, where 8- and 32-bit compatibility becomes reality.
The MCF51QE128 device extends the low end of the 32-bit ColdFire® controller family with up to 128 KB flash memory and a 24-channel, 12-bit analog-to-digital converter (ADC). The 32-bit MCF51QE128 is pin-, peripheral- and tool-compatible with the 8-bit S08QE128 device. They share a common set of peripherals and development tools delivering the ultimate in migration flexibility.
Product Details

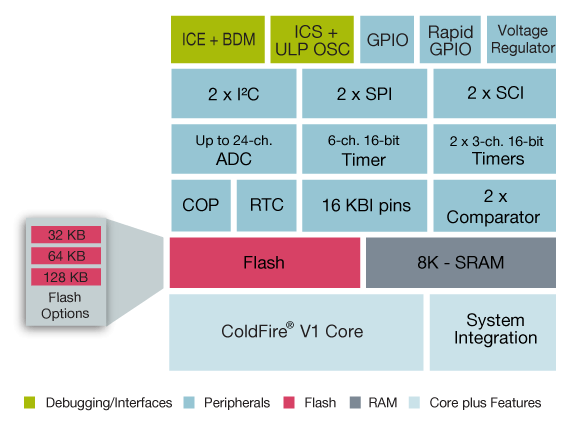

Block Diagram
Features
- 50 MHz ColdFire V1 core /25 MHz bus speed
- Up to 128 KB flash memory
- Up to 8 KB random access memory (RAM)
- 1.8 to 3.6-volt operating voltage range
- Loop-control oscillator
- Highly accurate internal clock (ICS)
- Single-wire background debug interface
- Up to 70 general-purpose input/output (GPIO) ports, plus 16 bits of rapid GPIO
- 16 keyboard interrupt (KBI) pins
- -40°C to +85°C temperature range
- Pin compatibility in 64- and 80-pin LQFP packages
- Common development tools including CodeWarrior® for microcontrollers 6.0
- Peripherals
- 24-channel, 12-bit ADC
- 2 analog comparators
- 2 Serial communications interface (SCI/UART)
- 2 serial peripheral interface (SPI)
- 2 I²C
- Timers
- One 16-bit, 6-channel timer
- Two 16-bit, 3-channel timer
- Input capture, output compare and pulse width modulation for improved motor control
- Real time clock
- Low-Power Benefits
- Low-power run and wait modes that enable reduced current and reduced speed modes for peripherals
- Run currents
- 27 mA (50 MHz CPU, 3-volt VDD )
- 50 μA (32 KHz CPU, 3-volt VDD)
- Two ultra-low power stop modes
- Stop 2 - 600 nA
- Stop 3 - 800 nA
- Fast start-up from stop mode (6 μs)
- Flash programming from 1.8 to 3.6-volts
- Low-power ADC
- Flexible clock modules
- The MCF51EM32/128 is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
