The MCF51MM256/128 provides ultra low-power operation, USB connectivity, graphic display support and unparalleled measurement accuracy, all in a single 32-bit microcontroller (MCU), allowing designers to create more fully featured products at a lower cost. The MCF51MM256/128 is ideal for medical applications or other applications requiring a significant amount of precision analog such as instrumentation and industrial control.
The MCF51MM256/128 is part of the Flexis MCU series.
Product Details

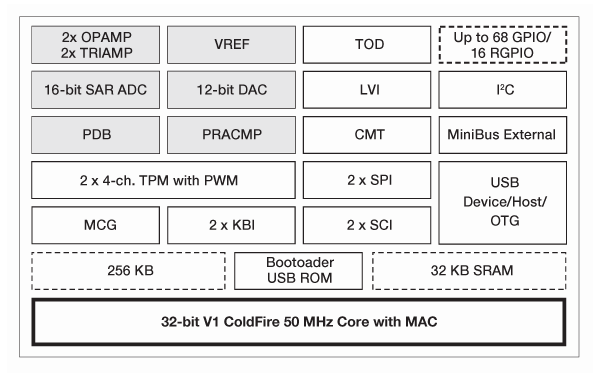

Block Diagram
Features
- ColdFire® V1 core delivering a 50 MHz core speed and 25 MHz bus speed
- Up to 256 KB flash and 32 KB SRAM
- Low-power stop 2 current:500 nA (32 KB of active SRAM)
- 2 x general purpose opamps
- 2 x transimpedance amplifiers
- 16-bit SAR high resolution analog-to-digital converter(ADC)
- Analog Comparator with 5-bit digital-to-analog converter (DAC)
- Internal voltage reference
- USB - device/host/on-the-go controller
- 2 x serial peripheral interface (SPI), 2 x serial communication interface (SCI) and 1 x I²C
- Mini FlexBus (external bus interface)
- This product is included in Our product longevity program, with assured supply for a minimum of 15 years after launch
