The FRDM-KW36 is a development kit enabled by the Kinetis^® W KW36/35/34 (KW36) family built on Arm^® Cortex^®-M0+ processor with integrated 2.4 GHz transceiver supporting Bluetooth^® Low Energy (BLE) v5 and Generic FSK. The KW36 integrate CAN/CAN-FD and LIN connectivity.

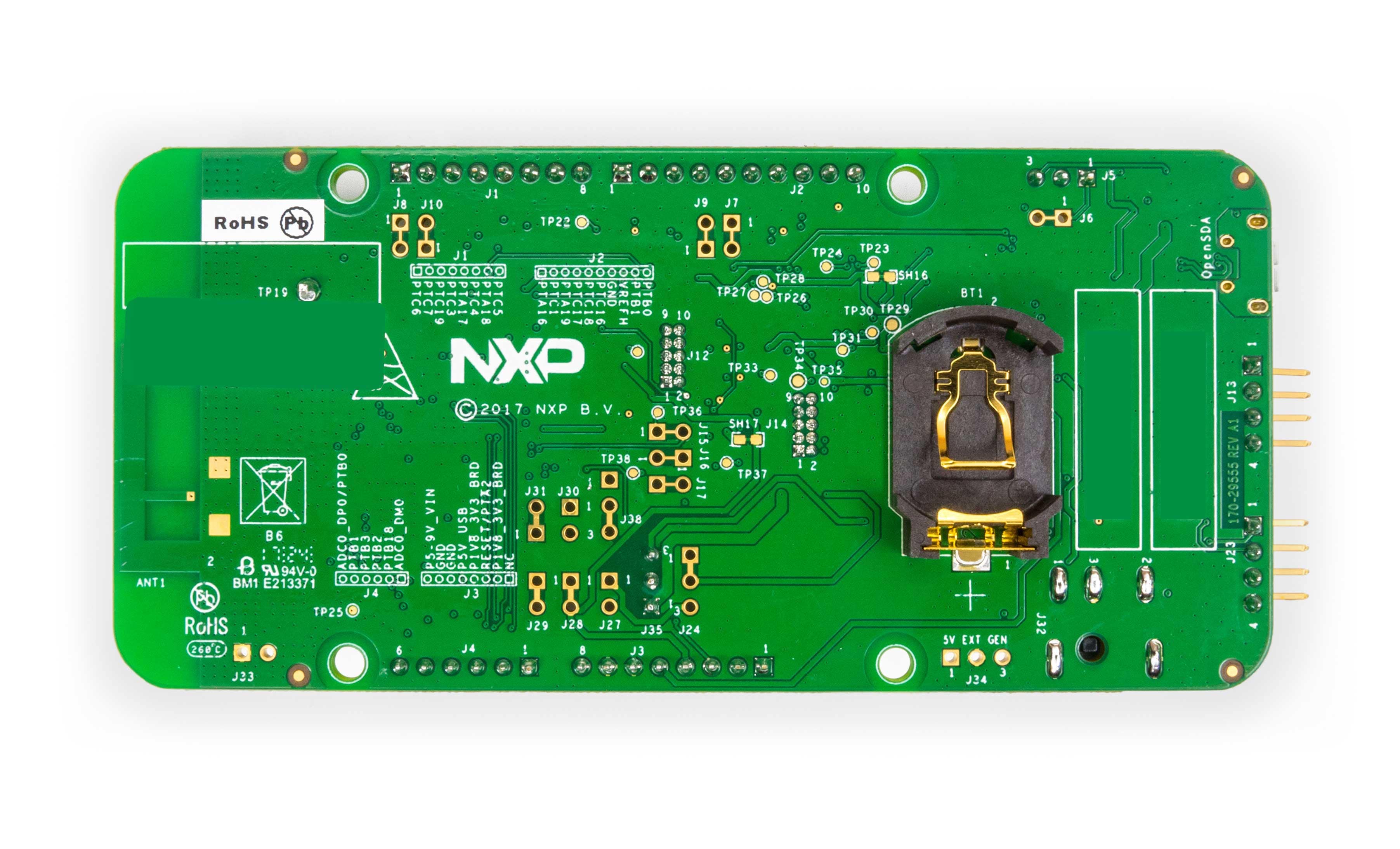

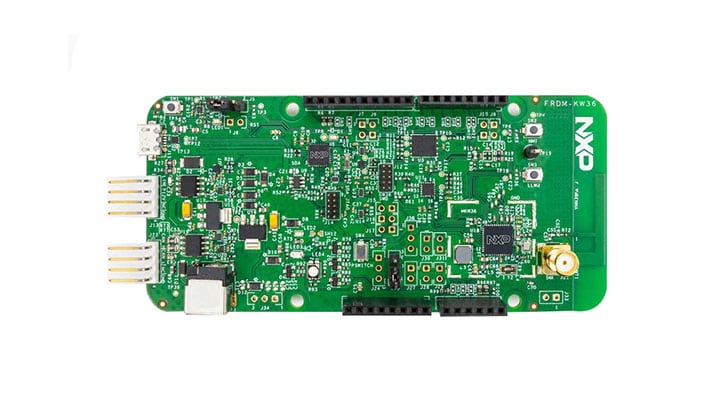

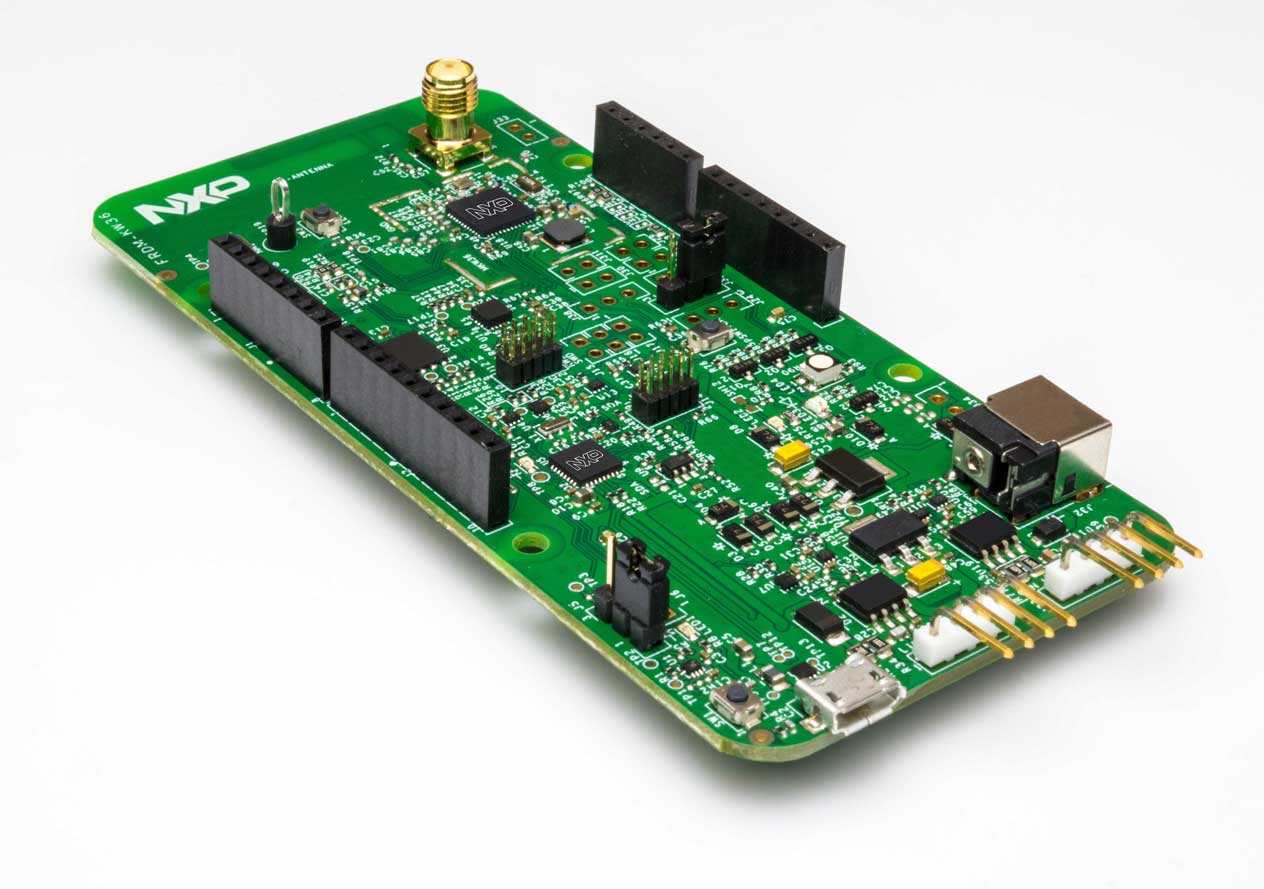

The FRDM-KW36 kit contains Freedom board that can be used as a development board or a shield to connect to a host processor. The FRDM-KW36 highly sensitive, optimized 2.4 GHz radio features a PCB F-antenna which can be bypassed to test via SMA connection, CAN and LIN transceivers, 4-Mbit external serial flash, multiple power supply options, push/capacitive touch buttons, switches, LEDs and integrated sensors.

Note: For the latest Bluetooth LE 5.0 features please check the KW39/38/37.

Design Files

Software

Product Details

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

KW36-35: KW36/35/34: Arm^® Cortex^®-M0+|Kinetis^® KW36/35/34 Bluetooth Low Energy 32-bit MCUs | NXP

Features

Core

FRDM-KW36 Freedom Development Board includes MKW36Z512VHT4
Can be configured as Host or Shield for connection to Host Processor

Power Management

Supports all DC-DC configurations

Connectivity

CAN connectivity support
LIN connectivity support

Wireless

PCB inverted F-type antenna and SMA RF Connector

Debug

OpenSDA
JTAG

Sensors

Onboard NXP FXOS8700CQ digital sensor
3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

Tools and OS Support

Serial Flash for OTA firmware upgrades
Full MCUXpresso support

FCC Part15 and EN300 328 compliant

Minimum number of matching components

Buy Options

Click to expand

FRDM-KW36
Active
FRDM-KW36.
- 1 FRDM-KW36 Freedom development board
- 1 USB Cable

$86.25 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 13
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Printed Circuit Boards and Schematics
FRDM-KW36 Schematics Files

PDFRev 0Sep 11, 2018 08:54:001.0 MBFRDM-KW36-RevB1

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
FRDM-KW36 Design Files

ZIPRev 0Sep 24, 2018 12:27:005.1 MBFRDM-KW36-REVB1

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

Quick reference to our software types.

1-5 of 7 software files

Development IDEs and Build Tools
MCUXpresso Integrated Development Environment (IDE)Featured

Download Options
BSPs and Device Drivers
MCUXpresso SDK Builder for the KW36 Freedom Board

EXTERNALRev 1Feb 9, 2021 13:21:001 KBMCUXPRESSO-SDK-FRDM-KW36

Download
Connectivity Software
Test Tool for Connectivity Products

EXERev 12.9.2.2Oct 2, 2020 08:29:0092.4 MBTest_Tool_12.9.2.2

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Demo Software
Application Software for the External MCU connected to the NBP9

ZIPRev 0.1Aug 30, 2022 19:35:005.2 MBNBP9_demo_package

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Debugging and Visualization Tools
IoT Toolbox – Apple iOS app

HTMLRev 0May 8, 2019 00:00:006 KBIoT-Toolbox-Apple-iOS-app

Download
Debugging and Visualization Tools
IoT Toolbox - Google Android app

HTMLRev 0May 8, 2019 00:00:0015 KBIoT-Toolbox-Google-Android-app

Download
Software Development Resources
Connectivity Tool Suite

Download Options

Show All

Note: For better experience, software downloads are recommended on desktop.

Support

What do you need help with?

Recommended Communities

Kinetis Microcontrollers

Freedom Development Kit for Kinetis® KW36/35/34 MCUs

Product Details

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

Features

Core

Power Management

Connectivity

Wireless

Debug

Sensors

Tools and OS Support

Buy Options

FRDM-KW36 Active

Documentation

Filter by

Application Note (15)

MKW4xZ/3xA/2xZ DCDC Power Management[AN5025]

Kinetis MKW36 Power Consumption Analysis[AN12180]

FRDM-KW36Z RF System Evaluation Report for BLE Applications[AN12076]

KW36 - Integrating the OTAP Client Service into a Bluetooth LE Central Device[AN12970]

FSCI Blackbox with MCU Host Bluetooth LE Temperature Sensor[AN12896]

Integrating the OTAP Client Service into a Bluetooth LE Peripheral Device[AN12775]

Memory Pool Optimizer on MKW3xA/KW3xZ[AN12600]

FRDM-KW36 Co-existence with RF System Evaluation Report for Bluetooth® Low Energy Application[AN12256]

Hardware Design Considerations for MKW35A/36A/35Z/36Z Bluetooth Low Energy Devices[AN12181]

Hybrid (Dual-Mode) Bluetooth Low Energy and GenFSK Heart Rate Sensor Application[AN12415]

Migration Guide from MKW36Z512xxx4 to MKW35Z512xxx4[AN12252]

Multiple Connections in Bluetooth LE Peripheral Device[AN12405]

Multiple Connections in Bluetooth LE Central Device[AN12414]

Using MCUXpresso SDK CAN and LIN Drivers to Create a Bluetooth LE-CAN and Bluetooth LE-LIN Bridges on KW36/KW35[AN12273]

Use of 40-bit MAC Address in Kinetis® Wireless Microcontrollers[AN12272]

Application Note Software (5)

Application note software for AN12970[AN12970SW]

Application Note software for AN12896[AN12896SW]

Application note software for AN12775SW[AN12775SW]

Hybrid Heart Rate Sensor and GenFSK Device Demos[AN12415-SW]

Bluetooth Low Energy - CAN - LIN Bridge Demo[AN12273-SW]

Data Sheet (2)

MKW36Z/35Z Data Sheet[MKW36Z512]

MKW36A/35A/34A Data Sheet[MKW36A512]

Errata (1)

Mask Set Errata for Mask 1N41U[KINETIS_W_1N41U]

Legal (1)

European Union Declaration of Conformity[REDKW36]

Quick Reference Guide (1)

FRDM-KW36 Quick Reference Guide[FRDM-KW36-QSG]

Reference Manual (1)

MKW36/35/34 Reference Manual[MKW36A512RM]

User Guide (3)

FRDM-KW36 Freedom Development Board User's Guide[FRDMKW36UG]Getting Started

Getting Started with the FRDM-KW36[NGS-FRDM-KW36]Getting Started

FRDM-KW36 Minimum BoM Development Board User’s Guide[MiniBoMKW36UG]Getting Started
