FRDM Development Board for MCX N94/N54 MCUs

FRDM-MCXN947 Active

Roll over image to zoom in

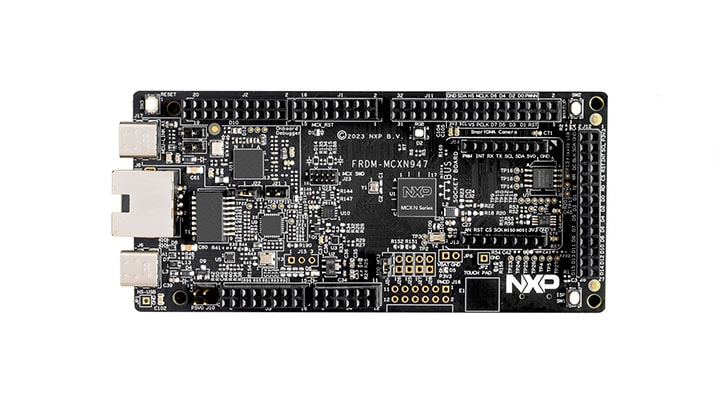

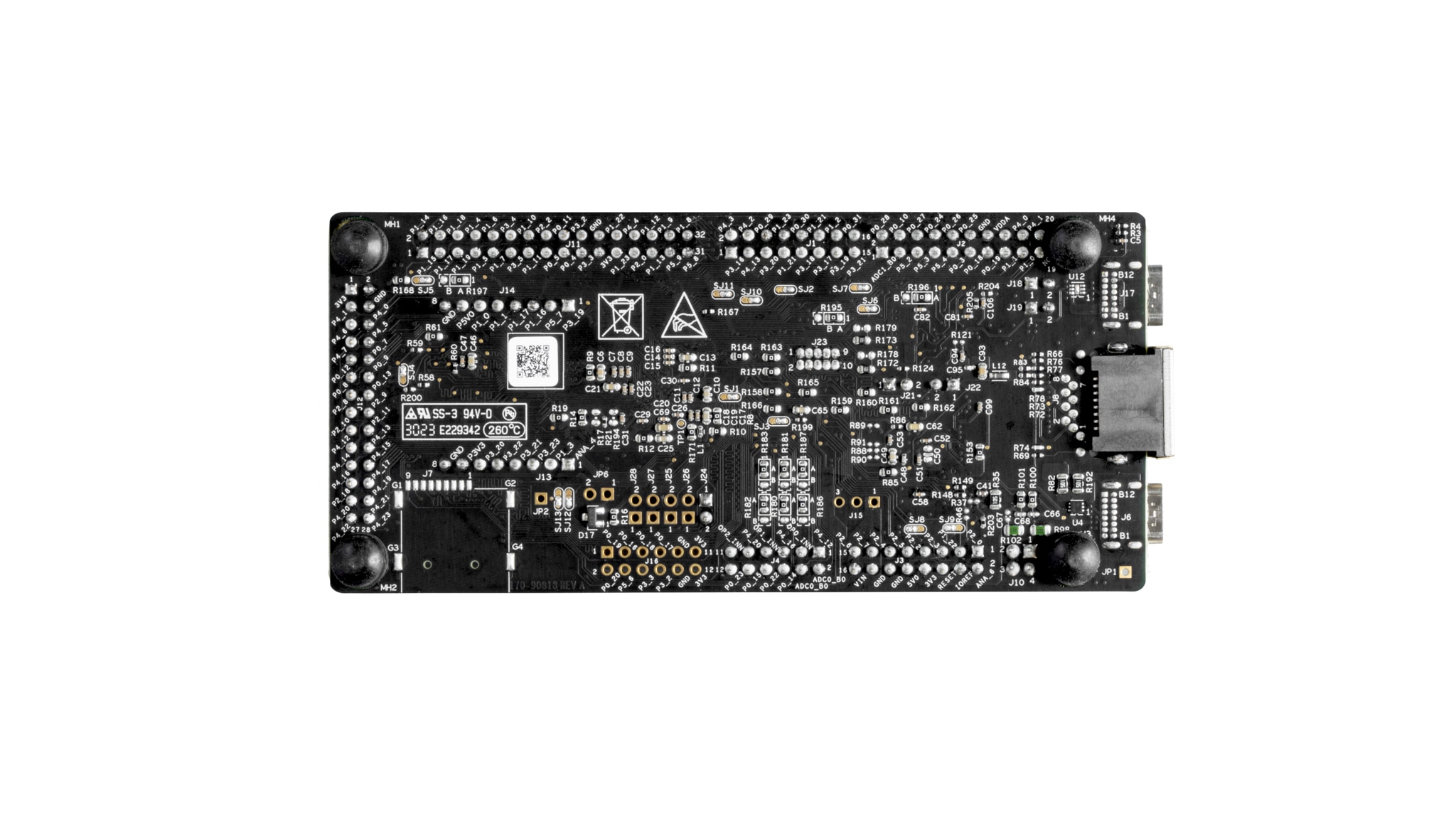

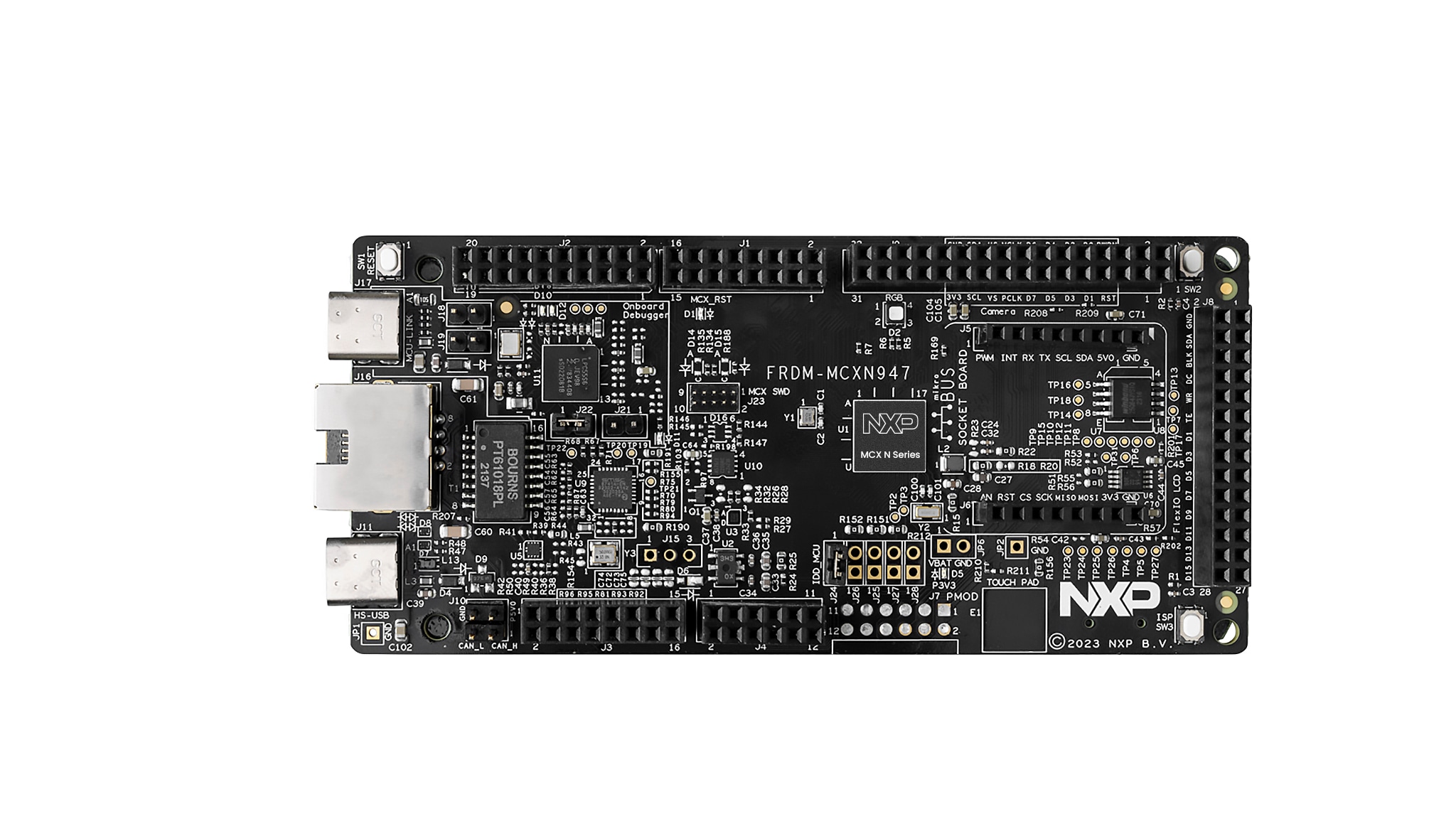

FRDM-MCXN947 are compact and scalable development boards for rapid prototyping of MCX N94 and N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXN947 Block Diagram

FRDM-MCXN947 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX N Series Microcontrollers

  • MCX-N94X-N54X: MCX N94x/54x Highly Integrated Multicore MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

Sensors

Accelerometers

  • FXLS8971CF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer
  • FXLS8961AF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer

Analog and Mixed Signal

Analog Front-End

  • NAFEx3388: Highly Configurable 8/4 Channel 24/16 bits ±25 V Universal Input Analog Front-End with Excitation Sources

Features

Microcontroller

  • MCX-N947 Dual Arm® Cortex® -M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash
  • Accelerators:
    • Neural Processing Unit, PowerQuad, Smart DMA, etc.

Memory Expansion

  • *DNP Micro SD card socket

Connectivity

  • Ethernet Phy and connector
  • HS USB Type-C connectors
  • SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
  • WIFI connector (PMOD/mikroBUS, DNP)
  • CAN-FD transceiver

Debug

  • On-board MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Sensor

  • P3T1755 I3C/I²C Temp Sensor, Touch Pad

Expansion Options

  • Arduino® Header (with FRDM expansion rows)
  • FRDM Header
  • FlexIO/LCD Header
  • SmartDMA/Camera Header
  • Pmod™ *DNP
  • mikroBUS™

User Interface

  • RGB user LED, plus Reset, ISP, Wakeup buttons

Buy Options

FRDM-MCXN947-Image

Click to expand

  • FRDM-MCXN947
    Active

  • FRDM Development Board for MCX N94 and N54 MCUs.

  • Kit Contains:

    • FRDM-MCXN947
    • Quick Start Guide
    • USB Cable Type-C
  • $25.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
