VR5100 Programming Board

KITVR5100FRDMPGM Preproduction

Roll over image to zoom in

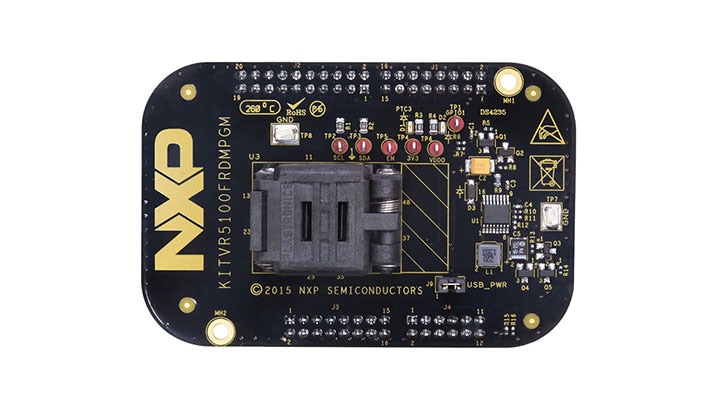

The KITVR5100FRDMPGM Programming Board is an easy-to-use circuit board allowing the user to program the VR5100 Power Management IC. The programming board integrates the popular KL25Z FRDM Board. The FRDM Board is used as an interface between the GUI and the VR5100. Analog-to-Digital Converters (ADCs) in the KL25Z FRDM Boards are used to monitor the regulator voltages through the GUI.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

i.MX 6 Processors

  • i.MX6UL: i.MX 6UltraLite Processor - Low-Power, Secure, Arm® Cortex®-A7 Core

Power Management

PMICs

  • VR5100: Multi-Output DC-DC Regulator for Low Power LS1 Communication Processors

Features

Connectivity

  • Socket for VR5100 Power Management IC

  • Integrated KL25Z FRDM Board for monitoring and control through PC

Components

  • Green LED to indicate power good
  • Red LED to indicate programming
