A5G08H800W19N|865–960 MHz, 112 W Avg, 50 V

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

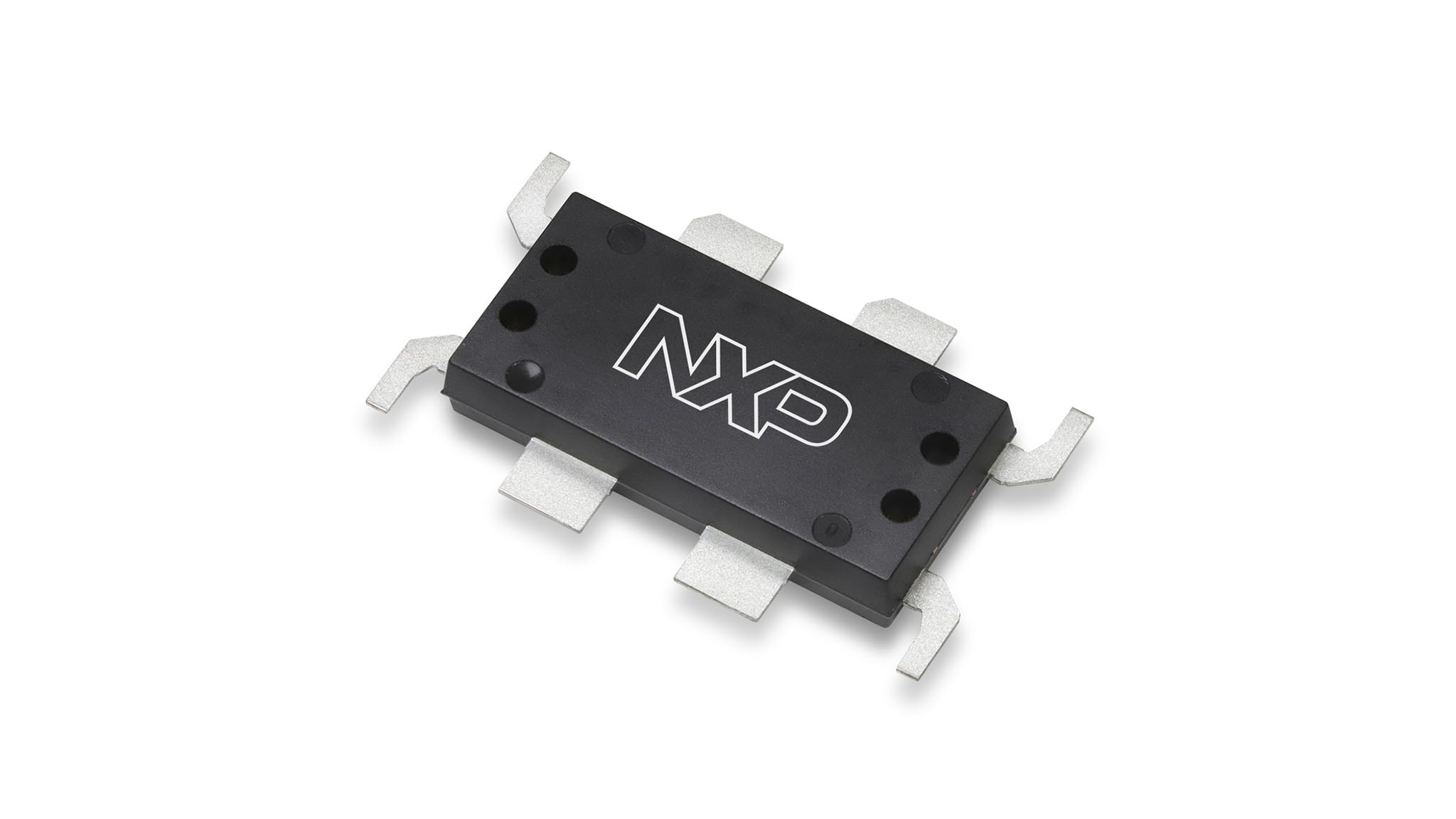

Roll over image to zoom in

This 112 W asymmetrical Doherty RF power GaN transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 865 to 960 MHz.

This part is characterized and performance is guaranteed for applications operating in the 865 to 960 MHz band. There is no guarantee of performance when this part is used in applications designed outside of these frequencies.

Data Sheet

Application Notes

Product Details

Features

High terminal impedances for optimal broadband performance
Advanced high performance in-package Doherty
Improved linearized error vector magnitude with next generation signal
Able to withstand extremely high output VSWR and broadband operating conditions
Plastic package
RoHS compliant

RF Performance Table

900 MHz

Typical Doherty Single−Carrier W−CDMA Production Test Fixture Performance: V_DD = 50 Vdc, I_DQA = 350 mA, V_GSB = –5.0 Vdc, P_out = 112 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.⁽¹⁾

Frequency	G_ps (dB)	η_D (%)	Output PAR (dB)	ACPR (dBc)
865 MHz	19.3	60.5	8.8	–28.0
913 MHz	19.5	59.9	8.6	–28.8
960 MHz	19.1	58.7	8.3	–30.5

1. All data measured with device soldered to NXP production test fixture.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

4 documents

Compact List

Thermal Characterization Methodology of RF Power Amplifiers - Application Note[AN1955]

PDFJul 11, 2024Rev 2
AN1907 Solder Reflow Attach Method for High Power RF Devices in Over-Molded Plastic Packages[AN1907]

PDFMay 13, 2009Rev 3

A5G08H800W19N 865–960 MHz, 112 W Avg, 50 V Data Sheet[A5G08H800W19N]

PDFDec 21, 2023Rev 1

RF High Power GaN Solutions for 5G Infrastructure - Fact Sheet[MACROGANFS]

PDFMay 16, 2024Rev 0
