2110-2170 MHz, 11.5 W Avg., 28 V, 2 x W-CDMA, Lateral N-Channel RF Power MOSFETs

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MRF6S21050LR3 and MRF6S21050LSR3 are designed for W–CDMA base station applications with frequencies from 2110 to 2170 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN–PCS/cellular radio and WLL applications.

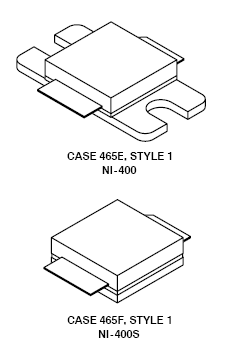

See product image

Data Sheet

Application Notes

Product Details

Features

Typical 2–Carrier W–CDMA Performance: V_DD = 28 Volts, I_DQ = 450 mA, Pout = 11.5 Watts Avg., f = 2157 MHz, Channel Bandwidth = 3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.
Power Gain: 16 dB
Drain Efficiency: 27.7%
IM3 @ 10 MHz Offset: –37 dBc in 3.84 MHz Channel Bandwidth
ACPR @ 5 MHz Offset: –40 dBc in 3.84 MHz Channel Bandwidth
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2140 MHz, 50 Watts CW Output Power
Characterized with Series Equivalent Large–Signal Impedance Parameters
Internally Matched for Ease of Use
Qualified Up to a Maximum of 32 V_DD Operation
Integrated ESD Protection
Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications
RoHS Compliant
In Tape and Reel. R3 Suffix = 250 Units per 32 mm, 13 inch Reel.

Documentation

Quick reference to our documentation types.

4 documents

Compact List

Mounting Method with Mechanical Fasteners for the MRF19090 and Similar Packages Application Note[AN1923]

PDFApr 10, 2001Rev 0

MRF6S21050LR3, MRF6S21050LSR3 2110-2170 MHz, 11.5 W Avg., 28 V, 2 x W-CDMA Lateral N-Channel RF Power MOSFETs[MRF6S21050L]

PDFDec 29, 2008Rev 2

98ARH98301A, NI-C, 20.0x9.0x3.66, Pitch 0.6, 3 Pins[SOT1812-1]

PDFFeb 29, 2016Rev G
98ARH98300A, 465F-01, NI-400S[98ARH98300A]

PDFJan 4, 2003Rev E
