In response to the needs of design engineers tasked with pushing the performance envelope, packing in a lot of connectivity options and providing robust security in mobile device designs, NXP^® presents the i.MX27 multimedia applications processor. Derived from the popular i.MX21 processor and based on the Arm926EJ-S™ core, the i.MX27 processor adds an h.264 D1 hardware codec for high-resolution video processing, an Ethernet 10/100 MAC, security, plug-and-play connectivity and more power management features. This rich feature set makes it an excellent choice for video- and voiceover- IP (V2IP) cordless and mobile phones, intelligent remote controls, point-of-sale terminals and many other wireless applications.

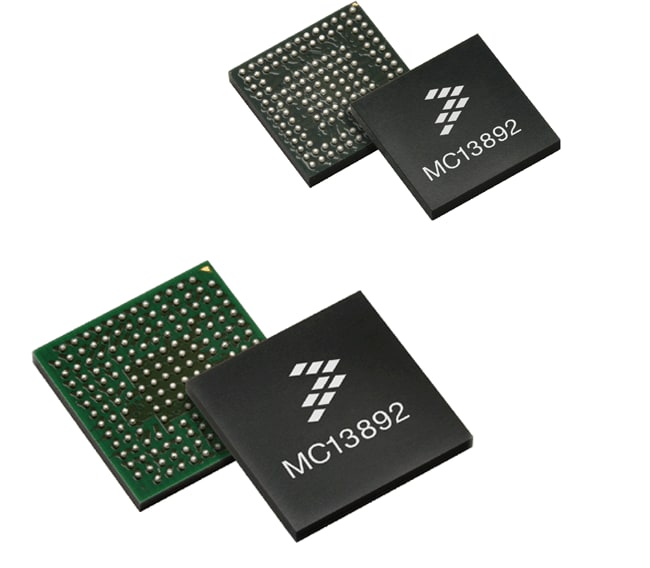

The i.MX27 is supported by a companion NXP power management IC (PMIC), MC13892.

Important i.MX27 Errata Update

Data Sheet

Reference Manual

Product Details

Block Diagram

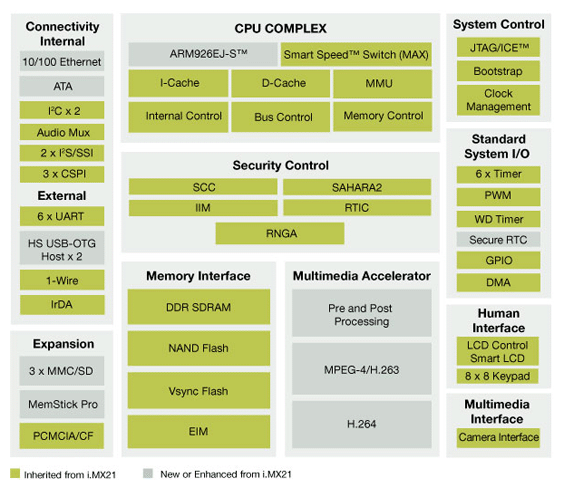

i.MX27 Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

Arm926EJ-S™ 400 MHz core
16 KB L1 I-Cache and D-Cache
16-channel DMA
ETM real-time debug
Smart Speed switch

Multimedia

MPEG^{^®}-4 H.263/H.264 D1 HW Codec
Pre- and post-processing
High-speed CMOS sensor interface

Connectivity

10 and 100 Mbps Ethernet/IEEE802.3MAC
USB OTG high speed, host x 2
3 x MMC/SD, Memory Stick-Pro
PCMCIA/CF
ATA-6 (HDD) interface
Audio MUX
IrDA, keypad, 1-wire
Configurable SPI x 3, SSI/I2S x 2, UART x 6

Product Longevity

This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch

Software Update

There are no plans to release WinCE 5.0 for the i.MX27 (alphas, betas, and patches have only been released). Instead, we have a full version of WinCE 6.0 for the i.MX27 ADS board. If you have any issues, please contact your local sales/marketing representative.
