NXP’s Arm9™-based i.MX258 applications processor targets industrial and general embedded applications requiring high levels of security. Featuring an on-chip security engine, the i.MX258 is ideal for building highly secure devices for which it is critical that only code intended for that device will run on that device. Highly specific tamper detection circuitry is engineered to quickly erase confidential information if a device threat is detected.

The i.MX258 security capabilities and connectivity provides a robust yet cost-effective solution for point-of-sale (POS), biometrics and secure residential gateways (e.g. smart meters) devices.

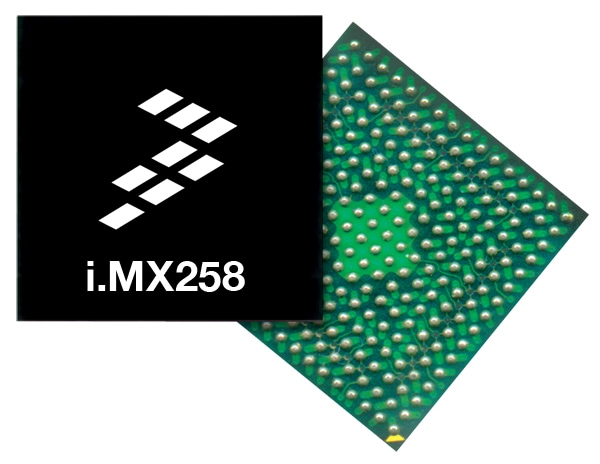

See product image

Reference Manual

Product Details

Block Diagram

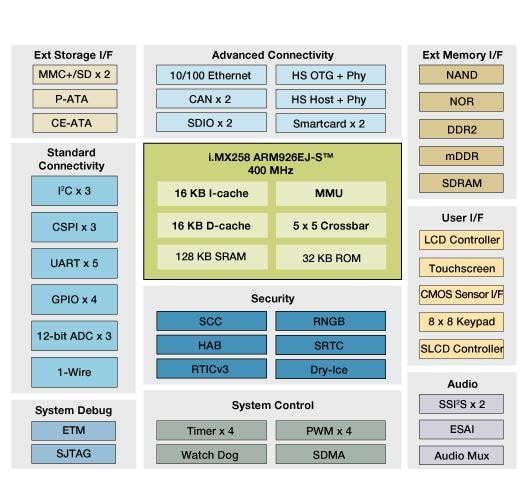

i.MX258 Multimedia Applications Processor Block Diagram

i.MX258 Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

Arm926EJ-S™
400 MHz maximum speed
128 KB Integrated SRAM
16 KB I/D L1 Cache

Multimedia

Security Engine
LCD Controller
Resistive Touchscreen Controller
CMOS Sensor Interface

Connectivity

External memory interface: DDR2, mDDR, SDRAM, mSDRAM, NOR, SLC/MLC NAND
10/100 Ethernet MAC
2 x FlexCan Controllers
480Mbps USB 2.0 OTG + PHY
480Mbps USB 2.0 Host + PHY
2 x MMC+/SD/SDIO
5 x UART, 3 x CSPI, 3 x I2C, 2 x SSI/I2S, ESAI
PATA/CE-ATA
2 x Smartcard Interfaces
3 x12-bit ADC
3.3V General Purpose I/O

Technology

0.8mm MAPBGA 400-pin package
-40 to +85C

Product Longevity

This product is included in NXP^{^®}.s product longevity program, with assured supply for a minimum of 15 years after launch
