8-bit with LCD Driver LE MCUs

RS08LE No Longer Manufactured
  • This page contains information on a product that is not recommended for new designs.

Roll over image to zoom in

Our RS08 microcontrollers (MCUs) with LCD drivers are highly integrated but extremely cost-effective. The MC9RS08LA8 and MC9RS08LE4 MCUs are intended for small appliances, medical equipment and other industrial and multi-market applications. The LA and LE families provide design flexibility with a large segment-based (8x mode) driver and an integrated charge pump to provide true system-on-chip (SoC) functionality.

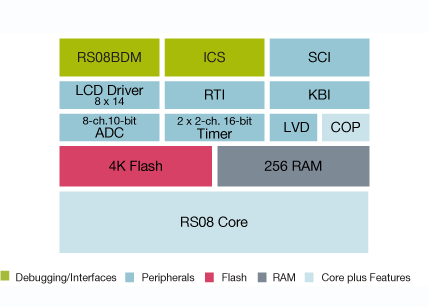

Product Details

Features

8-bit RS08 Central Processor Unit (CPU)

  • Up to 10 MHz (bus frequency) RS08 CPU at 2.7V for 100 ns minimum instruction time
  • Subset of HCS08 instruction set with added BGND instruction

LCD Driver and Internal Charge Pump

  • Integrated LCD driver supports both standard 3V and 5V LCD glass
  • Configurable display for 8 x 14 or 4 x 18 segment display
  • Capable of running in STOP mode
  • Front plane (FP) and black plane (BP) re-assignments
  • LCD driver pins are muxed with GPIO and other functions

On-Chip Memory

  • Up to 4 KB flash over full operating voltage and temperature
  • 2.7V to 5.5V RAM

Peripherals

  • Analog-to-digital converter (ADC)
    • 2.5 µs conversion time
    • Automatic compare function
    • Internal temperature sensor
    • Internal bandgap reference channel
    • operation in STOP mode
    • 8-channel,10-bit resolution
  • Timer
    • two 2-channel selectable input capture
    • output compare
    • buffered-edge or center-aligned PWM on each channel
  • Serial communications interface (SCI)—module offering asynchronous communications,13-bit break option, flexible baud rate generator, double buffered transmit and receive and optional H/W parity checking and generation
  • Analog comparator with selectable interrupt on rising, falling or either edge of comparator output; compare option to fixed internal bandgap reference voltage; outputs can be optionally routed to TPM module (LA8 only)
  • Serial peripheral interface (SPI)—one module with full-duplex or single-wire bidirectional; double-buffered transmit and receive; leader or follower mode; MSB-first or LSB-first shifting (LA8 only)

Input/Output

  • 26 general purpose input/output (GPIO), one output-only pin and one input-only pin
  • Eight keyboard interrupt (KBI) pins with selectable polarity

System Protection

  • Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source
  • Low-voltage detection with reset or interrupt
  • Illegal op code and illegal address detection with reset
  • Flash protection

Development Support

  • Single-wire background debug interface
  • Breakpoint capability

Documentation

Quick reference to our documentation types.

Filters

1-10 of 21 documents

Compact List

Application Note (10)
Application Note Software (1)
Data Sheet (1)
Fact Sheet (2)
Reference Manual (1)
Technical Notes (2)
User Guide (3)
White Paper (1)

Design Files

Hardware

Quick reference to our board types.
Filters

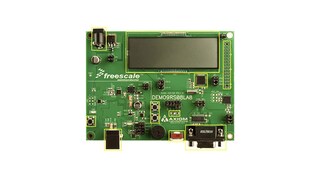

2 hardware offerings
