Integrated V2 ColdFire® Microprocessor
- This page contains information on a product that is not recommended for new designs.
The MCF5235 ColdFire® V2 integrated microprocessor combines the popular ColdFire V2 core with a 16-channel enhanced time processing unit (eTPU), a 10/100 Ethernet MAC and other communications peripherals along with hardware-accelerated encryption. The mix of functionality in the MCF523x family addresses increased application complexity requiring more system throughput as well as networked applications that require a high level of security.
Providing up to 144 (Dhrystone 2.1) MIPS @ 150 MHz, this cost-effective controller enables networked and stand-alone complex real-time control applications such as industrial control, manufacturing equipment and robotics.
The family of MCF523x devices gives current users of the MC68332 a natural migration path to higher performance and networking support while enabling a new generation of products with increased functionality at a similar price point as earlier versions.
Product Details

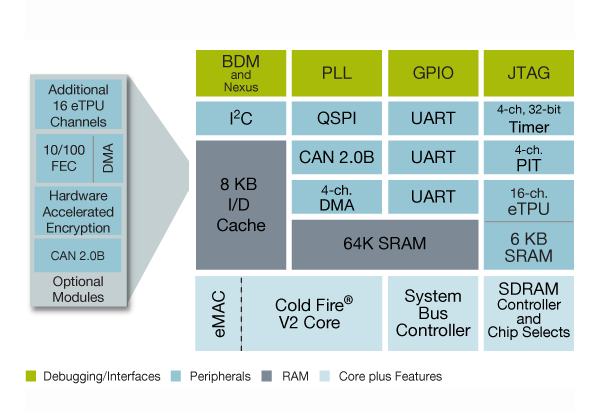

Block Diagram
Features
- ColdFire® V2 core with enhanced multiply accumulate module and performance up to 144 (Dhrystone 2.1) MIPS @ 150 MHz
- 32-bit non-multiplexed bus with up to eight chip selects (chip select support for paged mode flash memories)
- 64 KB internal SRAM
- 8 KB of configurable I/D-Cache
- 16-channel eTPU with 6 KB of SRAM
- Two-bank SDRAM controller
- Two CAN 2.0 B (CAN 2 muxed with UART 3)
- 10/100 Mbps fast Ethernet controller
- Three universal asynchronous receiver/transmitters (UARTs)
- Queued serial peripheral interface (QSPI)
- I²C bus interface
- Four-channel 32-bit timers with direct memory access (DMA)
- Four-channel DMA controller
- System Integration (pulse-lock loop, software watchdog)
- Hardware accelerated encryption
- Temperature range: -40°C to +85°C
- 256-MAPBGA package
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
Related products
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-10 of 32 documents
Compact List
Application Note (11)
-
Programming the eTPU[AN2848]
Application Note Software (4)
Data Sheet (1)
-
MCF523x Integrated Microprocessor Hardware Specification - Data Sheet[MCF5235EC]Featured
Errata (1)
Fact Sheet (2)
-
PowerQUICC Integrates IEEE 1588 Time Synchronization[PQIEEE1588FS]
-
MCF5234 IEEE ® 1588 Precision Time Protocol Solution M5234BCCKIT - Fact Sheet[MCF5234IE1588FS]Featured
Product Brief (1)
Reference Manual (9)
-
eTPU Addendum - Reference Manual[ETPURMAD]
-
MCF5235 Reference Manual Errata[MCF5235RMAD]
-
MCF5235 - Reference Manual[MCF5235RM]Featured
-
ColdFire® ® Family Programmer’s - Reference Manual[CFPRM]Featured
Selector Guide (1)
-
32-bit ColdFire MCU and MPU Product Summary Page[BRCOLDFIRESUM]
User Guide (1)
White Paper (1)
Design Resources
Hardware
Quick reference to our
board types.
3 hardware offerings
-

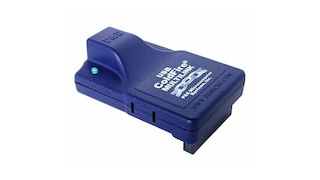

Emulators, Probes, and ProgrammersUSB ColdFire MultlinkFeatured
