Integrated ColdFire® Microprocessor with DMA

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MCF5206e integrated microprocessor combines a ColdFire^® V2 core with several peripheral functions such as a DRAM controller, timers, parallel and serial interfaces and system integration. This device is an enhanced version of the MCF5206. Not only does the MCF5206e provide a performance upgrade to the MCF5206 due to the increased 4 KB I-cache and 8 KB SRAM and increased frequency, but it also integrates an additional multiply-accumulate module (MAC), hardware divide and two-channel direct memory access (DMA) to the device while maintaining pin compatibility with the MCF5206.

Data Sheet

Reference Manual

Product Details

Block Diagram

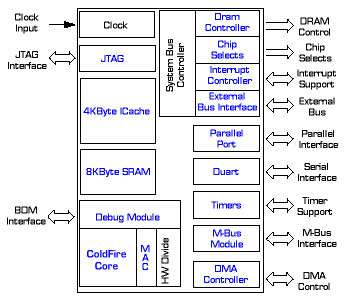

Integrated ColdFire MCF5206E Microprocessor with DMA Block Diagram

Get diagram PDF

Features

ColdFire^® V2 Core
MAC and divide unit
4 KB direct-mapped instruction cache
8 KB on-chip SRAM
DRAM controller, supports EDO and page node DRAMs
2-channel DMA controller
Two universal synchronous/asynchronous receiver/transmitters (UART)
Dual 16-bit general-purpose multimode timers
I²C compatible bus
System interface
System debug support
Fully static 3.3-volt operation with 5-volt tolerant inputs
160-pin QFP package pin-compatible with MCF5206
8-bit general purpose parallel I/O port
50 MIPS at 54 MHz
