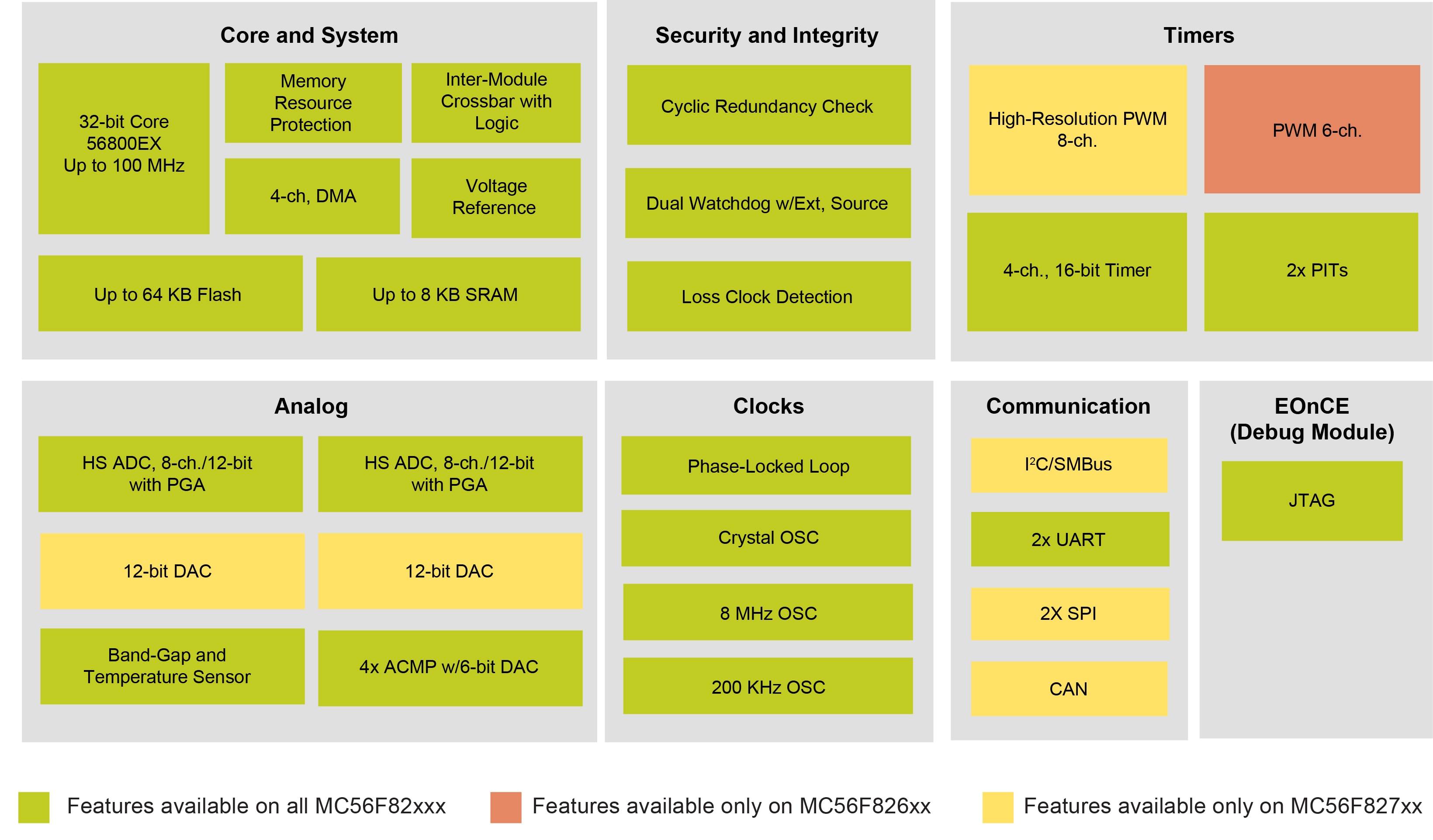

MC56F826xx and MC56F827xx Digital Signal Controllers
The MC56F82xxx DSP MCU family offers outstanding power consumption at runtime with exceptional performance, precision, and control.
- Targets high-efficiency digital power conversion (MC56F827xx) and advanced motor control (MC56F826xx) applications
- Delivers half the power with twice the performance for energy-efficient applications
- Reduces costs through higher switching frequencies
- Increases system safety by restricting user code from accessing key memory locations and peripherals reserved for supervisor access
- Enables compact PCB design for space-constrained applications while still providing the precision and control needed
Product Details
Features
- Low-power operation enables higher system efficiency due to lower power losses
- 5 mm x 5 mm package option enables compact PCB design for space-constrained applications while still providing the precision and control needed
- 50/100 MHz 32-bit core provides math capabilities needed for advanced power efficiency and motor control applications
- Single-cycle math computations, fractional arithmetic support, and parallel moves improve performance, driving tighter and faster control loops
- High-resolution PWM with 312 pico-second resolution enables higher switching frequencies, reducing cost and increasing efficiency
- Two 12-bit high-speed (HS) ADCs with up to 1.25 MSPS resolution improves system accuracy by reducing jitter on input values
- 32 KB to 64 KB flash memory provides scalability needed for key digital power and motor control applications
- Pin-to-pin compatible with the MC56F84xxx and MC56F824x/5x families for performance and peripheral scalability
- 5 volt-tolerant I/O provides design flexibility and system cost reduction
- Direct memory access (DMA) controller reduces core interruption, increasing performance
- Four analog comparators with integrated 6-bit DACs speed system event identification and emergency shutdown of the PWM outputs
- Memory protection capability increases system safety by restricting user code from accessing key memory locations and peripherals reserved for supervisor access
Related products
MC56F826xx and MC56F827xx Digital Signal Controllers
Digital Signal Controllers
Digital Signal Controller
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-10 of 66 documents
Compact List
Application Note (32)
Application Note Software (2)
-
Software file for AN5143[AN5143SW]
-
Software Example for AN4860[AN4860SW]
Brochure (2)
-
Motor Control for Industrial and IoT Applications Brochure[INDUSTRIAL-IOT-MOTOR-CONTROL-BR]
-
DSC Line Card[DSCMICROLNCD]Featured
Data Sheet (4)
-
MC56F82348 Data Sheet[MC56F82348MLH]
-
MC56F823xx Data Sheet - Data Sheet[MC56F823XX]
-
MC56F827xx Data Sheet - Data Sheet[MC56F827XXDS]Featured
-
MC56F826xx DataSheet[MC56F826XXDS]Featured
Errata (1)
-
Mask Set Errata for Mask XN33G[MC56F82XXX_XN33G]
Fact Sheet (2)
-
Embedded Software and Motor Control Libraries[EMBEDSFWRLBRYFS]
-
MC56F82xxx DSC Family[MC56F82XXXFS]Featured
Product Brief (1)
-
MC56F82XXX Product Brief - Product Brief[MC56F82XXXPB]
Reference Manual (7)
-
MC56F823xx Reference Manual - Reference Manual[MC56F823XXRM]
-
DSP56800E and DSP56800EX - Reference Manual[DSP56800ERM]
-
MC56F827xx Reference Manual - Reference Manual[MC56F827XXRM]Featured
-
MC56F826xx Reference Manual[MC56F826XXRM]Featured
Technical Notes (2)
-
EB813SW[EB813SW]
User Guide (13)
-
HVPMC56F82748 User’s Guide[HVPMC56F82748UG]
-
56800Ex_MLIB, Math Library User’s Guide[56800EX_MLIB]
-
56800Ex_GFLIB, General Functions Library User’s Guide[56800EX_GFLIB]
-
56800Ex_MCLIB, Motor Control Library User’s Guide[56800EX_MCLIB]
-
56800Ex_ACLIB, Advanced Control Library User's Guide[56800EX_ACLIB]
-
56800Ex_GDFLIB, General Digital Filters Library User's Guide[56800EX_GDFLIB]
-

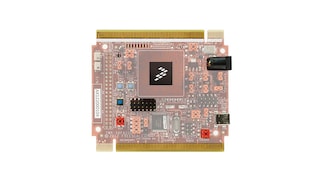

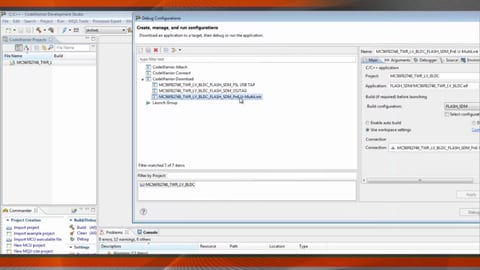

TWR-56F8200 Tower® Board - User Guide[TWR56F8200UG]
-
56800E General Functions Library User's Reference Manual[56800E_GFLIB]
-
56800E Motor Control Library User's Reference Manual[56800E_MCLIB]
-
56800E Advanced Control Library User's Reference Manual[56800E_ACLIB]
-
56800E Family IEEE-754 Compliant Floating-Point Library[56800E754FPL04UG]
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 12 hardware offerings
-
Evaluation and Development BoardsTower System Module for MC56F826xx and MC56F827xxFeatured
Preproduction -
Emulators, Probes, and ProgrammersUniversal Multilink Development Interface
Active -
Emulators, Probes, and ProgrammersUniversal Multilink FX High-Speed Development Interface
Active -
Emulators, Probes, and ProgrammersDSC Multilink
Active -
Emulators, Probes, and ProgrammersPEmicro Cyclone programmer
Active
Software
Quick reference to our software types.
1-5 of 16 software files
-
Application Example Software
MC56F827xx Example Code
-
BSPs and Device Drivers
TFS Flash Driver Software for Kinetis and ColdFire+ Microcontrollers
-
Code Snippets
This SW demonstrates ePWM module in complementary mode configuration with varying sine duty using the board XTWR-MC56F824
-
Code Snippets
This SW initializes HSCMP (CMP_B) module
-
Code Snippets
This SW initializes DAC module and generates a ramp output
