Performance Level Digital Signal Controllers, USB FS OTG, CAN FD
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Digital Signal Controllers
The MC56F84xxx is based on our 32-bit DSP core.
A high speed digital signal controller, offering exceptional precision, sensing and control for a very efficient digital power conversion and advanced motor control applications.
The MC56F84xxx includes advanced high-speed and high-accuracy peripherals.
Product Details

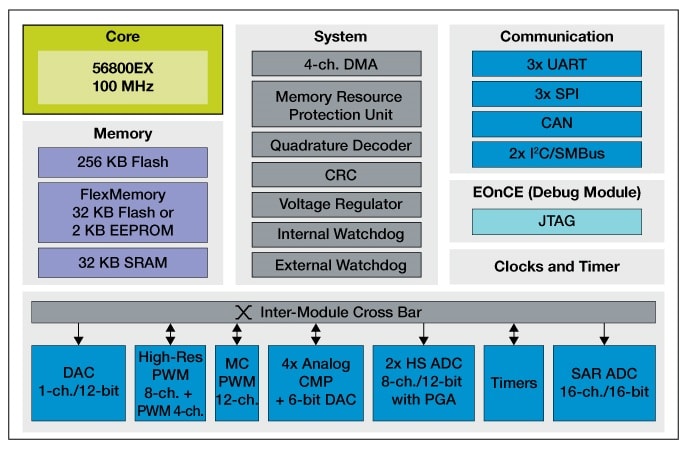

Block Diagram
Features
- 100 MHz/100 MIPS 32-bit DSP core
- 64 KB to 256 KB flash memory flexibility and Direct Memory Access (DMA) controller
- Single-cycle math computations, fractional arithmetic support and parallel moves
- Up to 24 PWM channels with input capture
- Hi-res PWMs with 312 pico-second resolution
- 2x 12-bit high-speed (HS) ADCs with 3.3 Msps resolution
- 1x 16-bit ADC with 1 Msps resolution
- 4 analog comparators with integrated 6-bit DACs speed system event identification and shutdown of the PWM outputs
- 1 12-bit DAC with auto waveform generation
- Various communication peripherals: 3 QSCIs; 3 QSPIs; 2 I²C/SMBus; 1 FlexCAN
- This product is included in our product longevity program, with assured supply for a minimum of 15 years after launch
