MCF51EM256 32-Bit MCU for Smart Meter Applications
MCF51EM256 is NXP®.s smart-meter-on-a-chip 32-bit ColdFire® V1 core microcontroller (MCU) with embedded LCD controller, 16-bit analog-to-digital converter (ADC), and metrology-specific peripherals optimized for smart meter applications. MCF51EM256 comes with a full suite of hardware and software tools that make development quick and easy.
Product Details

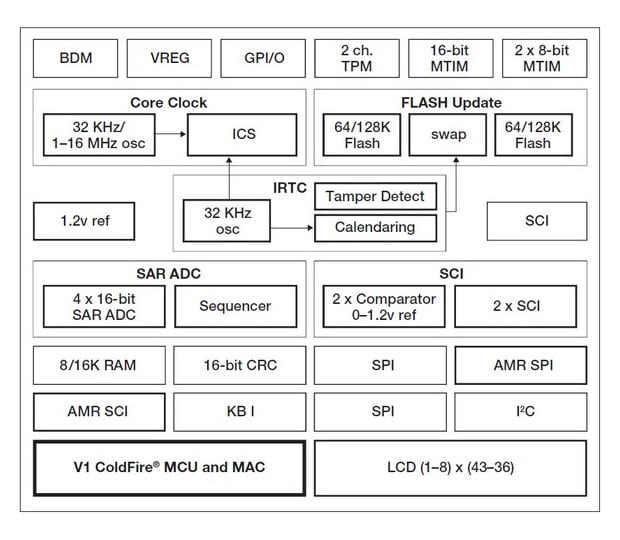

Block Diagram
Features
- 32-bit V1 ColdFire® CPU offering 47 MIPS at 50 MHz 3.3-volt single supply
- Up to 256 KB flash (dual bank)
- Up to 16 KB SRAM
- Low-power operation mode
- 4 x 16-bit segmentation and reassembly (SAR) ADC
- 288 segment LCD driver
- Up to 50 general purpose input/output (GPIO)
- Integrated real-time clock (RTC)
- Automatic meter reading (AMR) serial peripheral interface (SPI)
- Background debug mode (BDM) for in-circuit debugging
- The MCF51EM256 is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
