Intelligent Motion-Sensing Platform
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

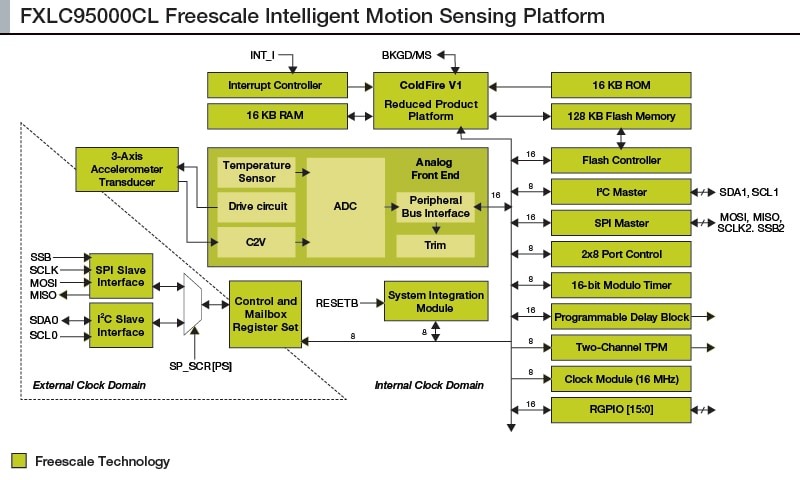

The NXP® FXLC95000CL motion-sensing platform integrates a MEMS accelerometer and a 32-bit ColdFire® MCU, providing autonomous sensing simultaneously with local compute capability to manage other sensors and offer maximum differentiated flexibility.
- The FXLC95000CL is first to market with the sensing hub embedded that is also programmable for customer-specific applications and algorithms
- Up to 16 sensor inputs are easily managed by the FXLC95000CL sensing hub allowing calibration, compensation and sensor functions to be offloaded from the application processor
- For additional information and sample availability, contact your local NXP Sales Office or NXP Authorized Distributor.
Related products
Product Details
Documentation
Quick reference to our documentation types.
1-10 of 16 documents
Brochure (1)
-
Motion and Pressure Sensors for Medical Applications - Brochure[MEDSENSORSA4BR]
Data Sheet (1)
Errata (1)
-
ISF Errata, Release 1.1 for FXLC95000[ISF95KSWER]
Fact Sheet (3)
-
Sensor Solutions[SNSRSOLUTNTMFS]
-
FXLC95000CL Frequently Asked Questions[FXLC95000CLFAQ]
-
FXLC95000CL NXP® Intelligent Motion-Sensing Platform[FXLC95000CLFS]
Reference Manual (3)
-
API Reference Manual for the ISF v1.1 for the FXLC95000. (Unzip and open ISF_1.1_API_Reference.html)[ISF1P195K_API_REFERENCE_RM]
-
Intelligent Sensing Framework v1.1 for the FXLC95000 Software Reference Manual.[ISF1P195K_SW_REFERENCE_RM]
Release Note (1)
-
Release Notes for the Intelligent Sensing Framework v1.1 for the FXLC95000[ISF1P195K_CORE_LIB_RELEASE_RN]
Selector Guide (1)
-
Sensor Product Selector Guide[SENSSELECT]
Supporting Information (1)
-
Installation Instructions for the Intelligent Sensing Framework v1.1 for the FXLC95000[ISF1P195K_CORE_LIB_INSTALL_INS]
User Guide (4)
-
Installation Instructions for Installing CodeWarrior® S19 files onto the FXLC95000[ISF1P195K_S19_INSTALL_INS]
-
FXLC95000CL - Quick Start Guide[FXLC95000QSG]
Design Resources
Software
Quick reference to our software types.
1 software file
-
Debugging and Visualization Tools

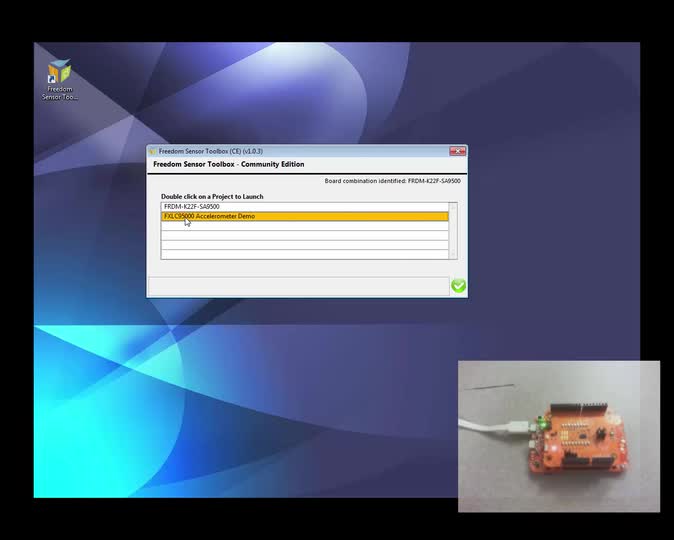

Freedom Sensor ToolBox - Community Edition (STB-CE)
Note: For better experience, software downloads are recommended on desktop.
