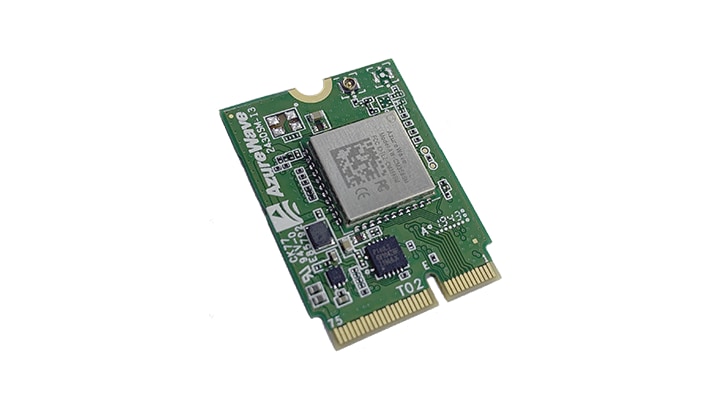

Azurewave Wi-Fi® 5 (802.11ac) + Bluetooth® chipset-based M.2 evaluation board: AW-CM358MA

AW-CM358

Roll over image to zoom in

The AW-CM358MA is a highly integrated NXP 88W8987 chipset-based WLAN and Bluetooth module, which support 802.11a/b/g/n/ac 1x1 and Bluetooth 5 combo module. It enables a high performance. Cost effective, low power, compact solution. The host interface supports SDIO for WLAN and UART for Bluetooth.

Block Diagram

Azurewave AW-CM358MA block diagram

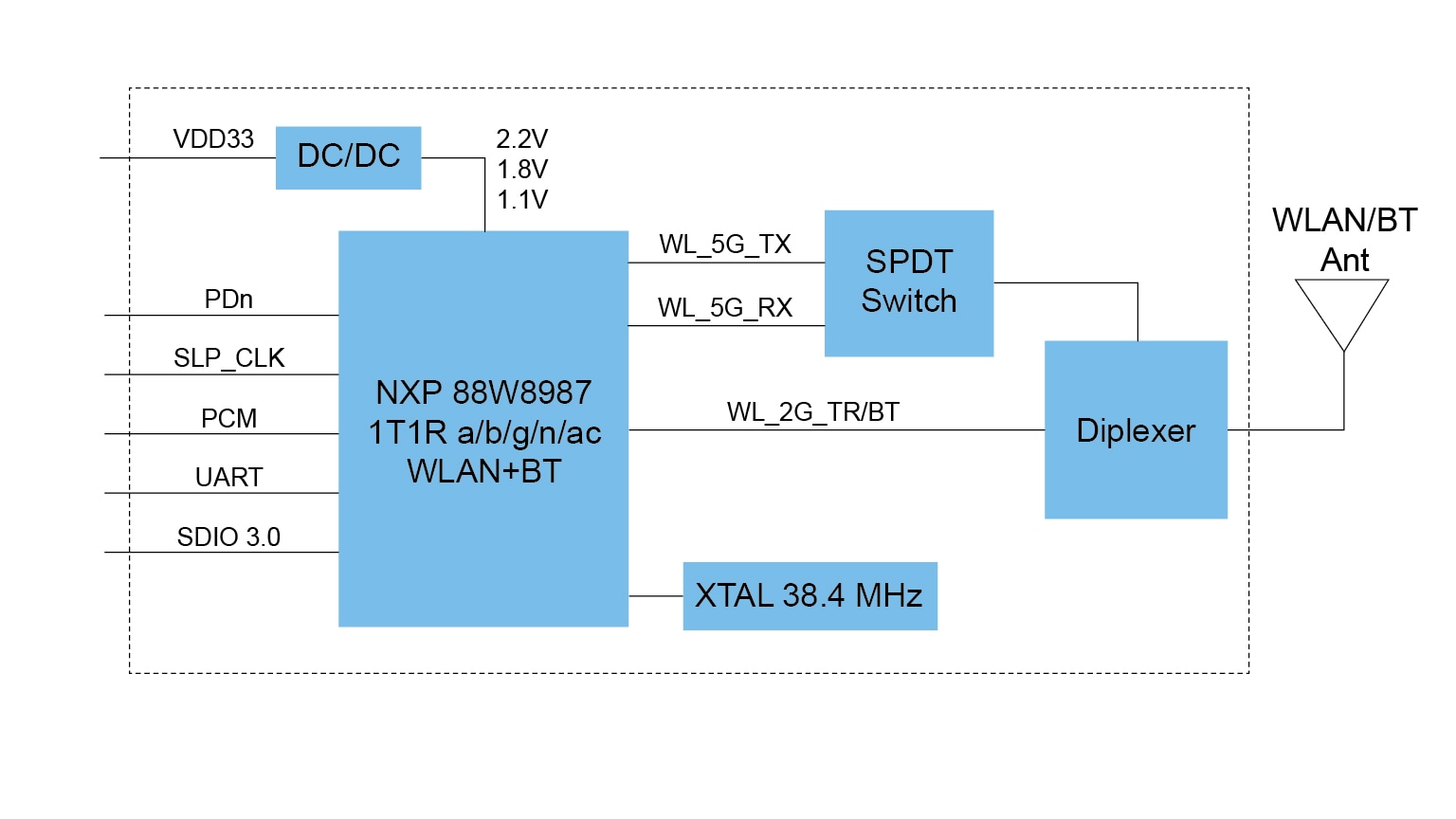

AW-CM358MA Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT500: i.MX RT500 Crossover MCU with Arm® Cortex®-M33, DSP and GPU Cores
  • i.MX-RT1060: i.MX RT1060: Crossover MCU with Arm® Cortex®-M7

i.MX 8 Applications Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7
  • i.MX8M: i.MX 8M Family - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
  • i.MX8X: i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR

i.MX 6 Processors

  • i.MX6DL: i.MX 6DualLite Processors – Dual-Core, 3D Graphics, HD Video, Arm® Cortex®-A9 Core

Features

Wireless Standard

  • IEEE802.11 a/b/g/n/ac

Bluetooth Standard

  • Bluetooth 5

Interface

  • SDIO for WLAN and UART for Bluetooth

Antenna No.

  • 1x1

Form-factor

  • M.2 2230 E key

Characteristics

  • Size: 22 mm x 30 x 2.45 mm
  • TX Power@2.4G: 12 ± 2 dBm (HT20 MCS7)
  • TX Power@5G: 8 ± 2 dBm (VHT80 MCS9)
  • RX Sensitivity@2.4G: -67 dBm (HT40 MCS7)
  • RX Sensitivity@5G: -55 dBm (VHT80 MCS9)
  • Operating Temperature: -30 ~ 85℃

Software Support

  • Linux, RTOS
