88MW32X 802.11n Wi-Fi® Microcontroller SoC

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The 88MW320/322 Wi-Fi^® Microcontroller system-on-chip (SoC) is a highly integrated, low-power chip with a full-featured microcontroller built using Arm^® Cortex^®-M4F CPU and 802.11 b/g/n Wi-Fi^®. Designed for a broad array of smart devices for home, enterprise and industrial automation, and smart accessories, the SoC is optimized for:

Ultra low system cost
Low-power operation including enabling battery operated devices
Secure operation
Enabling feature-rich functionality enabling manufacturers to create innovative, differentiated products and services
88MW32x is supported by AWS IoT Starter SDK and MCUXpresso SDK.

Wireless modules based on the NXP 88MW32X are offered by leading module manufacturers.

Data Sheet

Application Notes

Product Details

Block Diagram

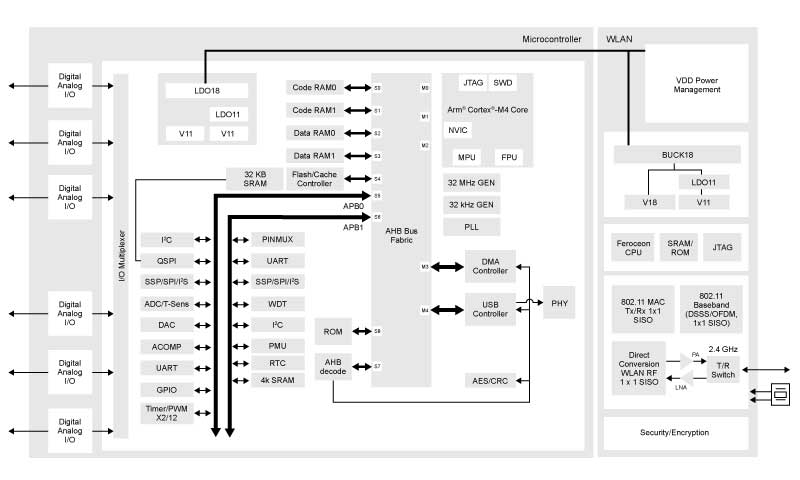

88MW32X Block Diagram

Get diagram PDF

Features

Amazon Alexa Voice Service (AVS) supported
Highly integrated SoC requiring very few external components for a full system operation
Multiple low-power modes and fast wake-up times
Full-featured, single stream 802.11n/g/b WLAN
Improved typical RF performance
High-efficiency PA with a low-power (10 dB) mode
Cortex^®-M4F application CPU for applications with integrated 512KB SRAM and 128 KB mask ROM
Flash Controller with embedded 32 KB SRAM cache to support XIP from external SPI Flash
Secure boot
Unique hardware bit to authenticate SDK with the chipset
Full set of digital and analog I/O interfaces

MCUXpresso Software and Tools

MCUXpresso Config Tools – A comprehensive suite of system configuration tools, including pins, clocks, SDK builder and more.

MCUXpresso SDK – An open-source software development kit (SDK) built specifically for your processor and evaluation board selections.

MCUXpresso IDE – An easy-to-use integrated development environment (IDE) for creating, building, debugging, and optimizing your application.

Partner Modules

88MW320/322

Wi-Fi 4 (802.11n) 2.4 GHz Single Band 1x1 Wireless Microcontroller Hostless

Product	Operating Temp	Antenna Type	Antenna #	Module Type	Module Size	Qualifications	Recommended Host
AW-CU300 V2 AzureWave	-30 to 85	Embedded antenna, U.FL Connector(s)	2	SMD	15 x 23 x 2.35	CE, FCC, NCC, IC, Brazil, China, Japan, Mexico, Argentina	Hostless
AW-CU300A V2 AzureWave	-30 to 85	Embedded antenna, U.FL Connector(s)	2	SMD	28 x 15 x 2.35	CE, FCC, NCC, IC	Hostless
CMWC1ZZABR-107 Murata	-30 to 85	Embedded antenna	1	SMD	22 x 19 x 2.55	FCC/IC/CE	Hostless
WYSACVLAY-WX KAGA FEI (TY)	-30 to 85	Embedded antenna	2	SMD	21.4 x 14.0 x 2.4	FCC, ISE, Japan, CE	Hostless
WYSACVLAY-WZ KAGA FEI (TY)	-30 to 85	Embedded antenna	2	SMD	21.4 x 14.0 x 2.4	FCC, ISE, Japan, CE	Hostless

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

10 documents

Compact List

Wi-Fi/Bluetooth/802.15.4 M.2 Key E Pinout Definition[AN13049]

HTML | PDFMar 17, 2025Rev 6.0
AN12910 - ETSI Adaptivity Test for 88MW32x and 88MW30x - Application note (public)[AN12910]

PDFMay 28, 2021Rev 1
NXP-AN-Designing with 88MW32x[AN12962]

PDFAug 10, 2020Rev 2

88MW320-88MW322 - Wireless Microcontroller - IEEE 802.11n/g/b - Data Sheet (public)[88MW320-88MW322-DS]

PDFJul 18, 2024Rev 8

88MW32x - 802.11n Wi-Fi Microcontroller SoC - Fact sheet (public)[88MW32X-FACT-SHEET]

PDFAug 30, 2021Rev 2

NXP-DB-WMSDKA-V6.0.r7.p3 Documentation[WMSDKA_V6_0_R7_P3_DOCUMENTATION]

GZJul 9, 2021Rev v6.0.r7.p3
NXP-EB-WMSDKA-V6.0.r7.p2 Documentation[WMSDKA-V6-0-R7]

GZAug 12, 2020Rev 1

NXP-UM-88MW32x Labtool User Guide[UM11449]

PDFAug 4, 2020Rev 1
NXP – UM – 88MW32x Reference Design User Guide[UM11457]

PDFAug 4, 2020Rev 1

Getting Started with Matter Reference Kit - User manual (restricted)[UM11857]

PDFDec 21, 2022Rev 1

Design Resources

Design Files

Quick reference to our design files types.

4 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Design Files - miscellaneous
Development Tool Package for MCUXpresso SDK

ZIPRev V1.0Feb 25, 2021 14:39:0073.9 KBMCUXDSK-V1

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
NXP-AB-88MW3xx-V3 Design Package

ZIPRev 1Aug 5, 2020 13:06:002.4 MBAB-88MW3xx-V3
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
NXP-RD-88MW322-QFN-1B-2A Design Package

ZIPRev 1.0Jul 21, 2020 12:50:001.4 MBRD-88MW322-QFN-1B-2A-V1
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
NXP-RD-88MW320-QFN-1B-2A Design Package

ZIPRev 1.0Jul 21, 2020 12:50:001.3 MBRD-88MW320-QFN-1B-2A-V1
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 7 hardware offerings

Evaluation and Development Boards
Wi-Fi^® Microcontroller PlatformFeatured
Active

WI-FI-MICROCONTROLLER-PLATFORM
Evaluation and Development Boards
88MW32X AWS IoT Starter KitFeatured
Active

88MW32X-AWS-IOT-STARTER-KIT
Emulators, Probes, and Programmers
Universal Multilink Development Interface
Active

UMultilink
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
PEmicro Cyclone programmer
Active

CYCLONE
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface
Active

U-MULTILINK-FX
Evaluation and Development Boards
Evaluation Board for AW-CU300 V2

AW-CU300-EVB

Show All

4 hardware offerings

Module
WKM320AA1

CPU Embedded Wireless LAN module supports IEEE802.11b/g/n. It offers sufficiently large memory for system software. It has incorporated antenna and radio regulatory appro...

By KAGA FEI Co., Ltd. Gold Partner
Module

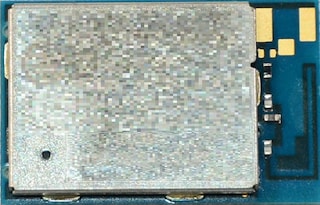

Type ABR: 802.11b/g/n Wi-Fi + MCU Module

Type ABR is a small module (integrated PCB antenna) based on NXP 88MW320 (wireless microcontroller), supporting Wi-Fi 802.11 b/g/n up to 72.2 Mbps PHY data rate; with an ...

By Murata Manufacturing Co., Ltd. Gold Partner
Module

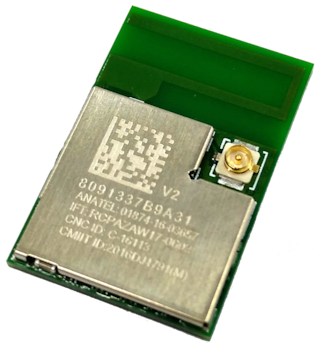

AW-CU300 V2

802.11b/g/n 1x1 + MCU Module

By AzureWave Technologies, Inc. Gold Partner
Module

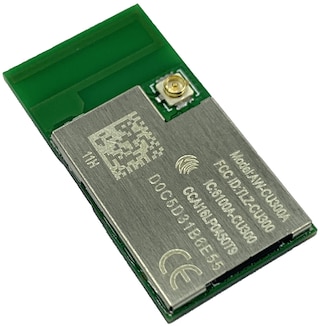

AW-CU300A V2

Wi-Fi 4 WLAN Microcontroller Module

By AzureWave Technologies, Inc. Gold Partner

To find additional partner offerings that support this product, visit our Partner Marketplace.

Software

Quick reference to our software types.

2 software files

Middleware
NXP-WMSDKA-V6.0.r7.p3 Bundle

GZRev v6.0.r7.p3Jul 9, 2021 14:15:0039782 KBWMSDKA_BUNDLE-V6_0_R7_P3

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Middleware
NXP-WMSDKA-V6.0.r7.p2 Bundle

GZRev V6.0 r7Aug 12, 2020 10:33:0042.0 MBWMSDKA-V6_0-r7

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Note: For better experience, software downloads are recommended on desktop.

Engineering Services

To get further assistance directly from NXP, please see our Engineering Services.

2 engineering services

Independent Design House (IDH)
Hardware Engineering

By Sintecs BV GoldHQ: Hengelo, NetherlandsSupporting Regions: EMEA, Americas, APAC
Cloud
IoT and Engineering Design services, Android and Linux Design Services

By H&D Wireless Connectivity AB GoldHQ: Kista, SwedenSupporting Regions: EMEA, Americas, APAC

To find additional partner offerings that support this product, visit our Partner Marketplace.

Training

1 trainings

On-Demand
The Growing Demand for Wi-Fi^® in IoT

23 minEnglish Level: Beginner

Account Required
