Arm^® Cortex^®-M4|Kinetis KW2xD 2.4 GHz 32-bit MCUs

Note: JN5189/88T is preferred for any new new Zigbee®, Thread design. No new software releases planned

The Kinetis^® KW2xD wireless MCU provides a low-power, compact device with integrated IEEE 802.15.4 radio, targeting control and monitoring applications for home and building automation including appliances, access control, climate control, energy management, lighting, safety and security. The KW2xD supports Thread, a lightweight, low latency IPv6 mesh networking stack, specifically designed to meet the requirements of next generation wireless networks. More information on Thread can be found here

Provides enough memory to run complicated protocol stacks and user applications on a single IC
Protects code and data from unauthorized access or modification
Enables a set of specialized operations to improve throughput of encryption/decryption operations
Significantly reduces power consumption and extends battery life

Data Sheet

Reference Manual

Product Details

Block Diagram

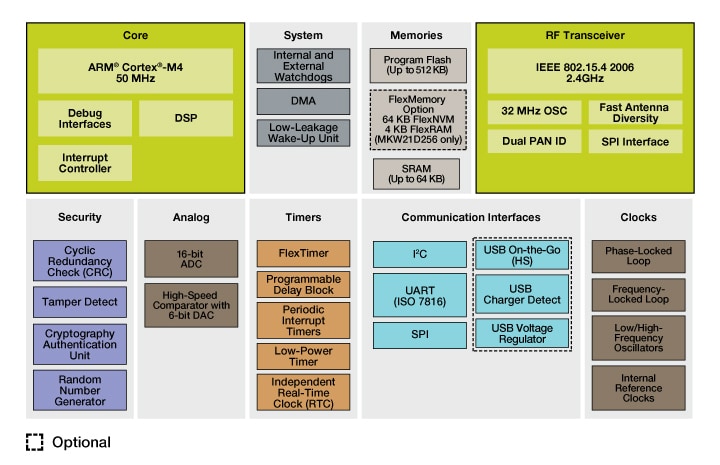

Kinetis W Series KW2x MCUs Block Diagram

Get diagram PDF

Features

Processing Performance

Up to 50 MHz Arm^{^®} Cortex^®-M4 core with 16-channel-DMA

Memory

512 KB Flash and 64 KB RAM or
256 KB Flash and 32 KB RAM with:
- 64K FlexNVM (MKW21D256 only) and
- 4k bytes of enhanced EEPROM/FlexRAM

Connectivity

SPI (1)
UART (2)
I²C (2)
USB FS OTG (KW22 and KW24)

Mixed Signal

8-channel 16-bit SAR ADC
6-bit DA

Security and tamper detect

Cryptography Acceleration Unit (CAU)
AES encryption (FIPS 140)
External tamper detect
32-bit CRC

RF Features

Highly integrated 2.4 GHz RF transceiver
802.15.4 Packet processor
Supports single ended and diversity antennas
Dual PAN support
Programmable output power -30 to +8 dBm
Sensitivity -102 dBm
TX 17mA @ 0dBm (CPU sleep)
RX 19mA (CPU sleep)

Low Power operation

1.8 to 3.6 volts
Low-voltage detection
Multiple low power modes

System

Real-Time Clock (RTC)
In-circuit debug and Flash programming
Up to 24 GPIO
Multiple KBI
Operating temperature of –40°C to 105°C

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-10 of 28 documents

Compact List

Thread Large Network[AN12099]

PDFDec 12, 2017Rev 0
Wireless Coexistence in the 2.4 GHz Band[AN5185]

PDFSep 17, 2015Rev 0
Power Management for Kinetis and ColdFire+ MCUs[AN4503]

PDFApr 6, 2015Rev 2
AN4857 - Low-Power Modes on MKW2x Family[AN4857]

PDFOct 17, 2014Rev 2
Power supply options for Tower development plaftorm[AN4649]

PDFSep 23, 2014Rev 0.1
Hardware Design Considerations for MKW2x IEEE 802.15.4 Devices[AN4957]

PDFJul 18, 2014Rev 0.0
Freescale 802.15.4 MAC Security Setup[AN4973]

PDFJul 17, 2014Rev 0
I2C non-blocking communication[AN4803]

PDFOct 21, 2013Rev 0
USB Mass Storage Device (MSD) Host Bootloader[AN4368]

PDFDec 6, 2012Rev 1
USB device firmware update (DFU) for Kinetis MCUs[AN4370]

PDFOct 7, 2012Rev 1
Using Kinetis DMA and GPIO to emulate timer functionality[AN4419]

PDFSep 27, 2012Rev 0
Using CMSIS-DSP Algorithms with MQX and Kinetis^® MCUs[AN4489]

PDFMar 20, 2012Rev 0
Low-Power management with MQX RTOS on Kinetis MCUs[AN4447]

PDFJan 30, 2012Rev 0
Prototyping with Tower System MCU development board[AN4390]

PDFNov 11, 2011Rev 0
Using WinUSB with MCU integrating USB device controller[AN4378]

PDFOct 20, 2011Rev 0
USB Mass Storage Device (MSD) Bootloader[AN4379]

PDFOct 17, 2011Rev 0

Software files for Application Note AN4419[AN4419SW]

ZIPSep 27, 2012Rev 0
Software for AN4368[AN4368SW]

ZIPSep 28, 2011Rev 0

MKW2x Data Sheet: Supports MKW24D512V, MKW22D512V, MKW21D512V, and MKW21D256V Products[MKW2XDXXX]Featured

PDFJun 12, 2016Rev 2

Kinetis KW2x Wireless MCUs - Fact Sheet[KNTSKW2XFS]Featured

PDFOct 20, 2015Rev 4

BeeStack™ Software Reference Manual for ZigBee 2007[BSSRMZB2007]

PDFJan 20, 2016Rev 1.3
BeeStack BlackBox ZTC Reference Manual[BSBBZTCRM]

PDFJan 18, 2016Rev 3
USB-KW2x Hardware Reference Manual[USB-KW2XHWRM]

PDFMar 30, 2015Rev 0.3
TWR-KW2x Hardware Reference Manual[TWR-KW2XHWRM]

PDFMar 26, 2014Rev 0
MKW2x Reference Manual: Supports MKW24D512, MKW22D512, MKW21D512, and MKW21D256[MKW2XDXXXRM]Featured

PDFJun 12, 2016Rev 3

FRDM-KW24D512 Freedom Development Platform User’s Guide - User’s Guide[FRDMKW24DUG]

PDFMay 30, 2016Rev 1
Kinetis ZigBee Stack Demo Applications User's Guide[KZSDAUG]

PDFJan 19, 2016Rev 11
OpenSDA on TWR-KW2x Users Guide[TKW2X_OSDAUG]

PDFAug 12, 2014Rev 1.1

Design Resources

Design Files

Quick reference to our design files types.

4 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Printed Circuit Boards and Schematics

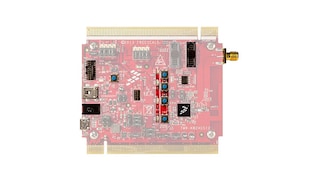

TWR-KW21D256 Reference Design

ZIPRev CJan 14, 2014 00:00:008.5 MBTWR-KW21D256_PCBRD

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
TWR-KW24D512 Reference Design

ZIPRev CJan 14, 2014 00:00:008.4 MBTWR-KW24D512_PCBRD

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics

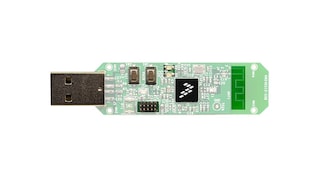

USB-KW24D512 Reference Design
