A2I09VD030N|575-1300 MHz, 4 W Avg, 48 V

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The A2I09VD030N wideband integrated circuit is designed with on-chip matching that makes it usable from 575 to 1300 MHz. This multi-stage structure is rated for 48 to 55 V operation and covers all typical cellular base station modulation formats.

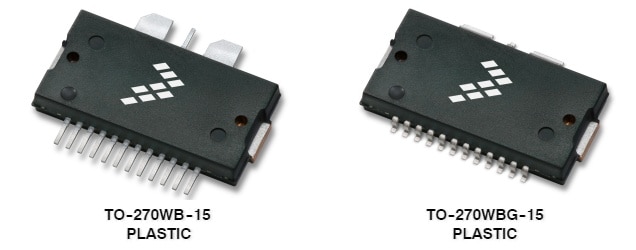

See product image

Data Sheet

Application Notes

Product Details

Features

On-chip matching (50 ohm input, DC blocked)
Integrated quiescent current temperature compensation with enable/disable function
Designed for digital predistortion error correction systems
Optimized for Doherty applications
RoHS compliant

RF Performance Tables

900 MHz

Typical Single-Carrier W-CDMA Performance: V_DD = 48 Vdc, I_DQ1(A+B) = 46 mA, I_DQ2(A+B) = 154 mA, Pout = 4 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.

Frequency	G_ps (dB)	PAE (%)	ACPR (dBc)
920 MHz	34.4	19.9	–45.0
940 MHz	34.5	20.0	–44.6
960 MHz	34.3	19.8	–44.3

700 MHz

Typical Single-Carrier W-CDMA Performance: V_DD = 48 Vdc, I_DQ1(A+B) = 50 mA, I_DQ2(A+B) = 150 mA, Pout = 4 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.

Frequency	G_ps (dB)	PAE (%)	ACPR (dBc)
728 MHz	30.9	19.6	–44.7
748 MHz	31.1	19.5	–45.5
768 MHz	31.2	19.3	–46.2
