24-bit Dual-Core Symphony® DSP
- This page contains information on a product that is not recommended for new designs.
The Symphony® audio DSP56724 is part of the DSP5672x family of multi-core 24-bit processors, giving our customers flexibility and scalability in their product design. The DSP56724 retains code compatibility with Our popular DSP56000 and DSP56300 core families of DSPs and provides pin and peripheral compatibility with the DSP56720.
The Symphony audio DSP56724 excels at audio processing for consumer and professional audio applications requiring high million instructions per second (MIPS). For consumer applications, higher MIPS and memory requirements are driven by a multitude of complex audio processing algorithms to provide a more comprehensive experience with home entertainment systems. In addition, the DSP56724 provides an external memory controller to expand memory off-chip to support lip sync delays required by some consumer applications.
For professional audio applications that require audio recording, signal processing and digital audio synthesis, the DSP56724 offers a high-performance solution without sacrificing cost savings or power consumption and can replace a multi-DSP design with a single-chip solution.
The DSP56724 provides a wealth of on-chip audio processing functions via a plug-and-play software architecture system that has the ability to support audio decoding algorithms as well as various post processing functions.

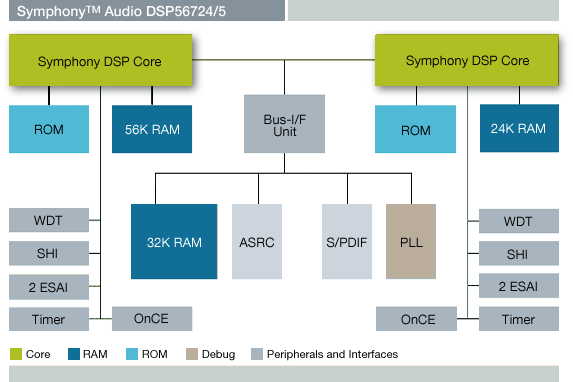

Product Details
Features
- Dual DSP56300 cores for high performance—250 MHz per core for 500 MIPS performance at a consumer temperature range
- 112K x 24-bit words RAM
- Asynchronous sample rate converter (ASRC) to allow multiple data rates in a system
- Integrated S/PDIF transceiver to reduce system cost and complexity
- External memory controller (EMC) provides for memory expansion to cost-effective SDRAM and flexibility in system design by providing memory expansion for one or both cores
- Enhanced serial audio interface (ESAI)—four modules to allow multiple sources
- Dual serial host interfaces (SHI) that support SPI or I²C protocols which provide high-speed communication between the DSP and other integrated circuits in the system
- Dual triple timer modules for a flexible, programmable timer system
- Dual hardware watchdog timers (WDT) allow for recovery from runaway code
- 144LQFP package
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
Related products
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
8 documents
Compact List
Application Note (1)
Brochure (1)
Data Sheet (1)
Fact Sheet (1)
-
Symphony®™ Audio DSP56724/DSP56725[DSP56724FS]Featured
Product Brief (1)
-
Symphony®™ DSP56724 Multi-Core Audio Processor Product Brief[DSP56724PB]Featured
Reference Manual (2)
User Guide (1)
Design Resources
Hardware
Quick reference to our
board types.
5 hardware offerings
-

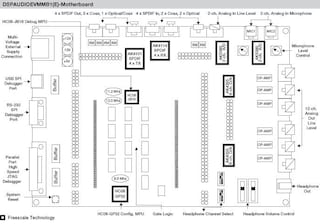

Evaluation and Development BoardsDSPAUDIOEVM Evaluation Module Featured
