TJA1100, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver
- This page contains information on a product that is not recommended for new designs.

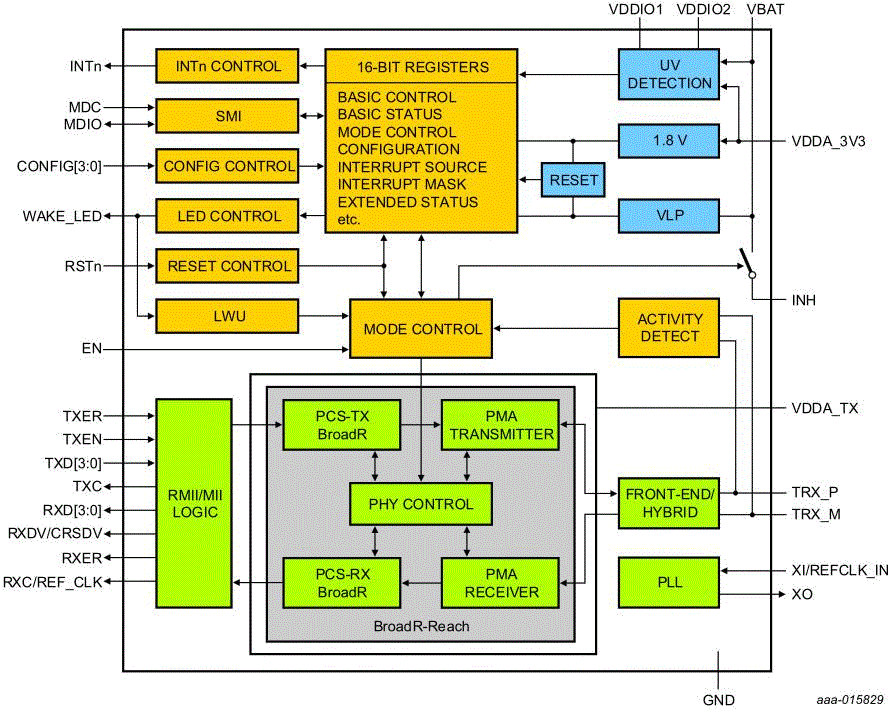

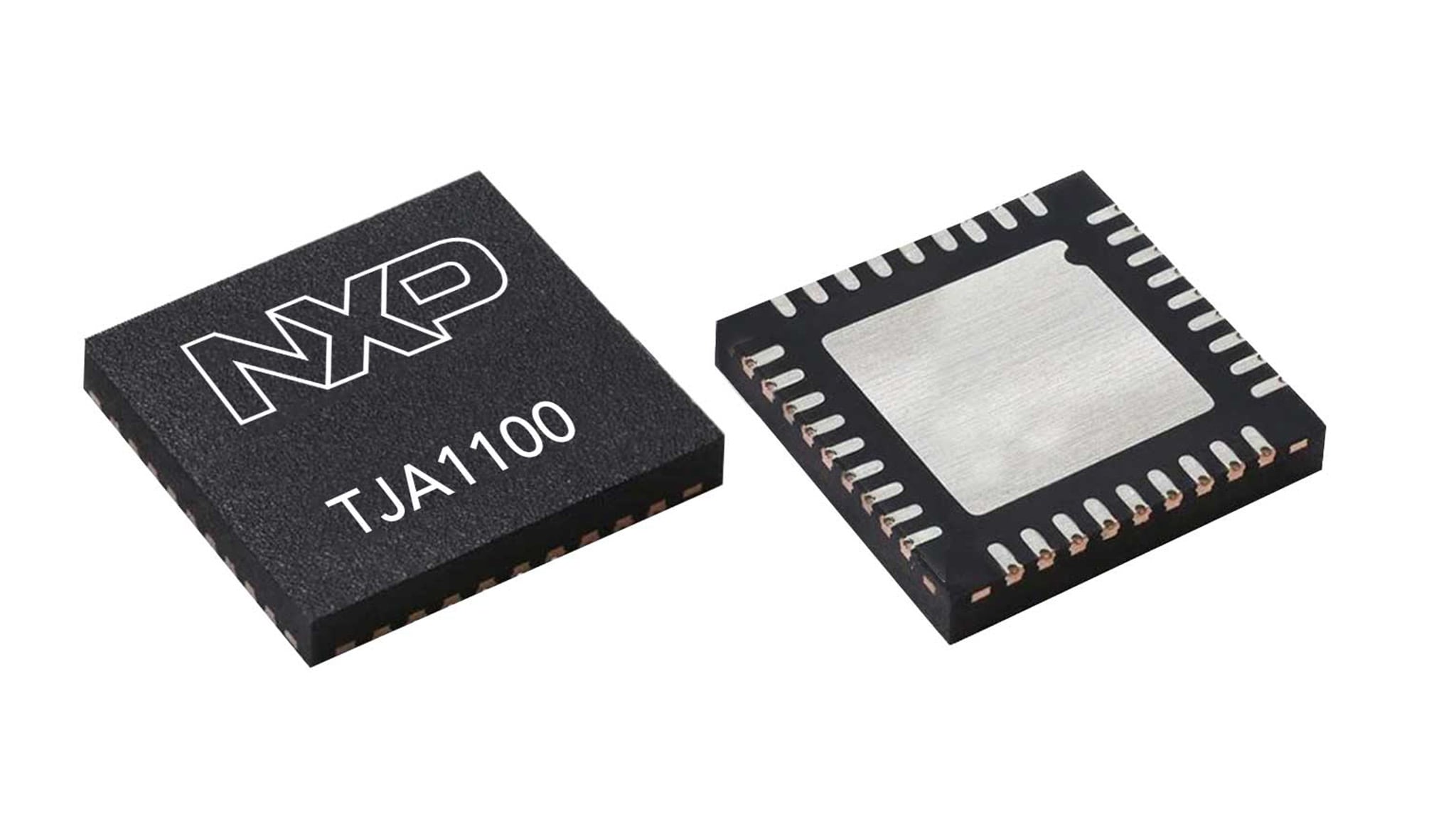

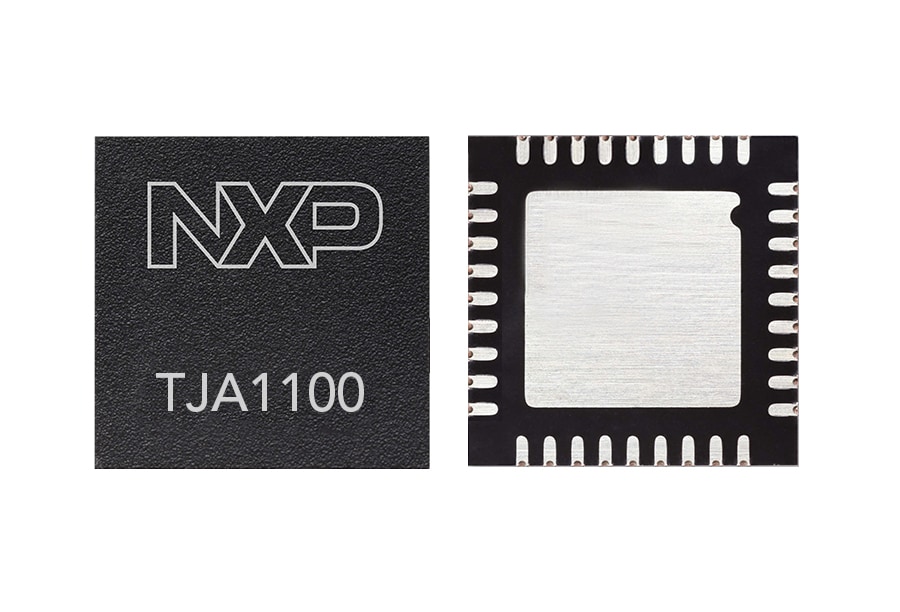

The TJA1100 is IEEE 100BASE-T1 compliant. The single port Ethernet PHY Transceiver is designed and fully qualified for automotive applications. It supports 100 Mbit/s transmit and receive capability up to at least 15 m of unshielded twisted pair (UTP) cables. The TJA1100 enables lowest system cost and fulfills the demanding area and heat constraints of next-generation electronic control units (ECU) and sensors for Advanced Driver Assistance System (ADAS). Qualified in compliance with AEC-Q100 Grade 1, the TJA1100 is natively designed for the smallest package footprint, minimal external component overhead, and low power.
Product Details
Features
Dedicated PHY enable/disable and low-power sleep modes
- Energy efficient system design
- Flexible, on the fly control of low power modes by the application
IEEE 100BASE-T1 compliant PHY transceiver
- Future proof interoperability to any compliant PHY
- Optimized for capacitive coupling to unshielded twisted pair cable
Enhanced PAM-3 pulse shaping technology and adaptive receive equalizer
- Supports cable length of up to at least 15 min cars
- Optimized RF emission levels according to OEM standards
Robust local and remote wake-up functionality
- Triggered by a register setting or by the remote node via data line
Product Programs
Related products
SJA1105EL: Five- Ports AVB Automotive Ethernet Switch
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-10 of 11 documents
Compact List
Application Note (2)
Brochure (1)
-
Automotive Ethernet Switches and PHY Transceivers Brochure[AUTO-ETHERNETBR]
Data Sheet (1)
Fact Sheet (1)
-
TJA1100 PHY Automotive Ethernet[TJA1100A4FS]
Package Information (1)
Packing Information (1)
Selector Guide (1)
-
Analog Automotive and Industrial Selector Guide[INDCONTANLPRDFL]
User Guide (1)
White Paper (2)
-
Vehicle-to-Cloud Connectivity to Extend EV Range - White Paper[VEHCLOUDCONWPA4]
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 10 hardware offerings
-

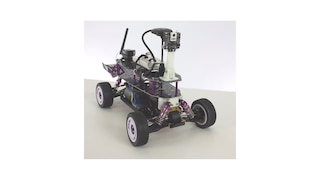

Complete SolutionMobile Robotics Buggy3 Kit Including RDDRONE-FMUK66 and Peripherals
-
-
Complete SolutionEV Power Inverter Control Reference Platform Gen 2
Active -

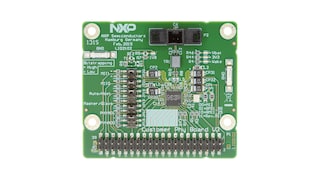

Evaluation and Development BoardsTJA1100 Automotive Ethernet 100BASE-T1 PHY Evaluation Board
