The S12G is an optimized, 16-bit microcontroller product line focused on low cost, high performance and low pin count. The S12G is suited for generic automotive and industrial applications requiring CAN or LIN/SAE J2602 communication.

The S12G delivers all the advantages and efficiencies of a 16-bit MCU while retaining the cost effectiveness, power consumption, EMC and code-size efficiency advantages currently enjoyed by users of our existing 8-bit and 16-bit MCU families.

Data Sheet

Reference Manual

Product Details

Block Diagram

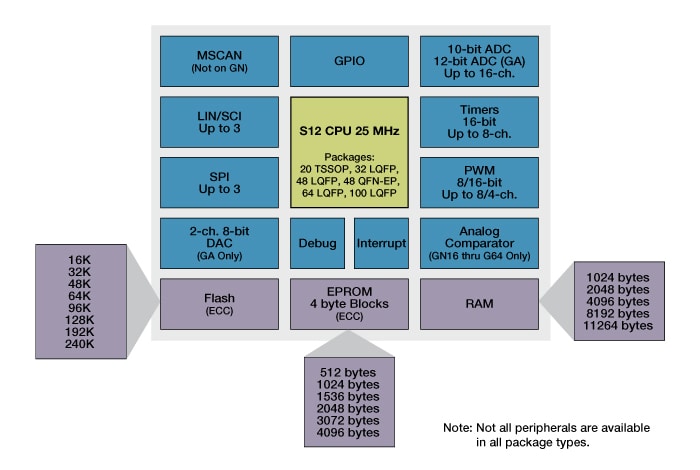

S12G Microcontroller Block Diagram

Get diagram PDF

Features

S12 CPU core, 25 MHz bus
Up to 240 KB on-chip flash with ECC
Up to 4 KB EEPROM with ECC
Up to 11 KB on-chip SRAM
Up to one multi-scalable controller area network (MSCAN) module
- Supporting CAN protocol 2.0 A/B
Up to three serial communication interface (SCI) modules
- Supporting LIN communications
Up to three serial peripheral interface (SPI) modules
Precision fixed voltage reference for analog-to-digital conversion (ADC)
1 MHz internal oscillator
On-chip voltage regulator for input supply and internal voltages
This product is included in NXP^® product longevity program, with assured supply for a minimum of 15 years after launch

S12G Family Comparison table

	EEPROM	Internal RAM	Internal Flash	Serial Interface Type	16-bit Timers	ADC Bits/Channels	Package Description
S12GN16	0.5 KB	1 KB	16 KB	SCI SPI	Timer Channels: 6 Number of Timers: 1	10	LQFP 32 771.4P0.8 LQFP 48 771.4P0.5
S12GN32	1 KB	2 KB	32 KB	SCI SPI	Timer Channels: 6 Number of Timers: 1	10	LQFP 32 771.4P0.8 QFN-EP 48 7.0SQ1.0P0.5 LQFP 48 77*1.4P0.5
S12G48	1.5 KB	4 KB	48 KB	CAN SCI SPI	Timer Channels: 6 Number of Timers: 1	10	LQFP 32 771.4P0.8 LQFP 64 10101.4P0.5 LQFP 48 771.4P0.5
S12G64	2 KB	4 KB	64 KB	CAN SCI SPI	Timer Channels: 6 Number of Timers: 1	10	LQFP 48 771.4P0.5 LQFP 64 10101.4P0.5 LQFP 32 771.4P0.8
S12G96	3 KB 4 KB	8 KB	96 KB	CAN SCI SPI	Timer Channels: 8 Number of Timers: 1	10	LQFP 64 10101.4P0.5 LQFP 48 771.4P0.5 LQFP 100 14141.4P0.5
S12G128	4 KB	8 KB	128 KB	CAN SCI SPI	Timer Channels: 8 Number of Timers: 1	10	LQFP 64 10101.4P0.5 LQFP 100 14141.4P0.5 LQFP 48 771.4P0.5
S12G192	4 KB	12 KB	192 KB	CAN SCI SPI	Timer Channels: 8 Number of Timers: 1	10 12	LQFP 64 10101.4P0.5 LQFP 48 771.4P0.5 LQFP 100 14141.4P0.5
S12G240	4 KB	12 KB 11 KB	240 KB	CAN SCI SPI	Timer Channels: 8 Number of Timers: 1	12 10	LQFP 64 10101.4P0.5 LQFP 48 771.4P0.5 LQFP 100 14141.4P0.5

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Hardware

Quick reference to our board types.

1-5 of 13 hardware offerings

Evaluation and Development Boards

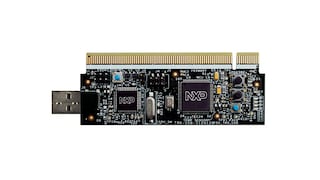

S12G StarterTRAK USB Development SystemFeatured
Active

TRK-USB-S12G128
Evaluation and Development Boards

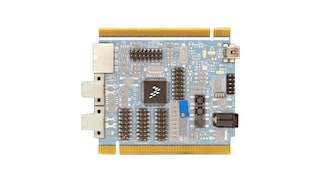

MC9S12G240 Ultra Reliable 16-bit Tower System ModuleFeatured
Active

TWR-S12G240
Evaluation and Development Boards

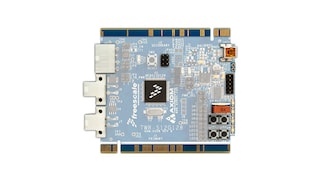

MC9S12G128 Ultra Reliable 16-bit Tower System ModuleFeatured
Preproduction

TWR-S12G128
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
Universal Multilink Development Interface
Active

UMultilink
Emulators, Probes, and Programmers
PEmicro Cyclone programmer
Active

CYCLONE
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface
Active

U-MULTILINK-FX
Evaluation and Development Boards
Load Board for KIT12XS6EVM Lighting
Active

KITLIGHTEVB
Evaluation and Development Boards
S12G128 General Purpose Evaluation Board
Active

DEVKIT-S12G128
Evaluation and Development Boards

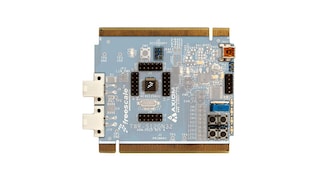

MC9S12GN32 Ultra Reliable 16-bit Tower System Module Demonstration Board
Preproduction

TWR-S12GN32
Evaluation and Development Boards
S12VR64 Relay-based Motor Control Development Board
Active

DEVKIT-S12VR64
Evaluation and Development Boards

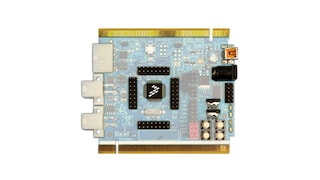

MC9S12G64 Ultra Reliable 16-bit Tower System Module Demonstration Board
