Ultra-Reliable 32-bit MCU for Automotive ADAS and Industrial Ethernet Applications
The MPC560xE family of MCUs enables advanced driver assistance, surround-view, camera-based systems, and industrial applications. MPC560xE MCUs are gateway systems, designed to move data from different sources via Ethernet to a receiving system and vice-versa.
MPC560xE MCUs allow for greater levels of system integration, also helps to enable the miniaturization of camera modules while reducing system costs and time-to-market.
MPC560xE MCUs offers a comprehensive development toolset, designed to simplify and accelerate system design: MPC5604ES includes a software license package consisting of Ethernet streaming and camera application software as well as AUTOSAR® OS.
Disclaimer: Please contact your local NXP sales representative or a NXP authorized distributor to get access to the software.
Product Details
Features
Specifications
- 64 MHz NXP® e200 zen0h core
Memory
- 512k byte Program Flash with ECC
- 4x16k byte Data Flash with ECC
- 96k byte SRAM with ECC
I/O
- 1 x MJPEG® video encoder with image sensor interface supporting up to 1.2MPixel
- 1 x 10/100 Ethernet MAC incl. IEEE 1588 PTP support
- BCM89810 BroadR-Reach® compatible phy (MPC5606E only)
- FlexCAN, LINFlex
- 5V ADC
System
- 3.3V single supply
- 64 pin LQFP package
MPC560xE Comparison Table
| Feature | MPC5604E | MPC5606E (SiP: MPC5604E + Ethernet PHY) |
|
|---|---|---|---|
| Package | LQFP 100 (For SW development only) |
LQFP 64 (Production Package) |
121-pin MAPBGA |
| CPU | e200z0h, 64 MHz, VLE only, no SPE | ||
| Flash with ECC | CFlash: 512 KB (LC) DFlash: 64 KB (LC, area optimized) | ||
| RAM with ECC | 96 KB | ||
| DMA (Direct Memory Access) | 16 channels | ||
| PIT (Periodic Interrupt Timer) | Yes | ||
| SWT (Software Watchdog Timer) | Yes | ||
| FCU (Fault Collection Unit) | Yes | ||
| Ethernet | 100 MB MII | 100 MB MII-Lite | 100 MB MII |
| Video Encoder | 8/12 BPP | ||
| Physical Interface | NA | NA | Broadcom BroadR-Reach BCM89810 |
| Audio Interface | 6x Stereo (4x synchronous + 2x synchronous/asynchronous) | ||
| ADC (10-bit) | 4 channels + VDD_IO + VDDCore + TSens + VGate Current | ||
| Timer I/O (eTimer) | 6 channels | ||
| SCI (LINFlex) | 2x | ||
| SPI (DSPI) | DSPI_0: 2 chip selects DSPI_1: 2 chip selects DSPI_2: 4 chip selects |
||
| CAN (FlexCAN) | 1x | ||
| I2C (Inter-Integrated Circuit serial interface) | 2x | ||
| Supply | 3.3 V IO 1.2 V core with dedicated ballast source pin in two modes: • Internal ballast • External supply (using power on reset pin) |
||
| Phase Lock Loop (PLL) | FMPLL | ||
| Internal RC Oscillator | 16 MHz | ||
| External Cyrstal Oscillator | 4 MHz–40 MHz | ||
| CRC | Yes | ||
| Debug | JTAG, Nexus2+ | JTAG | JTAG, Nexus2+ |
| Ambient Temperature | –40 °C to +125 °C | -40°C to +105°C | |
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-10 of 39 documents
Compact List
Application Note (16)
-
AN4514: MPC5604E Video Encoder Wrapper – Application Note[AN4514]Featured
Application Note Software (1)
-
Software for AN12080[AN12080SW]
Data Sheet (2)
-
MPC5604E Microcontroller Data Sheet[MPC5604E]Featured
-
MPC5606E, MPC5606E Microcontroller Data Sheet - Data Sheet[MPC5606E]Featured
Errata (5)
-
MPC5604E_2N10D, Mask Set Errata for Mask 2N10D[MPC5604E_2N10D]
-
MPC5604E_1N10D, Mask Set Errata for Mask 1N10D[MPC5604E_1N10D]
-
MPC5606E_2N10D, Mask Set Errata for Mask 2N10D – Errata[MPC5606E_2N10D]
-
Mask Set Errata for Mask 1N10D[MPC5604E_ERRATA_1N10D]
-
Mask Set Errata for Mask 0N10D[MPC5604E_0N10D]
Fact Sheet (2)
-
NXP Automotive Development Platforms – Fact Sheet[AUTOMCUDEVKITFS]
-
Freescale MPC5606E MCU - Fact Sheet[MPC5606EFS]Featured
Product Brief (2)
Reference Manual (3)
Technical Notes (6)
User Guide (2)
-
MPC5606EBUG, MPC5606E Board User Guide - User Guide[MPC5606EBUG]
-
MPC5604EEVB64 Evaluation board User Manual[MPC5604EEVB64UM]
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 8 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
Active -

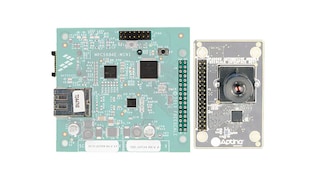

Evaluation and Development BoardsMPC5604E Video Over Ethernet Development KitFeatured
Preproduction -

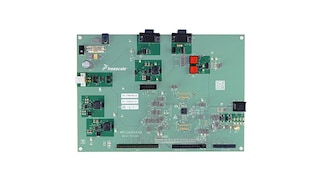

Evaluation and Development BoardsMPC5606E Vehicle Networking Evaluation BoardFeatured
Active -
Additional hardware available. View our featured partner solutions.
-

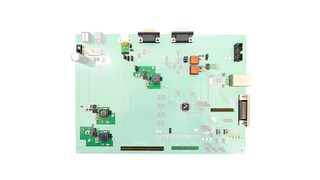

Evaluation and Development BoardsMPC5604E General Purpose Evaluation BoardFeatured
