32-Bit Microcontrollers

  • This page contains information on a product that is not recommended for new designs.

Block Diagram

MPC533

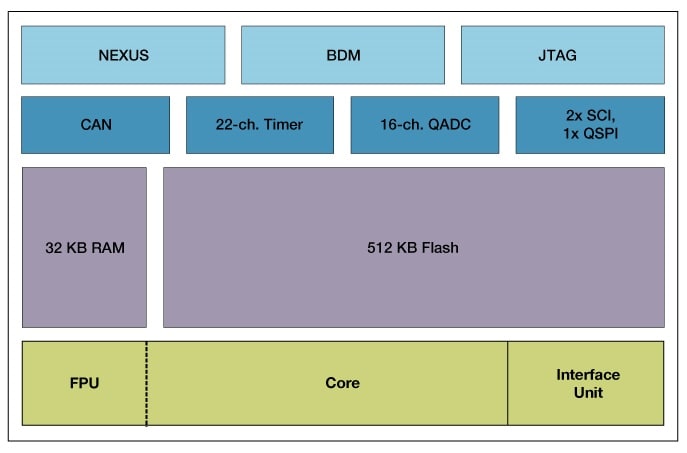

MPC533 Block Diagram

Features

  • 512 KB of flash
  • 32 KB static RAM (CALRAM)
  • Precise exception model
  • Floating point
  • Extensive system development support
  • On-chip watchpoints and breakpoints
  • Background debug mode (BDM)
  • IEEE®-ISTO 5001-1999 NEXUS class 3 debug interface
  • True 5-volt I/O
  • 22-channel MIOS timer (MIOS14)
  • One queued analog-to-digital converter module providing 16 analog channels
  • One CAN module (TOUCAN)
  • One queued serial module with one queued SPI and two SCIs (QSMCM)
