The NXP MC33816 is a programmable gate driver IC for precision solenoid control applications.

The IC consists of five external MOSFET high-side pre-drivers and seven external MOSFET low-side pre-drivers
Provides a flexible solution for MOSFET gate drive with a versatile control and optimized latency time
Gate drive, diagnosis, and protection are managed through four independent microcores, two code RAM and two data RAM banks
The IC contains two internal voltage regulators

View internal diagram

Data Sheet

Application Notes

Product Details

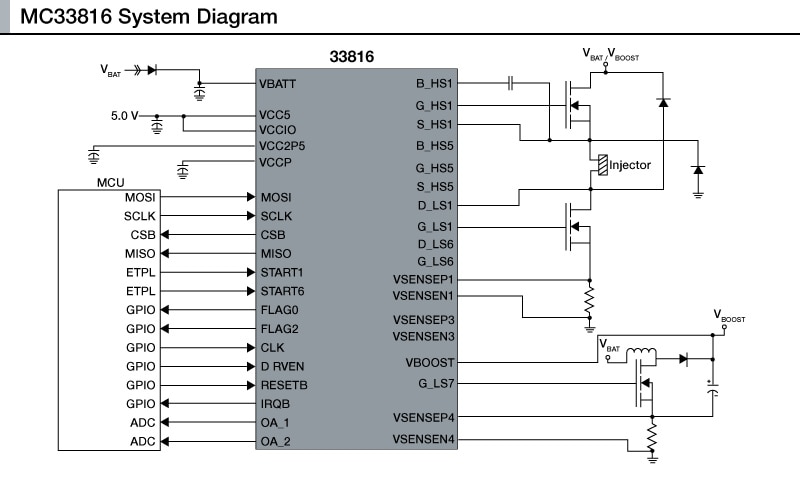

Block Diagram

MC33816 System

Get diagram PDF

Features

Key Features

Battery voltage range, 5.0 V < V_BATT < 32 V
Pre-drive operating voltage up to 72 V
High-side/ low-side pre-drive PWM capability up to 100 KHz (30 nCoulomb)
All pre-drivers have four selectable slew rates
Eight selectable, pre-defined VDS monitoring thresholds
Encryption for microcode protection

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
