H-Bridge Motor Driver, 5-28 V, 5 A, 11 kHz
The NXP® MC33932 has two independent monolithic H-Bridge power ICs in a robust thermally enhanced package.
- Designed primarily for automotive electronic throttle control, but are applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification
- Each H-bridge in the MC33932 is able to control inductive loads with currents up to 5.0 A peak
- RMS current capability is subject to the degree of heatsinking provided to the device package
- Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A.
- Output loads can be pulse width modulated at frequencies up to 11 kHz
- Processor Expert® component for medium voltage H-Bridge products enables rapid embedded application development.
Product Details

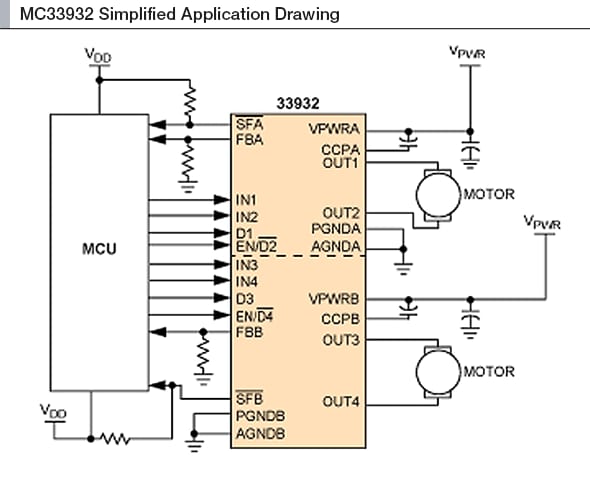

Block Diagram
Features
Key Features
- 8.0 V to 28 V continuous operation (transient operation from 5.0 V to 40 V)
- 235mΩ maximum RDS(ON) @ 150°C (each H-Bridge MOSFET)
- 3.0 V and 5.0 V TTL / CMOS logic compatible inputs
- Over-current limiting (regulation) via internal constant-off-time PWM
- Output short-circuit protection (short to VPWR or GND)
- Temperature-dependant current-limit threshold reduction
- All inputs have an internal source/sink to define the default (floating input) states
- Sleep Mode with current draw < 50μ A (each half with inputs floating or set to match default logic states)
Related products
MC34932/S H-Bridge, Brushed DC Motor Driver, 5-36 V, 5 A, 11 kHz/20 kHz
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
10 documents
Compact List
Application Note (7)
Data Sheet (1)
-
MC33932, 5.0A Throttle Control H-Bridge - Data Sheet[MC33932]Featured
Selector Guide (2)
-
Motor Driver – Selector Guide[MOTORDRIVERFLYR]
-
Analog Automotive and Industrial Selector Guide[INDCONTANLPRDFL]
Design Resources
Hardware
Quick reference to our
board types.
4 hardware offerings
-
Evaluation and Development BoardsEvaluation Kit - USB-SPI Interface, MC68HC908JW32, DongleFeatured
Active -

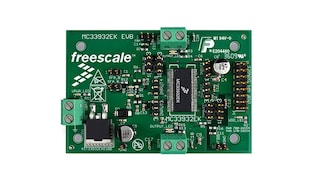

Evaluation and Development BoardsEvaluation Kit - MC33932EK, Dual 5 A Throttle ControlFeatured
Active -

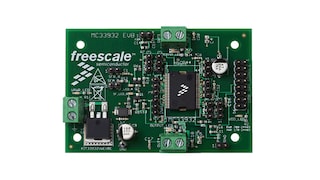

Evaluation and Development BoardsEvaluation Kit for 33932, Dual 5 A Throttle ControlFeatured
