The Kinetis^® KW0x wireless MCU family embeds a rich set of peripherals with a high-performance bi-directional sub-1 GHz radio, capable of operating over a wide frequency range in the license free industrial, scientific and medical (ISM) frequency bands.

Integrates high-performance, low-noise amplifiers and power amplifiers
Runs various types of communication protocols, from proprietary (simple media access controller (SMAC)) to globally standardized (IEEE^® 802.15.4)

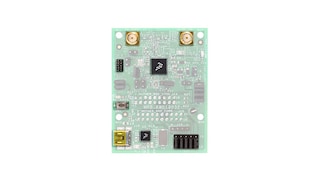

Includes hardware, software, tools and reference designs to help simplify development

Data Sheet

Reference Manual

Product Details

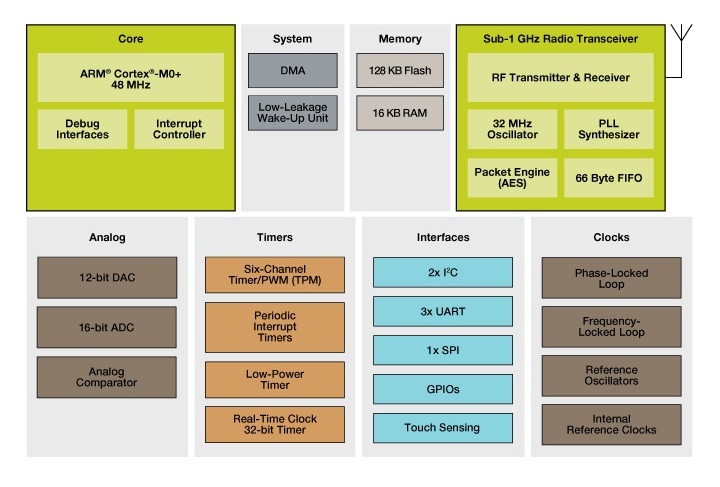

Block Diagram

Kinetis W Series KW0x MCUs Block Diagram

Get diagram PDF

Features

RF Transceiver

Supports 290-340 MHz, 424-510 MHz, and 862-1020 MHz frequency bands
High sensitivity: down to -120 dBm at 1.2 kbps
High selectivity: 80 dB blocking immunity
Low current: Rx = 16 mA
Programmable output: -18 to +17 dBm in 1 dB steps
FSK bit rates up to 600 kbps
FSK, GFSK, MSK, GMSK and OOK modulations
Packet engine with CRC, AES-128 encryption and 66-byte FIFO
Built-in temperature sensor and low battery indicator

MCU

Ultra-low-power 32-bit Arm^{^®} Cortex^®-M0+ core. 2x more CoreMark/mA than the closest8/16-bit architecture. Single-cycle fast I/O access port facilitates bit banging and software protocol emulation, maintaining an 8-bit look and feel?
Multiple, flexible low-power modes including new compute mode which reduces dynamic power by placing peripherals in an asynchronous stop mode
I²C, ADC, DAC, LP timer and DMA support low-power mode operation without waking up the core

Memory

128 KB flash with 64 byte flash cache
16 KB RAM

Peripherals

16-bit ADC with configurable resolution, sample time and conversion speed/power
High-speed comparator with internal 6-bit DAC
12-bit DAC with DMA support

Interfaces

Capacitive touch sense interface supports external electrodes
GPIO with pin interrupt support, DMA request capability and other pin control options
One I²C with DMA support, up to 100Kbps and compatible with MBus V2 features
One LPUART and two UART with DMA support

Operating Voltage and Temperature Range

1.8 to 3.6 V operating voltage with on-chip voltage regulators
Temperature range of -40° C to +85° C

Software

Radio Test Tool
- Run on PC connected through USB
- Allow fast evaluation of the radio performance in a lab environment without need for writing software
- Analysis of TX spectrum (output power, harmonics)
- Modulation scheme impact (GFSK, BT, Mod index) on spectrum
- Help on matching network tuning
- Analysis of RX Sensitivity performance (RSSI, LNA input impedance, OOK threshold, AFC)
SMAC (Simple Media Access Controller)
- Simple communication and test apps based on drivers/PHY utilities available as source code.
- Small footprint (<10 KB)
- Supports point-to-point communication (bi-directional RF communication link), broadcast communication

Protocol Stacks

KW01 Connectivity Software

Kinetis KW01 Connectivity Software Version 1.0.0 includes the following components:

KW01 IEEE^® 802.15.4g sub-Gigahertz PHY implementation v5.1.3
KW01 IEEE^® 802.15.4-2006 and 802.15.4e MAC implementation v5.1.3
KW01 Simple Media Access Controller (SMAC) v3.1.3
KW01-enabled Connectivity Framework v5.1.3
