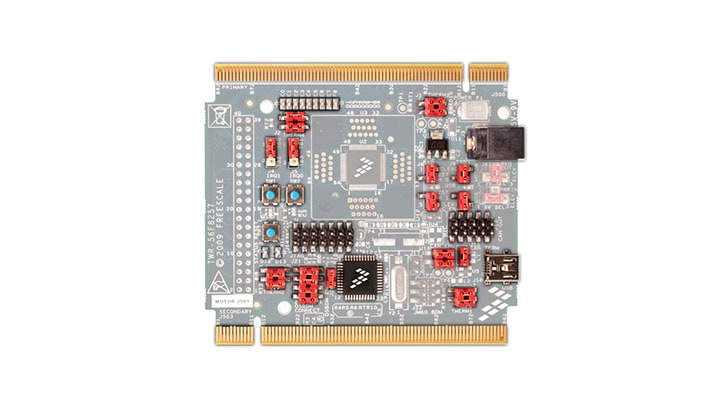

The TWR-56F8257 module is a demonstration and development tool for the NXP^® MC56F8257 DSCs. Ideally suited for motor control applications, it can be combined and used with several peripheral modules in the Tower^® System, including the TWR-MC-LV3PH motor control module or be operated as a standalone tool. It can also be used as the main control board with an APMOTOR56F8000E motor control board.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

56F824X_825X: Digital Signal Controller

Features

Microcontroller

MC9S08JM60

4 MHz crystals provide

USB to SCI bridge
Bootloader enable header
JTAG header for the MC56F8257 DSC with header to disconnect from OSBDM
CAN transceiver, header, and termination
Four thermistors for single-ended or differential analog inputs to the MC56F8257 DSC
Motor control board connector for the APMOTOR56F8000E motor control board
9 LEDs controlled by the MC56F8257 DSC
MC56F8257 Digital Signal Controller (DSC) in a 64 LQFP package

Buy Options

Click to expand

TWR-56F8257
Active
Tower System, DSC Module, MC56F8257, Motor Control.
- TWR-56F8257 board with a MC56F8257 16-bit MCU
- Necessary cables
- DVD with lab tutorials, software, training and collateral
- Quick Start Guide document

$200.00 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors
