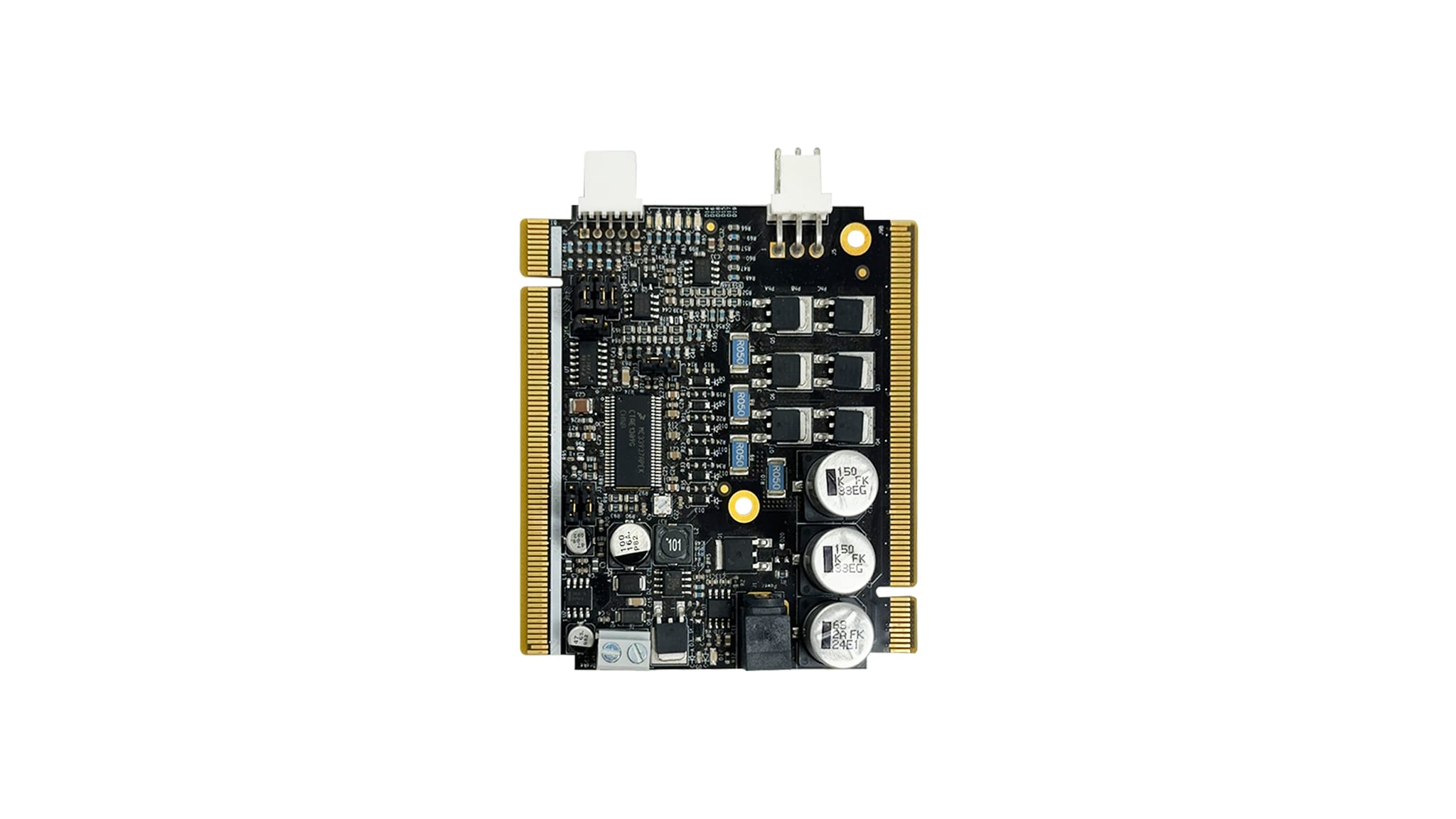

Add 3-phase Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) motor control capabilities to your Tower^® System designs with the NXP^® TWR-MC-LV3PH Low-Voltage 3-Phase Motor Control module.

This module effectively turns a Tower System development tool into a motor control reference design kit that includes a BLDC motor.
As is standard with all Tower System modules, the TWR-MC-LV3PH is interchangeable across the development platform and can be used with many existing modules including: TWR-56F8200, TWR-56F8400, TWR-K60N512, TWR-56F8257, TWR-K40X256, TWR-KV46F150M, TWR-KV31F120M, TWR-KV10Z32 and TWR-KV11Z75M.
Processor Expert^® component support for MC33937 enables rapid embedded application development

Design Files

Software

Product Details

Supported Devices

Power Management

Pre-Drivers

MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Power Management

Power supply voltage input 12-24 VDC extended up to 50 VDC
Output current up to 8 amps
Power supply reverse polarity protection circuitry
Low-voltage onboard power supplies

3-phase bridge inverter (6-MOSFETs)
3-phase MOSFET gate driver with over current and under voltage protection

Connectivity

Motor power and signal connectors

Sensor

3-phase and DC bus-current‐sensing shunts
DC bus-voltage sensing
3-Phase back-EMF voltage sensing circuitry
Encoder/Hall sensor sensing circuitry

User Components

User LED
Power-on LED
6 PWM LED diodes

Kinetis Designs - A Reference Design Library

Leverage this library of resources and reference designs using Kinetis MCUs to help jump-start your next embedded project.

Buy Options

Click to expand

TWR-MC-LV3PH
Active
Tower System, Peripheral Module, Motor Control, Low-Voltage 3-Phase.
- TWR-MC-LV3PH module
- BLDC Motor
- Power Supply
- Quick Start Guide document

$575.00 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors
