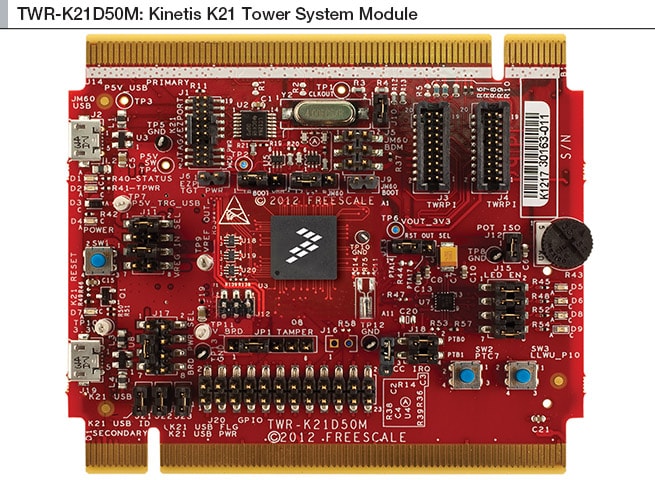

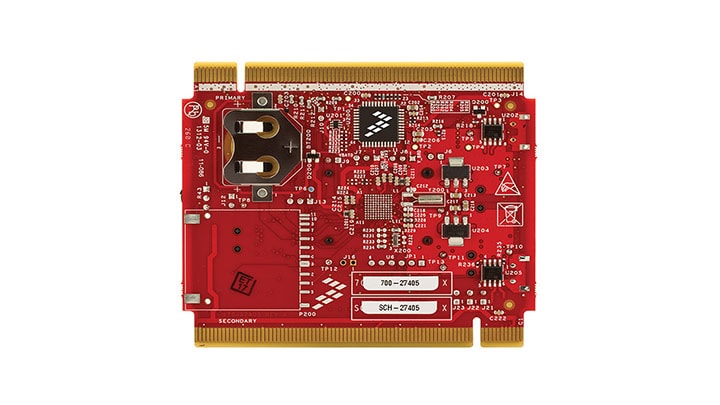

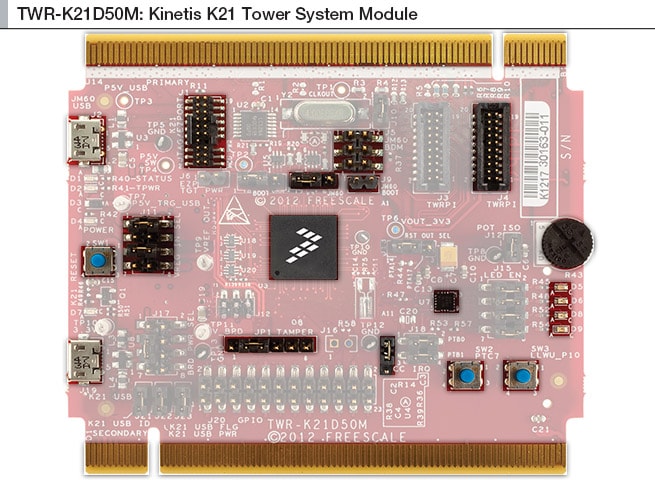

Kinetis K21 50 MHz MCU Tower System Module

TWR-K21D50M Active

Roll over image to zoom in

The TWR-K21D50M module is a development board for the Kinetis® K11, K12, K21 and K22 MCUs, which are ideal for optimized, cost-sensitive security applications.

This Tower® module is designed to enable rapid prototyping and development for applications requiring medium embedded memory densities, security through tamper detect and crypto unit and communication through USB.

The TWR-K21D50M module operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform..

Supported Devices

Processors and Microcontrollers

K1x Mainstream

  • K11_50: Kinetis® K11-50 MHz, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K12_50: Kinetis® K12-50 MHz, Microcontrollers (MCUs) with Optimized Features based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K21_50: Kinetis® K21-50 MHz, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core
  • K22_50: Kinetis® K22-50 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • MK21D MCU: MK21DN512AVMC5 or MK21D512VMC5 in a 121 MAPBGA

Connectivity

  • Standalone USB 2.0 on-the-go (full speed)
  • Tower connectivity for access to UART, SPI, I²C

Debug

  • Integrated, open source JTAG

Sensors

  • MMA8451Q 3-axis accelerometer
  • Tamper pin header
  • Tower® Plug-In (TWRPI)

Components

  • Potentiometer
  • 4 LEDs
  • Pushbuttons
  • Nd battery holder

MCUXpresso Software and Tools

    null

Buy Options

TWR-K21D50M-Image

Click to expand

  • TWR-K21D50M
    Active

  • Tower System Development Board for Kinetis K11, K12, K21 and K22 (50 MHz) MCUs.

    • TWR-K21D50M board with a 512KB flash, 121 MAPBGA, 32-bit MCU
    • Quick Start Guide
    • 2 USB cables (micro, mini)
    • USB Adapter
    • Battery
  • For a quantity of 1
