4-Bit Voltage Level Translator Arduino® Shield Evaluation Board

P3A1604UK-ARD Active

Roll over image to zoom in

The P3A1604UK-ARD is an Arduino board for P3A1604UK allowing connections to I²C, I3C or SPI controllers or targets for voltage translation between VCCA from 0.72 V to 1.98 V and VCCB from 1.62 V to 3.63 V.

Block Diagram

P3A1604UK-ARD

P3A1604UK-ARD Block Diagram
Get diagram PDF

Supported Devices

Analog and Mixed Signal

Voltage Level Translators

  • P3A1604: 4-Bit Dual Supply Bidirectional I3C/I²C-Bus, SMBus and SPI Voltage-Level Translator

Features

  • Onboard LDO’s support many supply rails
  • Easily connects to I3C/I²C signals from the Arduino header (Port A)
  • Onboard I3C temp sensor (P3T1750DP) and I²C GPIO expander (PCA9538) targets on Port B
  • Port A and Port B are available at jumpers to connect to external devices

Buy Options

P3A1604UK-ARD-Image

Click to expand

  • P3A1604UK-ARD
    Active

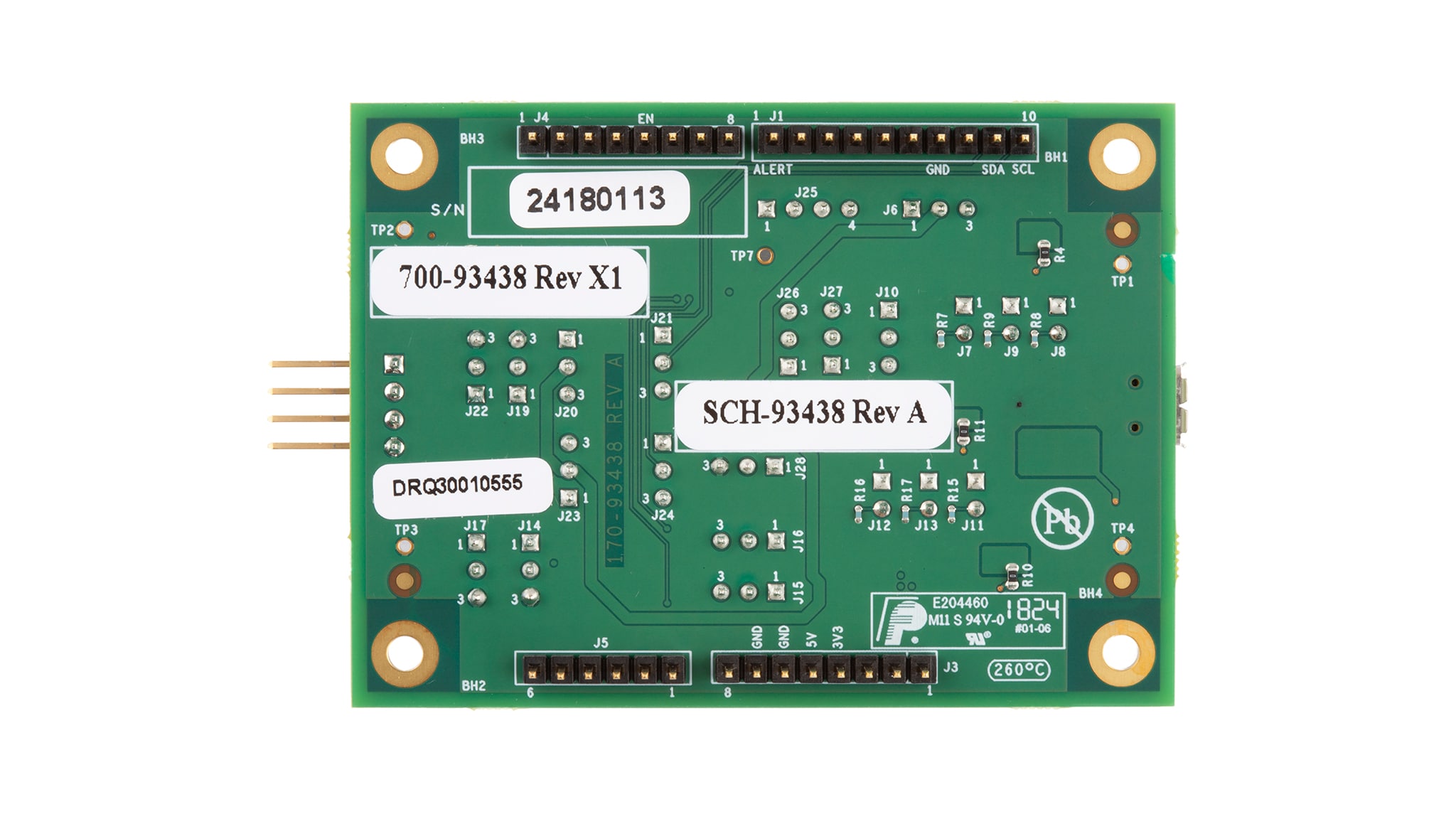

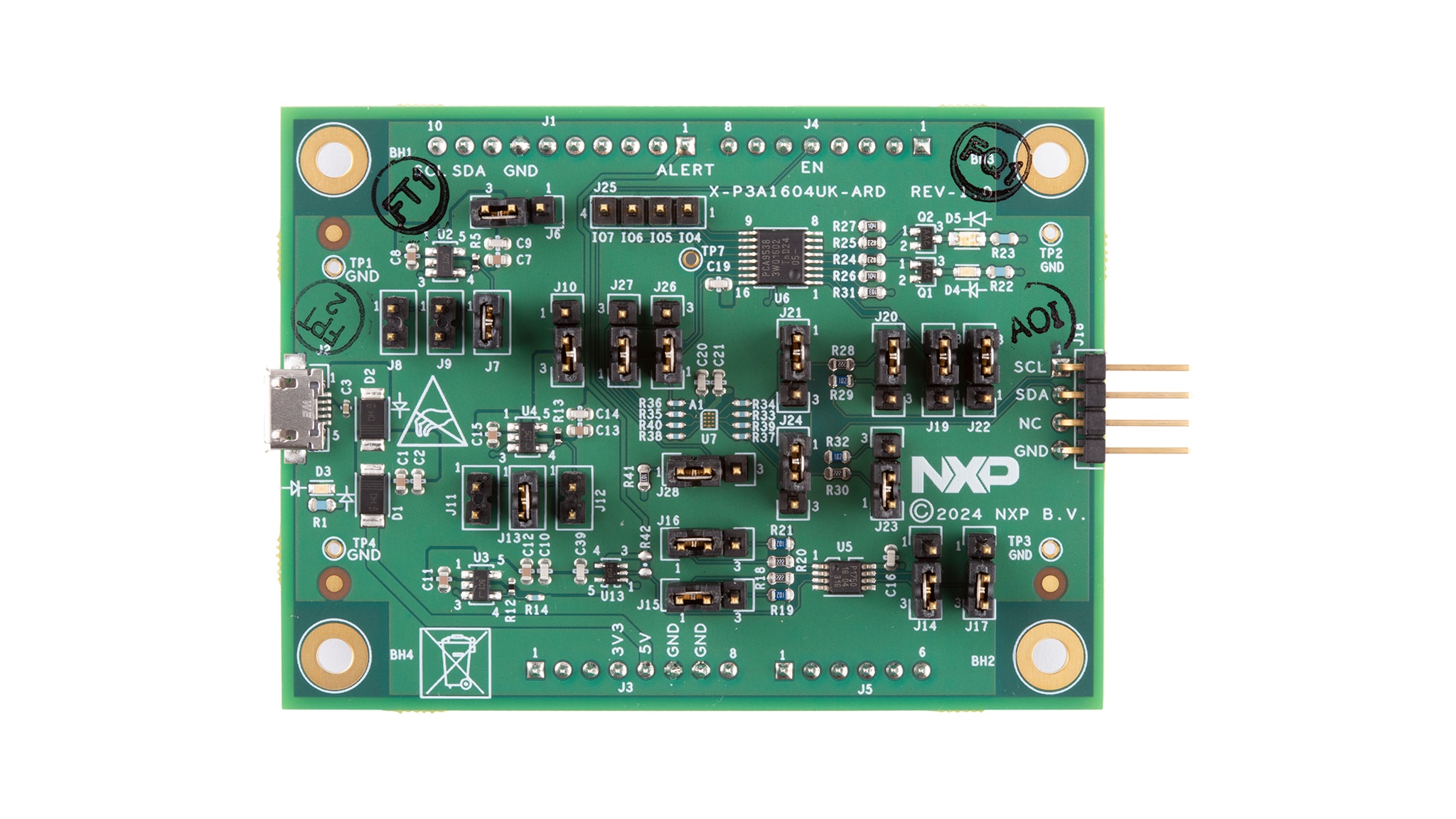

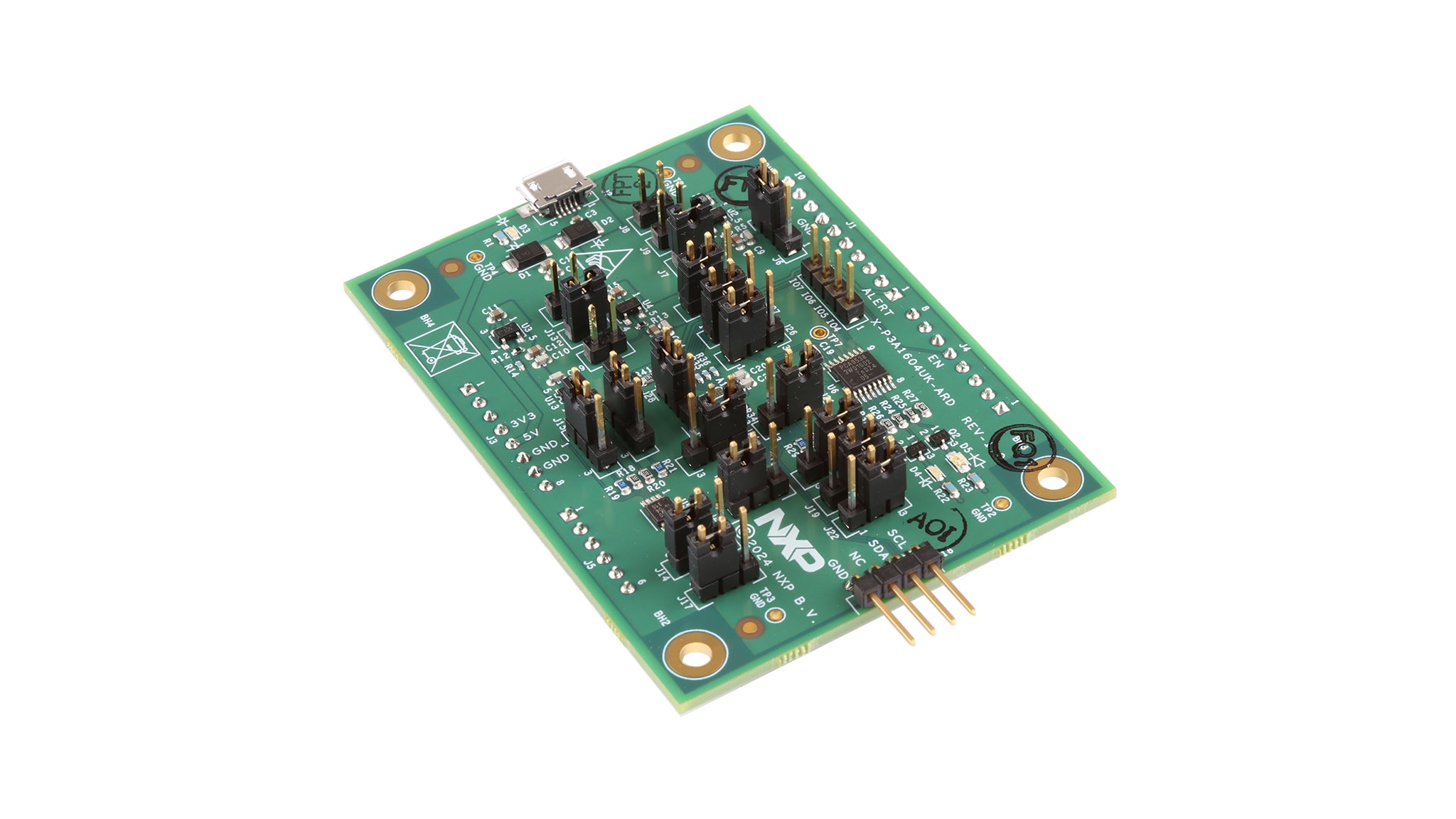

  • 4-Bit Voltage Level Translator Arduino® Shield Evaluation Board.

  • Kit Contains:

    • Assembled and tested evaluation board in an antistatic bag
    • Quick Start Guide
  • $27.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
