Advanced Development Kit for JN5189/88

JN5189-DK006

Roll over image to zoom in

PRODUCT MIGRATION:

The JN5189-DK006 Development Kit has been replaced by the IOTZTB-DK006 Development Kit. The IOTZTB-DK006 supports the JN5189/88 and K32W061/41 wireless MCU portfolios. Please visit the IOTZTB-DK006 website.

The JN5189-DK006 evaluation kit works with the NXP JN518x range of ultra-low-power, high-performance wireless MCUs suitable for ZigBee, Thread and other IEEE 802.15.4-based network applications such as Smart Lighting and Home Automation. JN5189-DK006 is composed of rich components, including a control bridge with an NFC reader, generic switch node, light/sensor node and USB dongle that allows for a small wireless network to be quickly assembled.

Product Details

Features

Processor

    JN5189(T) / 88(T)
  • Up to 48MHz Arm® Cortex®-M4
  • Up to 640 kB flash, up to 152 kB RAM, 128 kB ROM
  • NFC NTAG Option with EEPROM
  • 2.4 GHz IEEE 802.15.4 compliant

Connectivity

  • Standard Arduino compatible header
  • 2 x DMIC
  • USB2UART Converter

Power Management

Flexible power supply option:
  • External DC power supply
  • on-board batteries
  • USB port

Debug

  • High-speed USB based, Link2 debug probe with Arm’s CMSIS-DAP and SEGGER J-Link protocol options.
  • Link2 probe can be used with on-board JN5189 or external target

Wireless

  • IEEE 802.15.4 compatible PCB antenna
  • NFC antenna

Sensors

  • Humidity / temperature sensor
  • Light sensor / Gyroscope / 6-axis sensor

Software and support application development

  • MCUXpresso SDK
  • MCUXpresso IDE
  • MCUXpresso Config Tools

Buy Options

JN5189-DK006-Image

Click to expand

  • JN5189-DK006
    Active

  • Advanced Development Kit for JN5189/88.

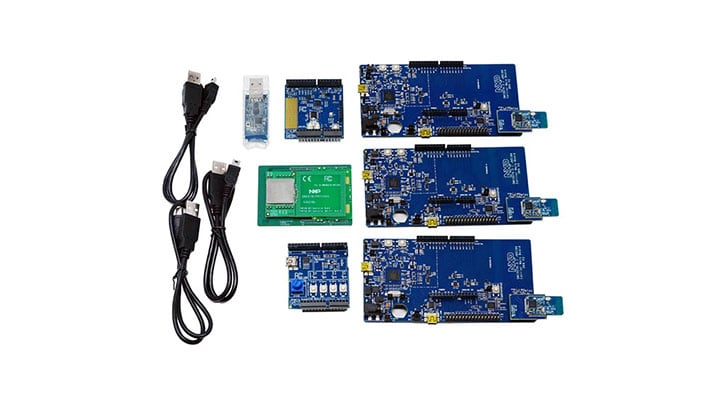

  • Kit contains:

    • Generic Router with NFC Reader
    • Generic Switch Node
    • Light/Sensor node
    • USB dongle
  • For a quantity of 1
Order from distributors
