The Multi-Standard 45W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.
The Multi-Standard Charger supports the following standards:
| Symbol | Parameter | Value |
|---|---|---|
| Vi | input voltage | 90 to 264 V |
| fi | input frequency | 47 to 64 Hz |
| Vo | output voltages | 5 V, 9 V, 12 V |
| Iout | maximum output current | 3 A (@ 5 V), 3 A (@ 9 V), 2.25 A (@ 12 V) |
| Pout | output power [nominal]
[peak] |
27.0 W
28.5 W |
| n | efficiency [average] | > 90 % |
| Pi(noload) | no-load input power | < 30 mW |
| Tambient_adapt | ambient temperature adapter inside casing | -40 °C to 85 °C |
| - | energy standard | ENERGY STAR v6.0,
CoC. tier 2 |
| - | Electro Magnetic Interference (EMI) | CISPR22 compliant,
EN 55022 |
| L x B x H | board dimensions | 48 mm x 41 mm x 21 mm |
| TEA19361 | Primary Flyback Controller | |
| TEA1993 | Synchronous Rectification Controller | |
| TEA19051 | QC4.0/QC4.0+/PPS Controller | PD3.0= 5V/3A, 9V/3A, 12V/2.25A
QC2.0/3.0= 3.3V…. 12V / 27W (max) |

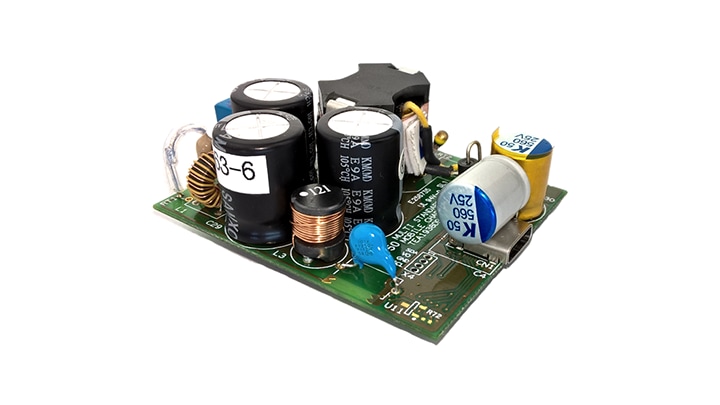

TEA1936XDB1463 - Multi Standard 45W Mobile Charging.
TEA1936XDB1463 - Multi Standard 45W Mobile Charging.
